8.2 Connecting the Mains Secondary Wires
We'll start by connecting the Mains Secondary wires that go to the Filament Supply board.

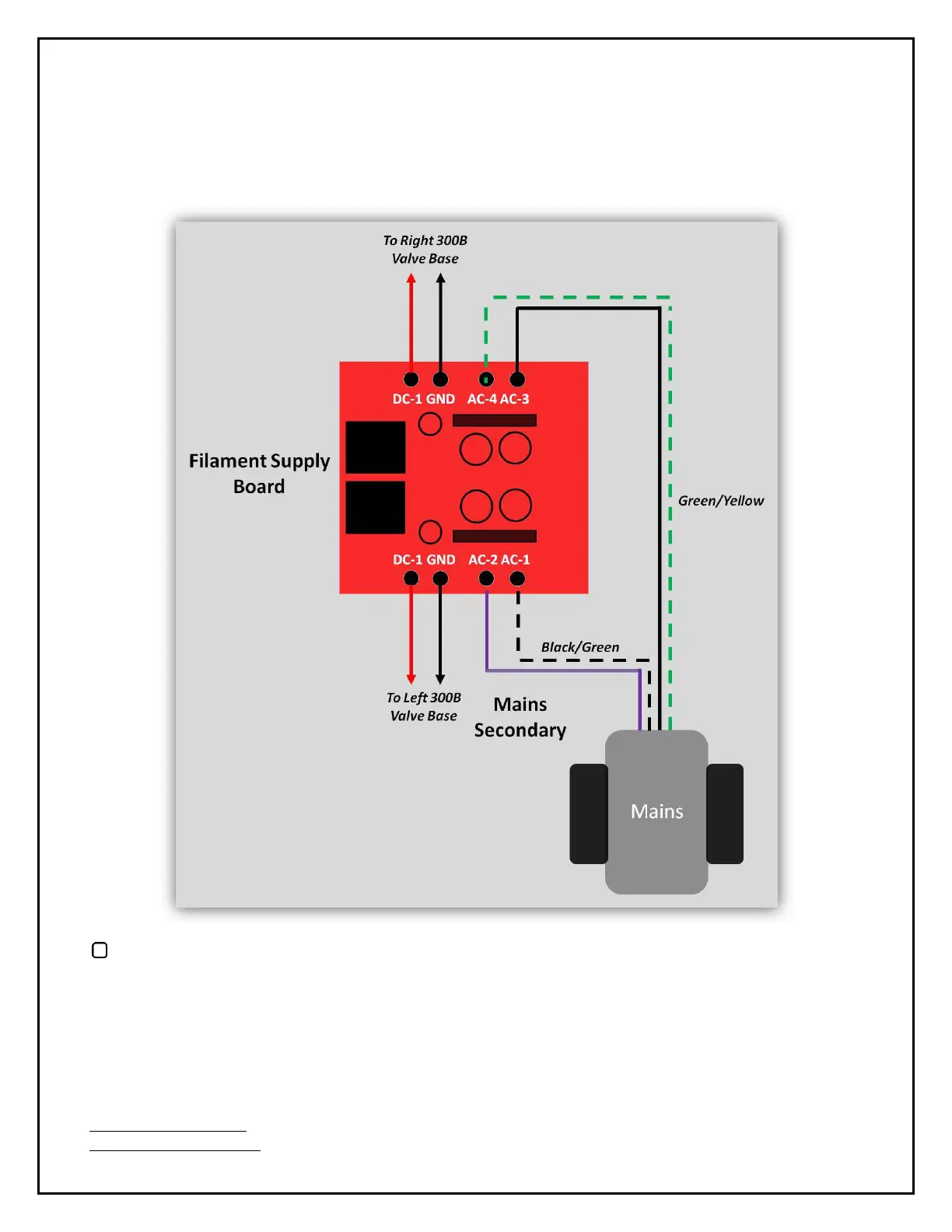

Referencing the following graphic:
Take Bundle 3 (the Black wire, the Purple wire, the Black/Green wire, and the Green/Yellow wire)
and position them for the connections that we'll make. Cut the wires to the lengths needed,
approximately as follows:
Purple and Black/Green wires 5"
Black and Green/Yellow wires 6 1/2"
