Page 46
4.2 Parts List
Quantity
Type
Designator
1
Filament Supply Board
2
Black Heatsinks
4
4700uf 16V Rubycon Electrolytic Capacitors
C1, C2, C3, C4
2
10uf 16V Nichicon Electrolytic Capacitors
C5, C6
2
KBU6J Bridge Rectifiers
B1, B2
2
LM1084 ADJ 5V Regulators
IC1, IC2
2
300R Resistors
R1, R3
2
100R Resistors
R2, R4
4.3 Installing the Resistors
Install the 2 300R Resistors in R1 and R3.
Install the 2 100R Resistors in R2 and R4.

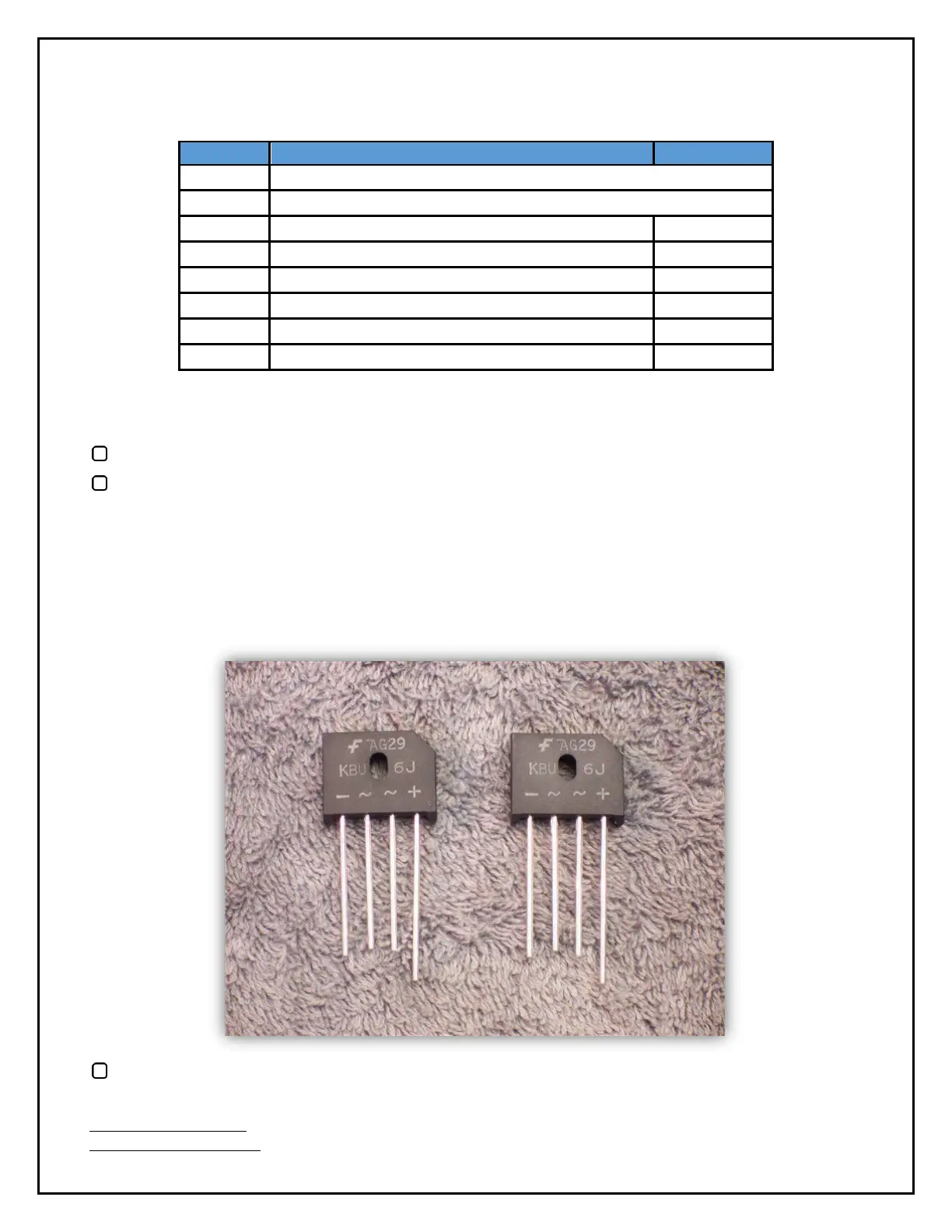

4.4 Installing the Bridge Rectifiers
A Bridge Rectifier accepts an AC voltage and generates a DC voltage which, in this amplifier, is used
as the filament voltage. You'll see a notch on the Bridge Rectifiers (part number: KBU6J): match the
notch with the '+' (POSITIVE) stencil on the board.
Install the 2 KBU6J Bridge Rectifiers at B1 and B2.
