Page 32

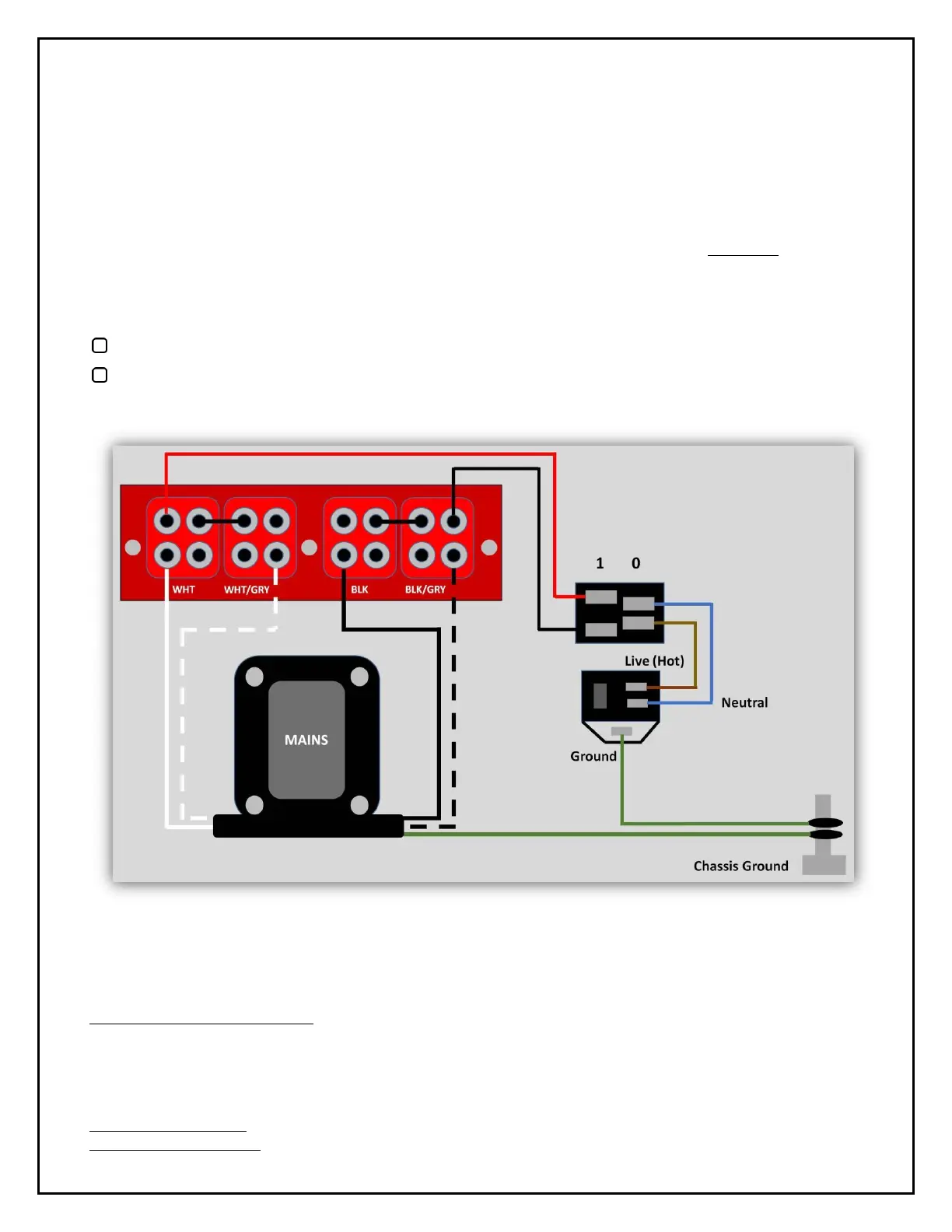

Referencing the diagram below, complete the IEC/Rocker Switch wiring as shown. Regarding the
aesthetics, you have several options:
1. Solder the Red and Black wires from the Rocker Switch to the front of the board (see picture
above). You can use either of the unused holes on each tab.
2. Solder the Red and Black wires from the Rocker Switch to the underside of the board.
3. Solder the Red and Black wires from the Rocker Switch to the front through the plastic
insulating board (by drilling 2 holes in it
7
).
The choice is yours.
If you haven't done so already, peel off the paper covering on the plastic insulating board.
Tin and solder the unprepared ends of the half-prepared Red and Black
8
wires in the IEC bag onto
the IEC board, as shown.
7
Peel off the cover first! There's a nice picture of how to do this in the Appendix.
Be aware, though, that the
Appendix shows the 240V wiring, so use the jumpers as shown above for 120V.
8
Or Orange or whatever we've supplied. The color doesn't matter so long as you make the connections shown.
