As you can see, each 300B is seated in a valve base next to a tag strip, to which are attached 3
resistors, an electrolytic capacitor, and some jumpers. We'll want to take great care to get the wiring
correct and neat.

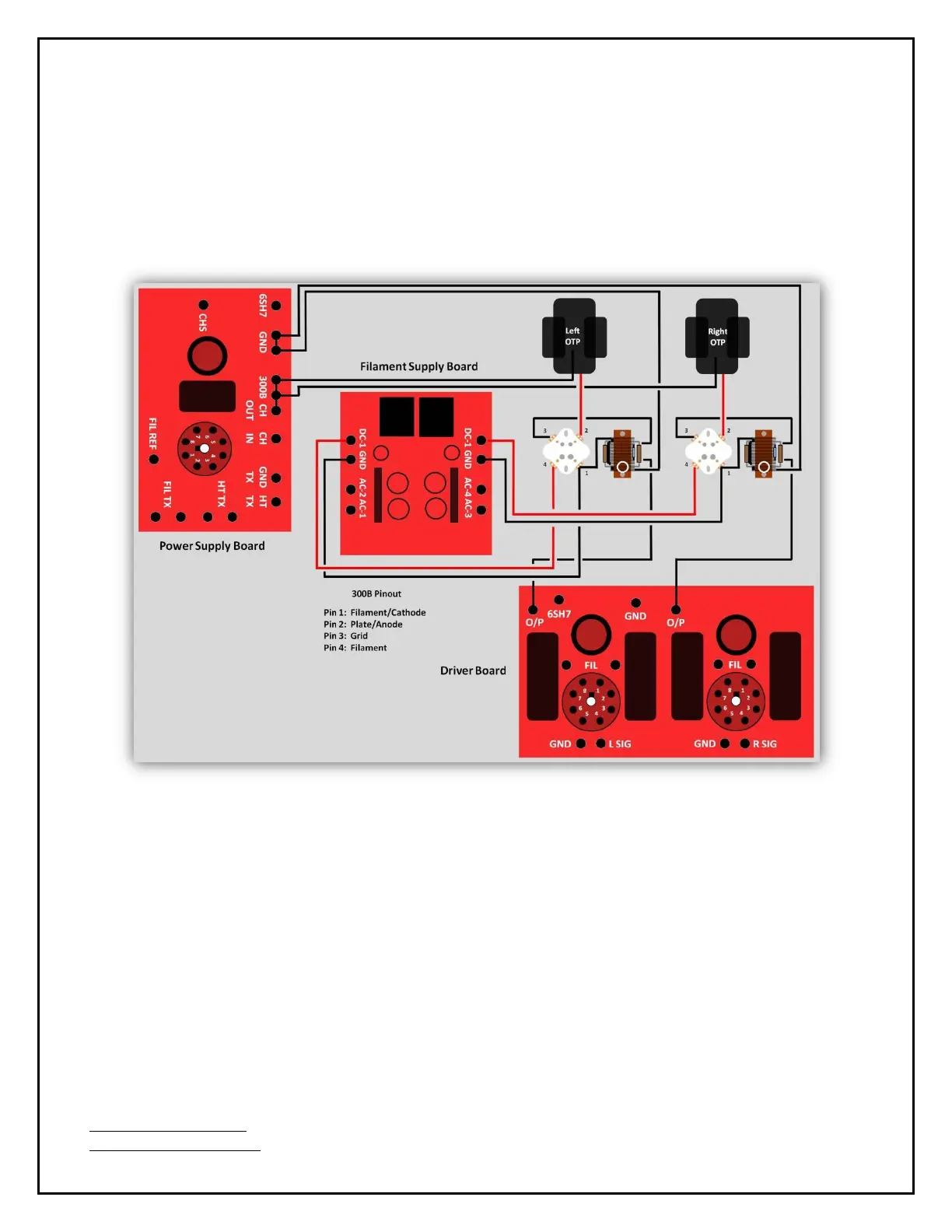

Here's some additional context, showing the interwiring for the 300Bs and the output transformers.
This is work we'll be tackling in this and the next sections. (There is a high resolution version of this
graphic on your disk.)
