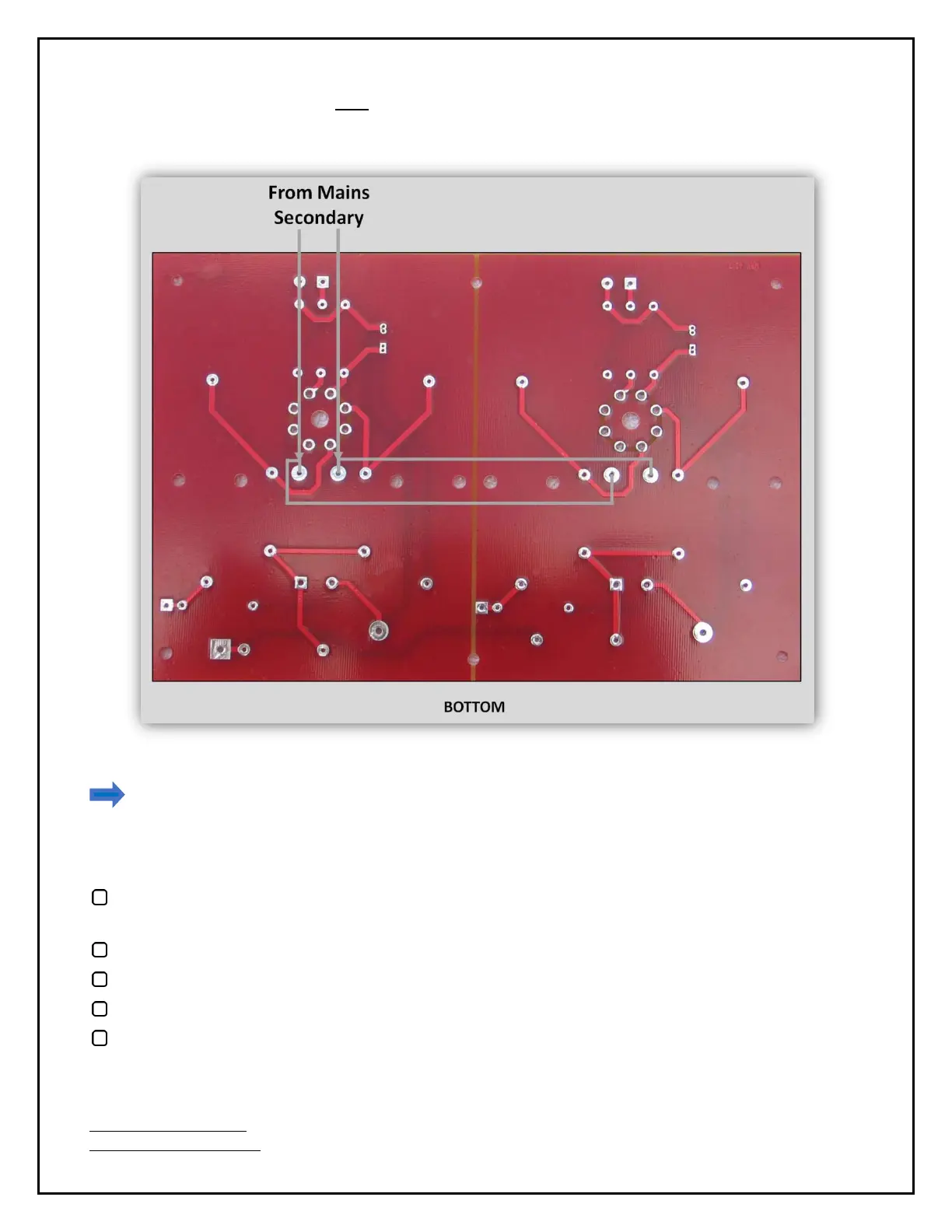

The bottom view (below) shows how the 2 Grey Mains Secondary wires and 2 Grey jumper wires will
be connected.
The orientation of the Mains Secondary Grey wires doesn't matter, but we'll follow the
diagram above when wiring the jumpers.
As we know, we can't fit 2 wires into most solder tabs; here's how we'll solve this instance:
Cut the two Grey wires coming from the Mains Secondary to about 8" each. Add some heatshrink
if you wish.
Strip about 3/8" from the ends of these Grey wires, tin them, and put them aside for the moment.
Using left over Grey Mains Secondary wire, cut two 5" lengths. These will be our jumper wires.
Strip about 3/8" from each end of each of these Grey jumper wires.
Tin only one end of each.
From the underside of the board, connect the tinned ends of these jumper wires to the right side
filament solder tabs, as shown in the BOTTOM view above.
