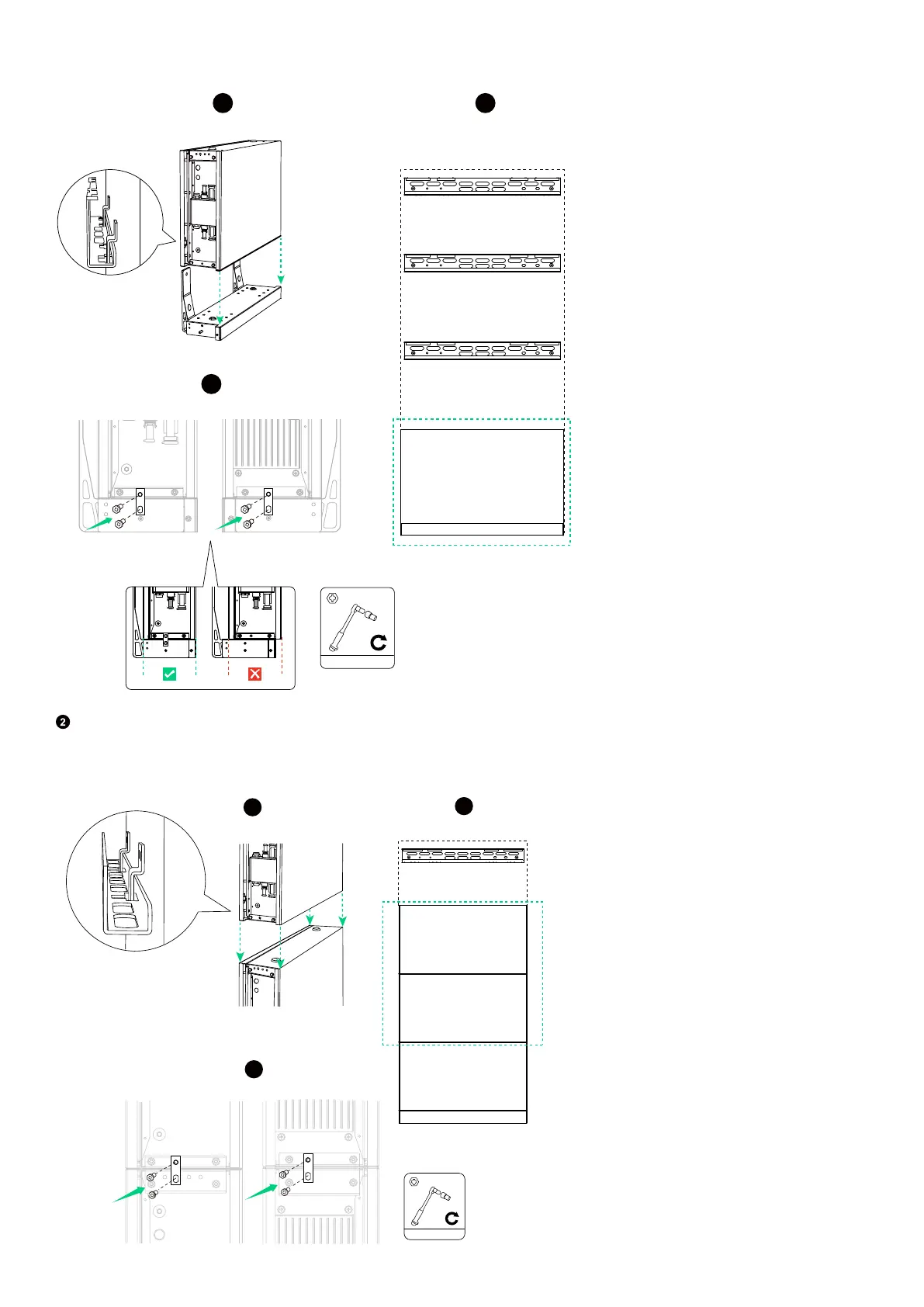

Figure: Mount the first battery module.
a
BMS
BAT-
BAT+
BMS
BAT-
BAT+
2N·m
M5×14 mm
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
b
c
Mount the remaining modules from bottom to top. After installing a module, tighten the module interlockers using the
screws (M5×14 mm, included), and then mount the next module.
Figure: Mount the second and third battery modules.
b
c
2N·m
M5×14 mm
a
BMS
BAT-
BAT+
BMS
BAT-
BAT+
