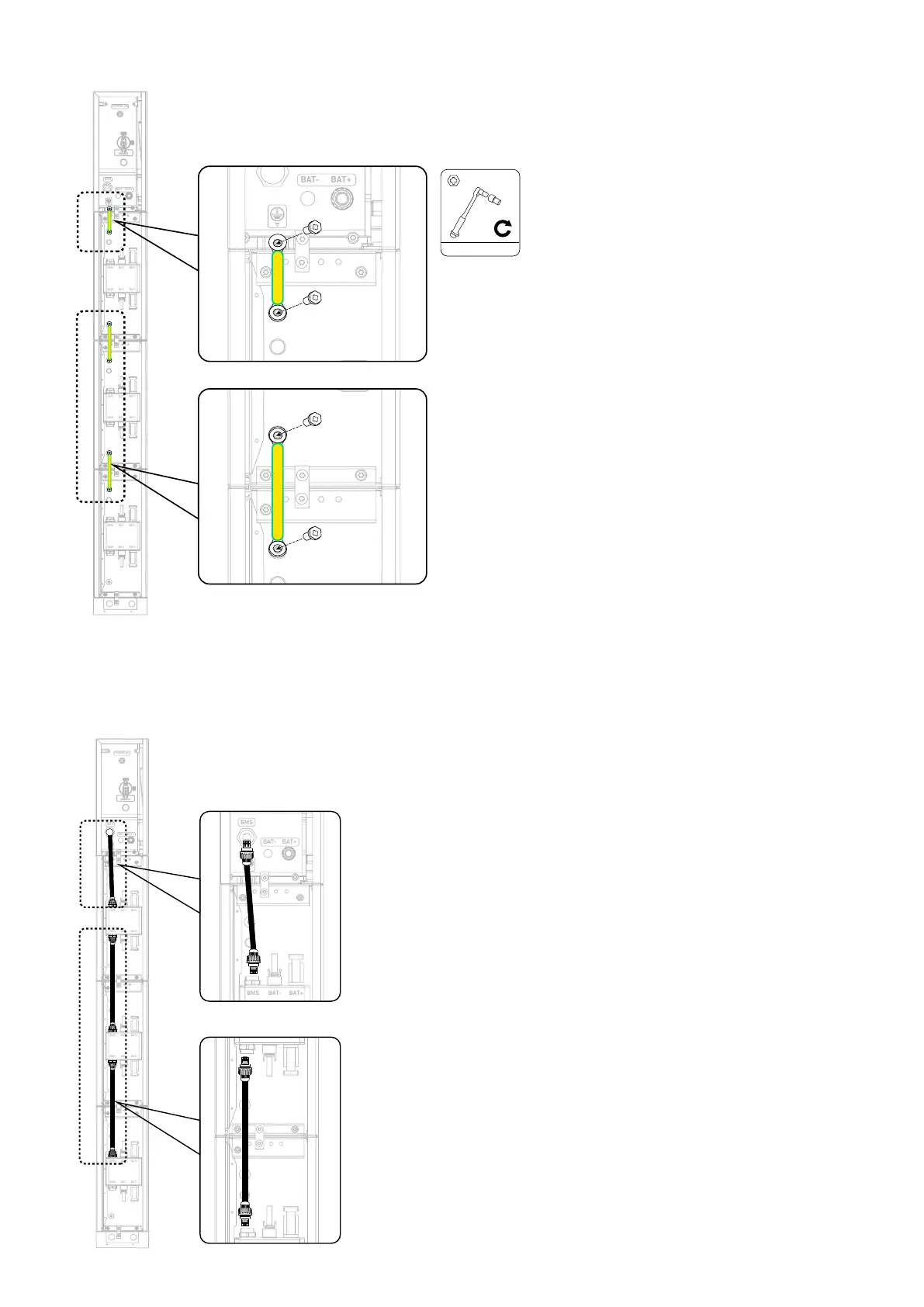

Figure: Connect GND cables between modules.
BAT
SWITCH
BAT
SWITCH
BMS
BAT- B AT+
POWER ON
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
BMS BAT- BAT +
BAT- BAT+
2N·m
M5×14 mm
4. Connect the RJ45 signal cables between the modules.
Loosen the locking caps, insert the RJ45 signal cables (black, included) into the BMS ports, and rotate the locking caps to
secure.
Figure: Connect RJ45 signal cables between modules.
BAT
SWITCH
BAT
SWITCH
BMS
BAT- BAT +
POWER ON
BMS B AT- BAT +
BMS B AT- BAT +
BMS B AT- BAT +
BMS B AT- BAT +
BMS B AT- BAT +
BMS B AT- BAT +
BAT-BMS BAT+
BMS
BAT- BAT+
