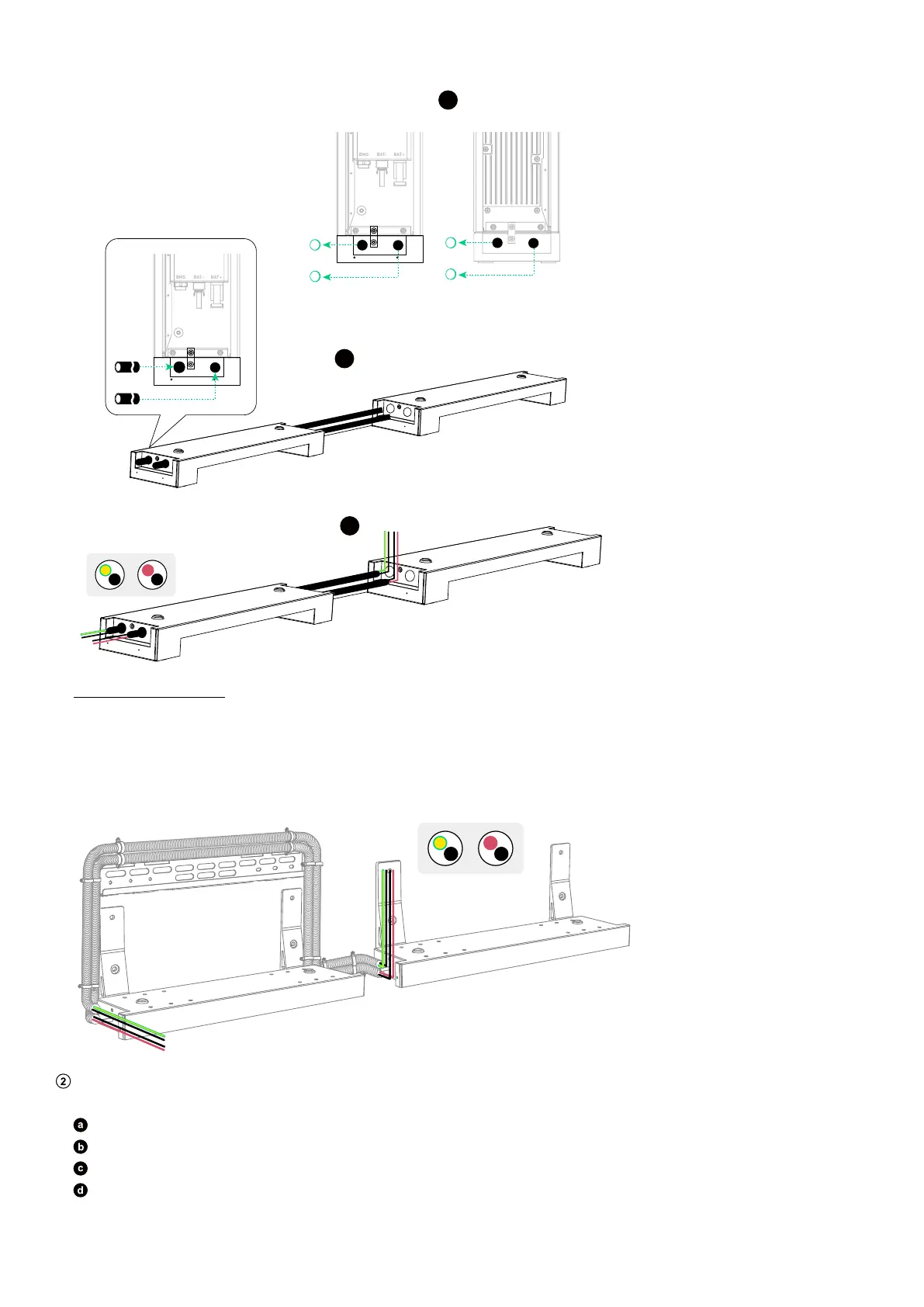

Figure: Thread cables through conduits for floor mounting.
b
a
BMS
BAT-
BAT+
BMS BAT- BAT+
BMS
BAT-
BAT+
BMS BAT- BAT+
c
Wall-Mounted Modules
Thread a GND cable (6 mm², yellow/green, not included) and a signal cable (Cat 5 or higher, 5-6 mm in diameter, not
included; shielding recommended) through the upper conduit.
Thread the positive DC power cable (8 mm², red, not included) and negative DC power cable (8 mm², black, not included)
through the lower conduit.
Figure: Thread cables through conduits for wall mounting.
Assemble the GND cable and RJ45 signal cable.
To assemble the GND cable:
Strip the insulation layers from both ends.
Insert the heat shrink tubing (included) and ring terminals (included).
Crimp the ring terminals onto the GND cable.
Wrap the crimping area with the heat shrink tubing using a heat gun.
