Connect the AC grid connector to the home main panel, and the AC backup connector to the sub panel.

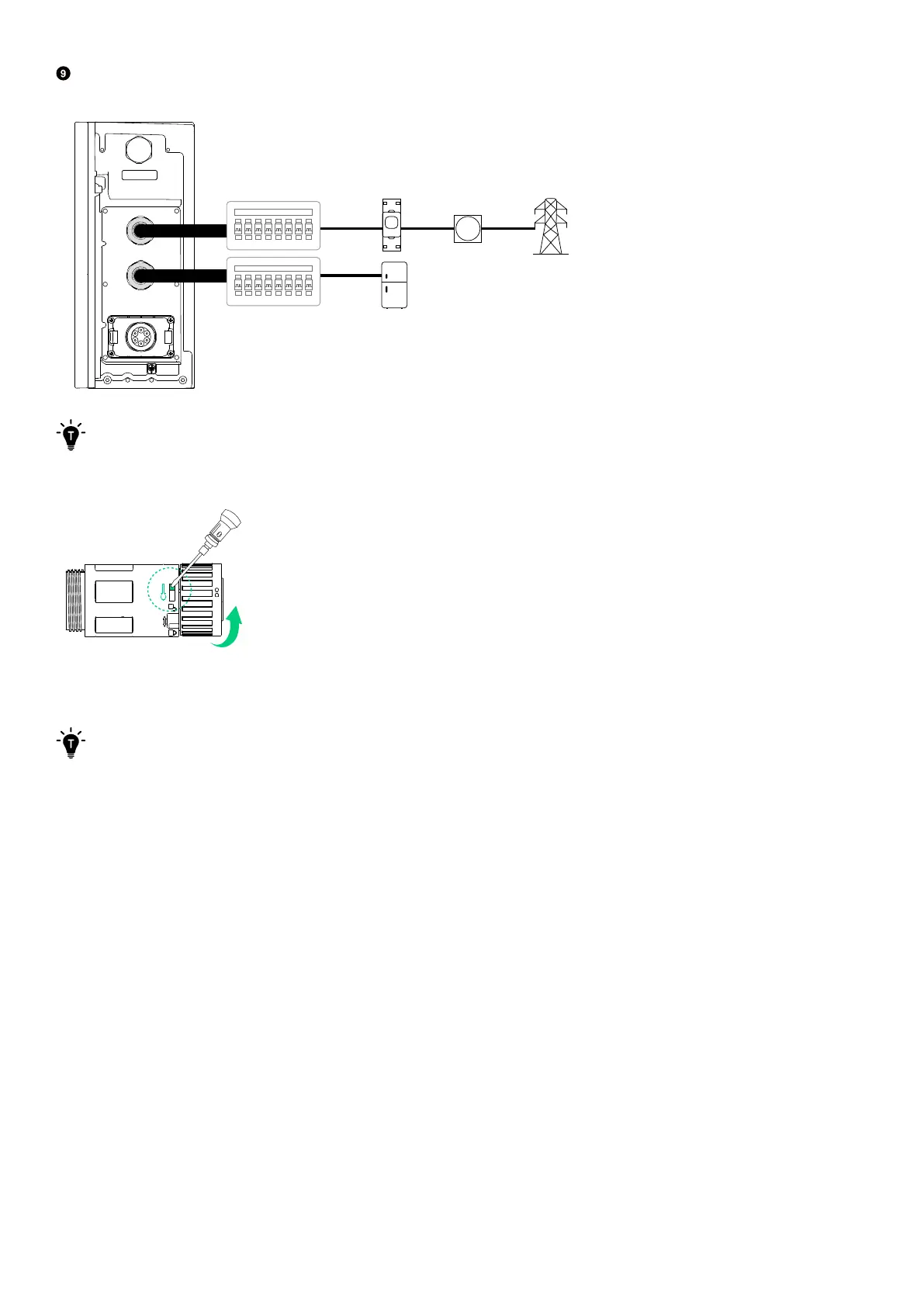

Figure: Connect to the grid and backup loads.
Power Sensor
Backup Loads
GridMain Meter
WLAN/4G
AC GRID
AC BACKUP
COM
Home Main Panel
Sub Panel
To disassemble the AC connector, depress the buckle and turn the body to the unlocking icon.
Figure: Disassemble the AC connector.
Connect to Power Sensors
Connect the power module to the power sensors on both the grid side and the solar panel side.
·
The Anker SOLIX X1's anti-reverse flow measures include real-time power monitoring through communication
between the power module and the power sensors (Model: SDM230-Modbus V1, DTSU666), with software and
hardware interventions to prevent power from feeding back into the grid.
·
Software approaches adjust discharge currents, while hardware solutions involve shutting down and
disconnecting from the grid. In the event of communication failures, the power module will automatically shut
down and disconnect from the grid until normal operations can be safely resumed.
