The procedure for fitting a ML2400A to a HP34401A Multimeter is as
follows:
1. Fit to the ML2400A Power Meter front brackets C37276, C37275
and rear bracket C41449 using 6 screws 905-68 and 6 washers
900-345. Do not tighten fully at this stage, only enough to allow the
bracket to slide to its maximum position.
2. Fit the center rear bracket 49413 using 2 screws 905-63. (See max.
torque settings page 2-6).
3. Fit to the HP34401A spacer plate 49439 in 2 positions with front
brackets C37277 and 49415 using 4 screws 905-63. (See max. torque
settings page 2-6).
4. Offer up the HP34401A to the ML2400A unit ensuring the front
bracket fixing holes ofboth units are in line. Slide the center rear
bracket 49413 forward till it makes contact with the rear face of the
HP34401A.
5. Gently remove the HP34401A unit and tighten the 49413 bracket
fixings in its new position. (See max. torque settings page 2-6).

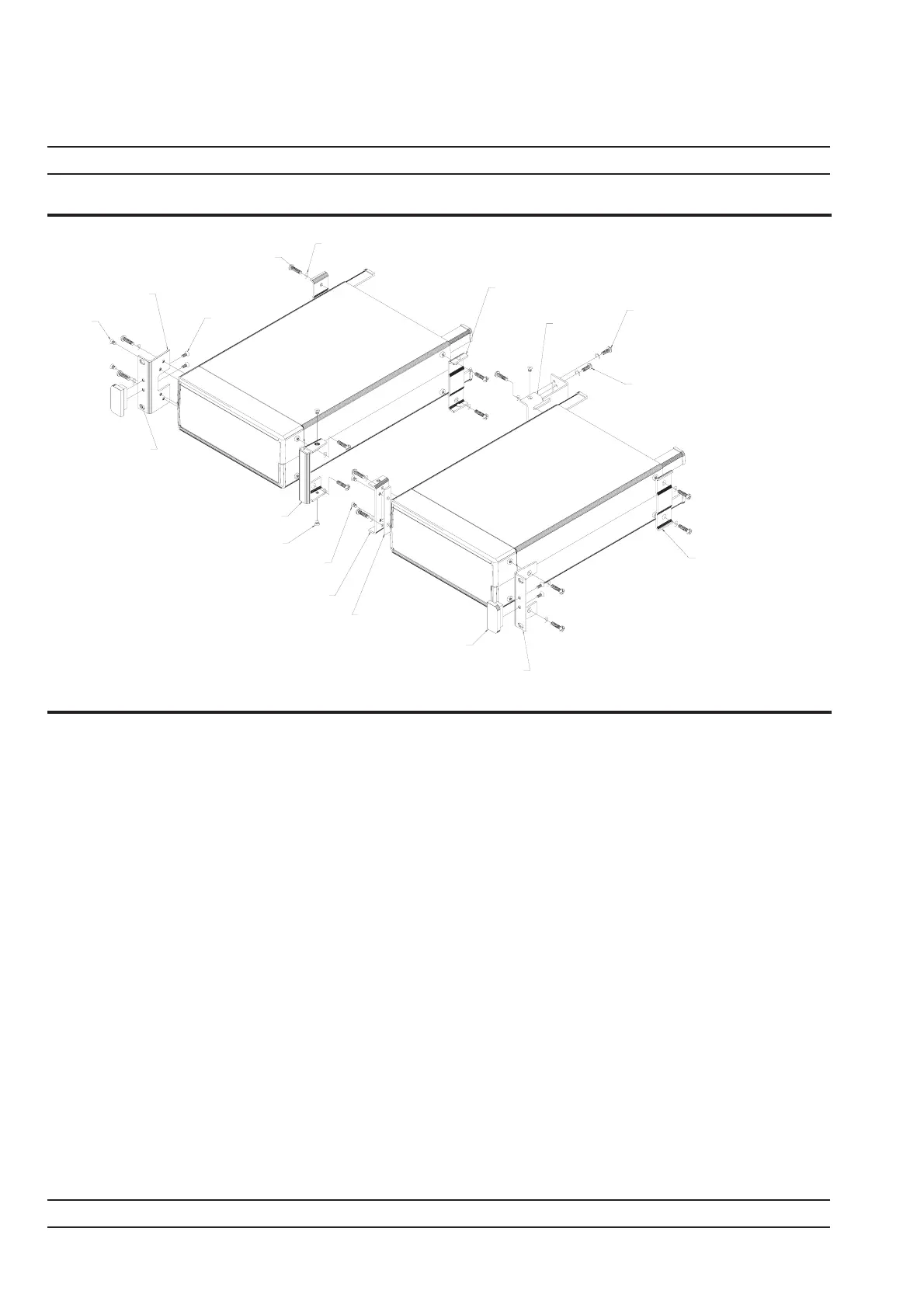

2-8 ML2400A OM
RACK MOUNTING INSTALLATION
NOTE:
FIT COMPLETED
ASSEMBLY TO RACK USING
DECORATIVE SCREW 900-821
X4 AND SPEED NUT 790-319
X4 IN 4 CORNER
POSITIONS AS SHOWN
905-63
X2
49415
RACKMOUNT SIDE
BRACKET (MULTI-FIT).
USE THIS BRACKET
WHEN FITTING A
HP34401A
900-795
X4
905-68
X16
900-345
X16
C37279
RACKMOUNT BRACKET
CENTER INNER REAR
49413
RACKMOUNT BRACKET
CENTER INNER REAR
900-807 X2
900-806 X2
USE THESE FIXINGS WHEN FITTING
A MF2412A COUNTER TO A ML2430A
POWER METER
900-103 X2
900-807 X2
USE THESE FIXINGS WHEN FITTING
A HP34401A MULTIMETER TO A
ML2430A POWER METER
C41449
RACKMOUNT BRACKET
REAR SUPPORT X2
USE THESE BRACKETS WHEN
FITTING A ML2430A TO ANOTHER
ML2430A POWER METER
C37276
RACKMOUNT
SIDE BRACKET
783-1055
HANDLE
X2
49439 X2
SPACER PLATE
USE ON A HP34401A ONLY,
IN 2 POSITIONS WHEN
FITTING TO A ML2430A OR
MF2412A. USE ALSO WITH
SIDE BRACKET 49415
C37277
RACKMOUNT
BRACKET CENTER
INNER FRONT
905-69
X4
905-63 X4
USE THESE FIXINGS WHEN FITTING
A HP34401A TO A ML2430A OR
MF2412A
C37275
RACKMOUNT
BRACKET CENTER
FRONT
