Figure 5-6 shows the results of the measurement.
Adjacent Channel Power Ratio is a continuous measurement. Once it is turned on, it will re-
main on until it is turned off by pressing the
Measure key again. When the ACPR measure-
ment is on, an
ACPR icon appears to the left of the graph. ACPR is calculated at the end of
a sweep. An hourglass is displayed as the calculations are performed.
5-15
Chapter 5 Spectrum Analyzer Measurements

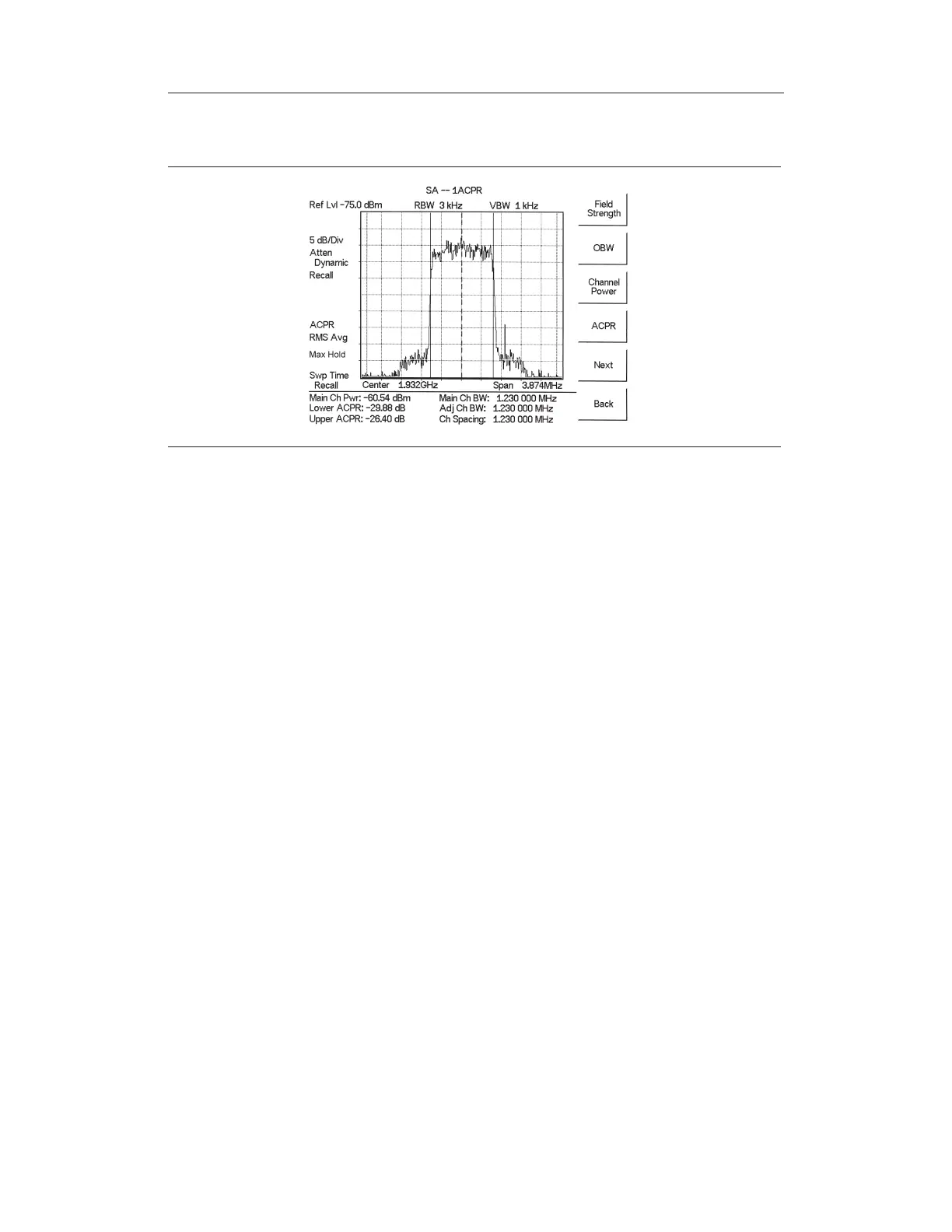

Figure 5-6. Adjacent Channel Power Measurement
