3 Installation and Connections
Note: All the installation and operations here should conform to your local
electric safety rules.
3.1 Check Unpacked DVR
When you receive the DVR from the forwarding agent, please check whether there is any visible
damage. The protective materials used for the package of the DVR can protect most accidental
clashes during transportation. Then you can open the box to check the accessories.
Please check the items in accordance with the list on the warranty card. Finally you can remove
the protective film of the DVR.
3.2 About Front Panel and Real Panel
For detail information of the function keys in the front panel and the ports in the rear panel,
please refer to the User’s Manual included in the resource CD.
The model in the front panel is very important; please check according to your purchase order.
The label in the rear panel is very important too. Usually we need you to represent the serial
number when we provide the service after sales.
3.3 HDD Installation
This series DVR has only one SATA HDD. Please use HDD of 7200rpm or higher.
You can refer to the User’s Manual for recommended HDD brand.
Please follow the instructions below to install hard disk.

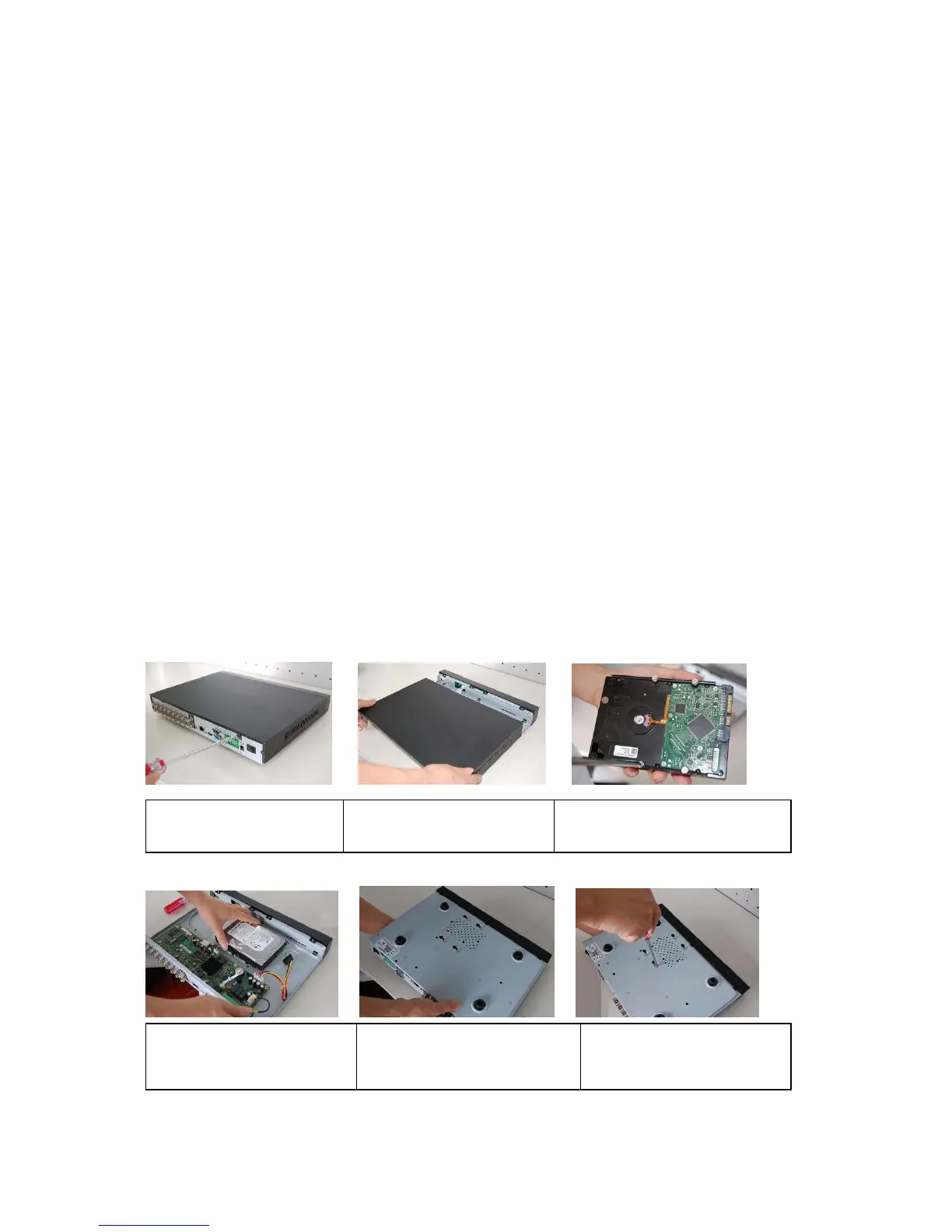

1. Loosen the screws of the
upper cover.
2. Remove upper cover.
3. Turn four screws for three rounds
to fix HDD bracket.
4. Place the HDD in
accordance with the four holes.
i th h i
5. Turn the device upside down
and then turn the screw in firmly.
6. Fix the HDD firmly.

Apollo HD Series Specifications

General

Category	DVR
Video Compression	H.264
Hard Drive Capacity	Up to 6TB
Remote Viewing	Yes
Operating System	Embedded Linux
Video Input	4/8/16 channels
Recording Resolution	1080p/720p
Mobile Support	iOS, Android
