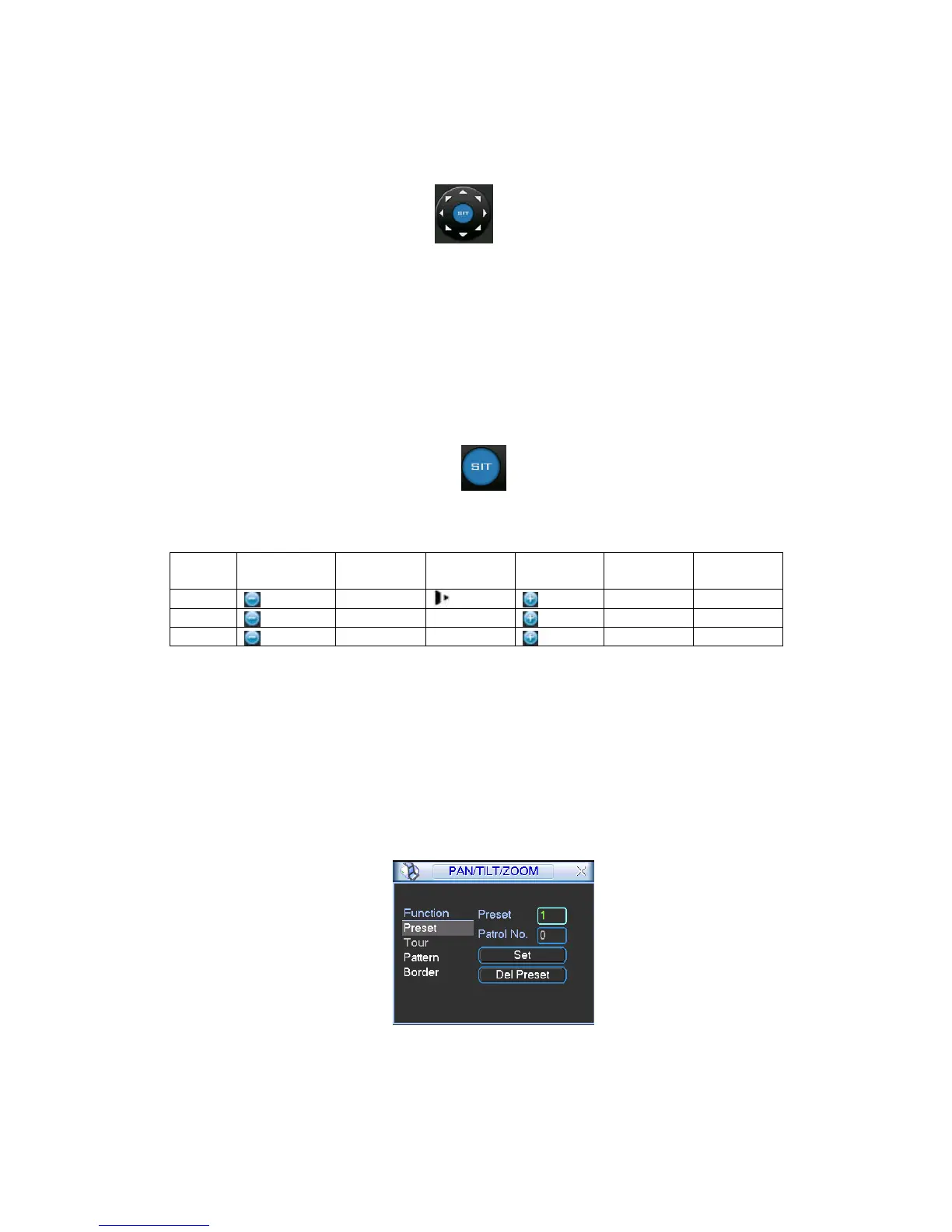

Figure 4-32
In Figure 4-32, please click direction arrows (See Figure 4-33) to adjust PTZ position. There are
total 8 direction arrows.
Figure 4-33
4.8.3 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure
4-34.Please make sure your protocol supports this function and you need to use mouse to
control.
Click this key, system goes back to the single screen mode. Drag the mouse in the screen to
adjust section size. It can realize PTZ automatically.
Figure 4-34
Here is a sheet for you reference.
Name
Function
key
function
Shortcut
key
Function
key
function
Shortcut
Key
Zoom
Near
Far

Focus
Near
│
Far
►│
Iris
close

Open

4.9 Preset/ Patrol/Pattern/Scan
In Figure 4-32, click the “set” button. The interface is shown as below. See Figure 4-35.
Here you can set the following items:
 Preset
 Tour
 Pattern
 Border
Figure 4-35
In Figure 4-32, click page switch button, the interface is shown as in Figure 4-36.
Here you can activate the following functions:
 Preset
