Pack duration: Here is for you to specify record duration. Default value is 60 minutes.
DVR No: When you are using one remote control to control several DVRs, you can give a
name to each DVR for your management.
Video standard: There are two formats: NTSC and PAL.
Auto logout: Here is for you to set auto logout interval once login user remains inactive for a
specified time. Value ranges from 0 to 60 minutes.
Note:
Since system time is very important, do not modify time casually unless there is a must!
Before your time modification, please stop record operation first!
After completing all the setups please click save button, system goes back to the previous menu.

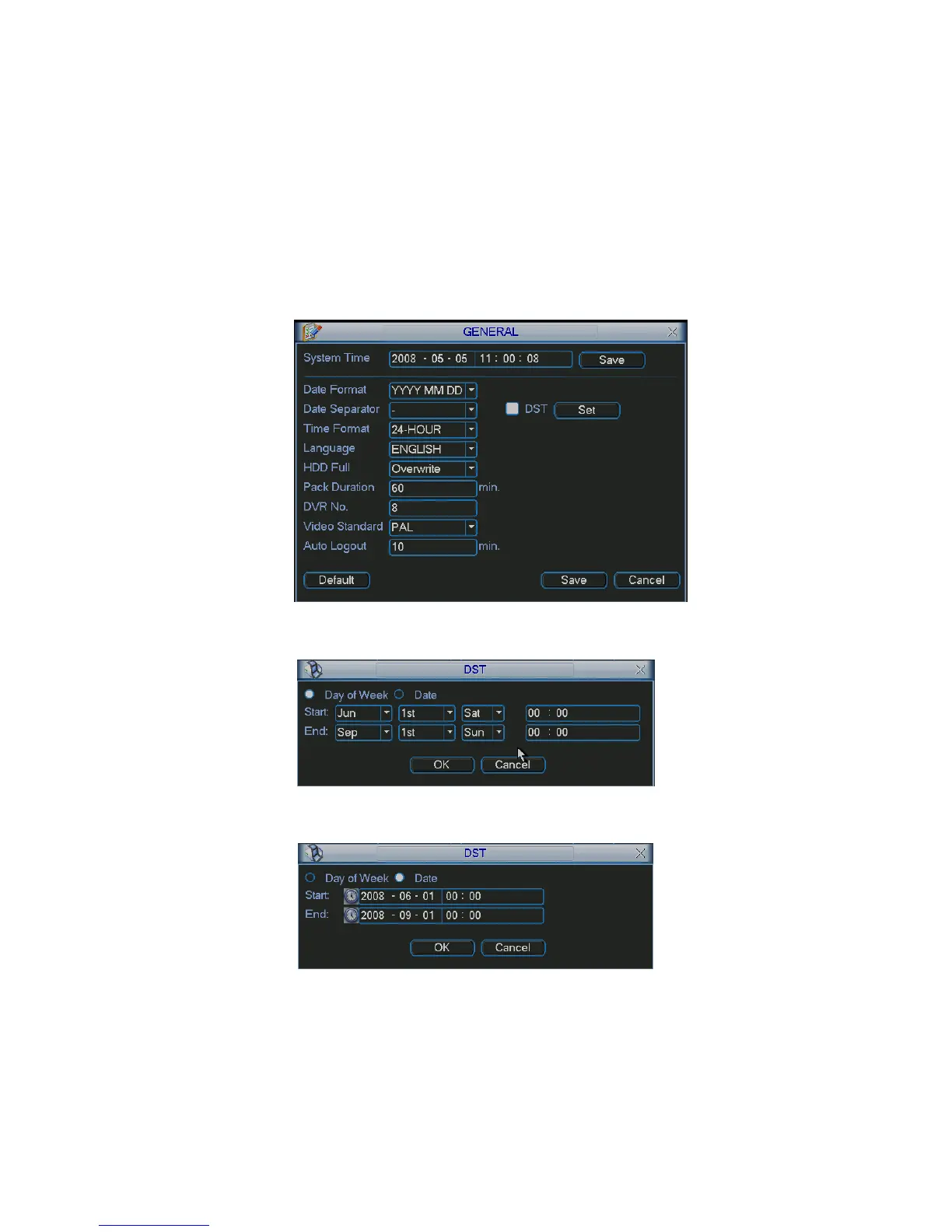

Figure 5-3
Figure 5-4
Figure 5-5
5.3.2 Encode
Encode setting includes the following items. See Figure 5-6.
Please note some series do not support extra stream.
Channel: Select the channel you want.
