Figure 5-28
5.5.2 Abnormity

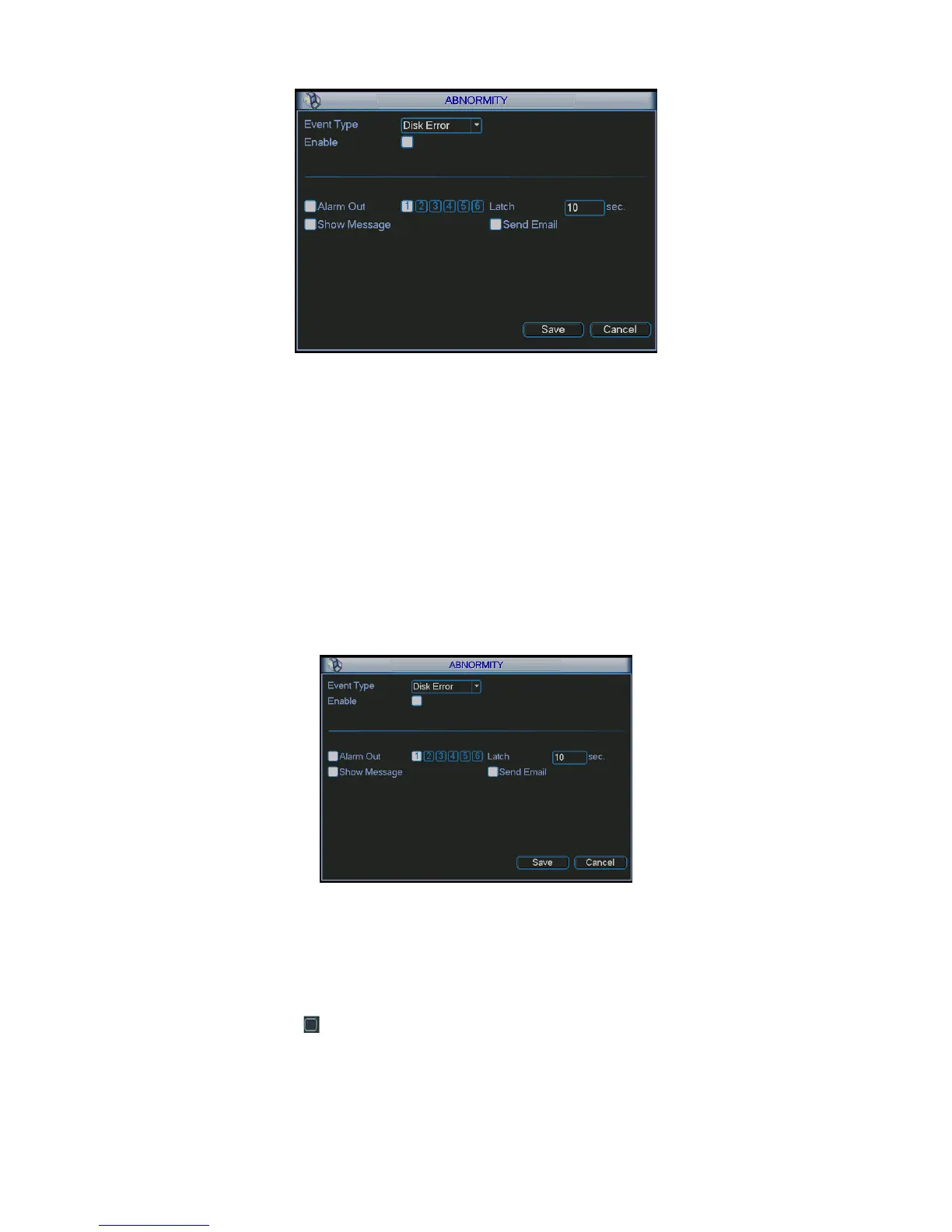

Abnormity interface is shown as in Figure 5-29.
Event type: There are several options for you such as disk error, no disk and etc.
Alarm output: alarm activation output port (multiple choices). The 3-ch is controllable
12V output.
Latch: here you can set corresponding delaying time. The value ranges from 10s-300s.
System automatically delays specified seconds in turning off alarm and activated output after
external alarm cancelled.
Show message: system can pop up the message in the local screen to alert you when
alarm occurs.
Send email: System can send out email to alert you when alarm occurs.
Figure 5-29
5.5.3 Alarm Output
Here is for you to set proper alarm output.
Please highlight icon
to select the corresponding alarm output.
After all the setups please click OK button, system goes back to the previous menu. See Figure
5-30.
