Apollo HD Series User Manual

46
46

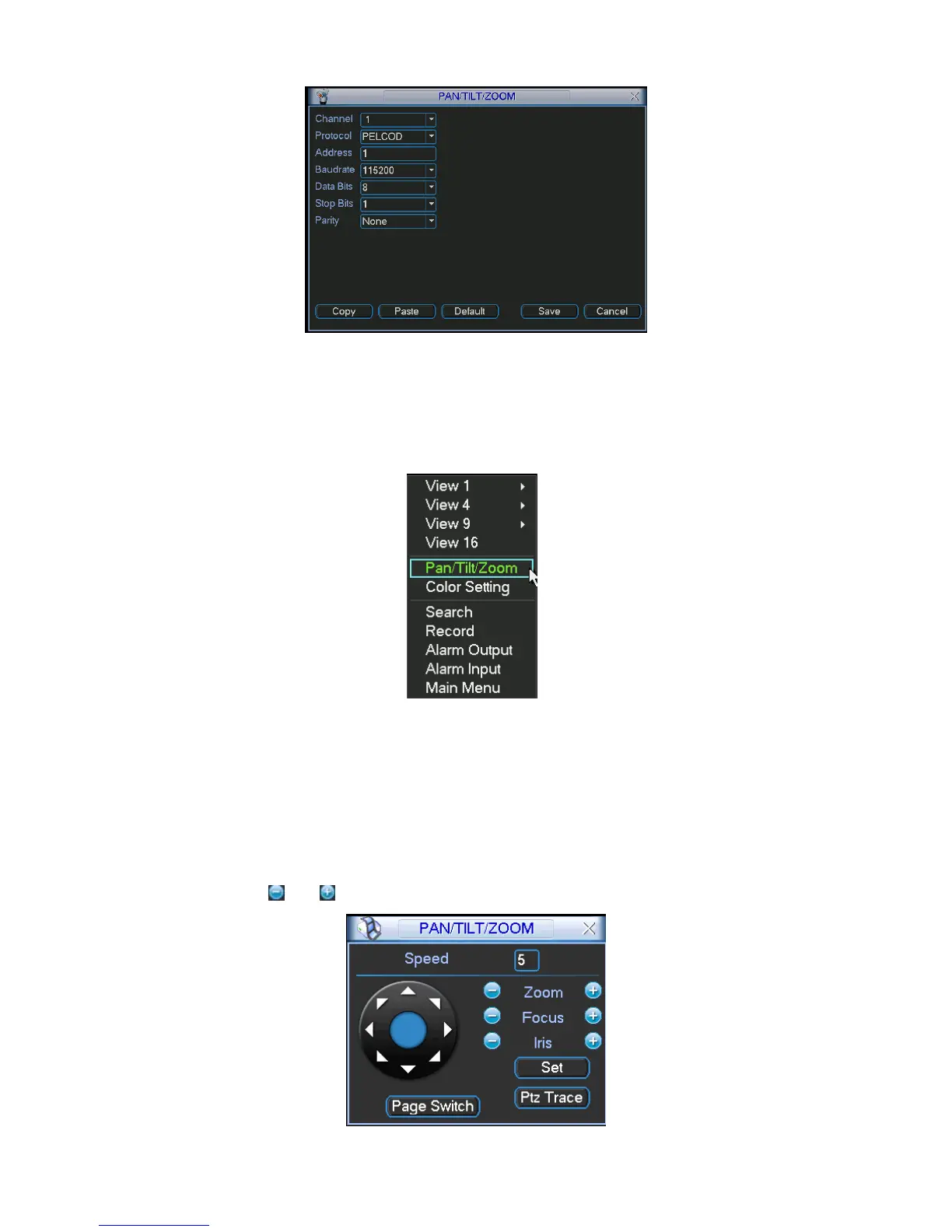

Figure 4-30
After completing all the setting please click save button.
In one window display mode, right click mouse (click “Fn” Button in the front panel or click
“Fn” key in the remote control). The interface is shown as in Figure 4-31.
Figure 4-31
Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-32.
Here you can set the following items:
 Step: value ranges fro 1 to 8.
 Zoom
 Focus
 Iris
Please click icon
and to adjust zoom, focus and iris.

Apollo HD Series Specifications

General

Category	DVR
Video Compression	H.264
Hard Drive Capacity	Up to 6TB
Remote Viewing	Yes
Operating System	Embedded Linux
Video Input	4/8/16 channels
Recording Resolution	1080p/720p
Mobile Support	iOS, Android
