CHAPTER 1
INTRODUCTION
Entire Contents Copyright 2004 by Adaptive Power Systems, Inc. (APSI) • All Rights Reserved • No reproduction without written authorization from APSI.
APS-3000P Series 1 - 8 OM-001-03000-00P-03.9

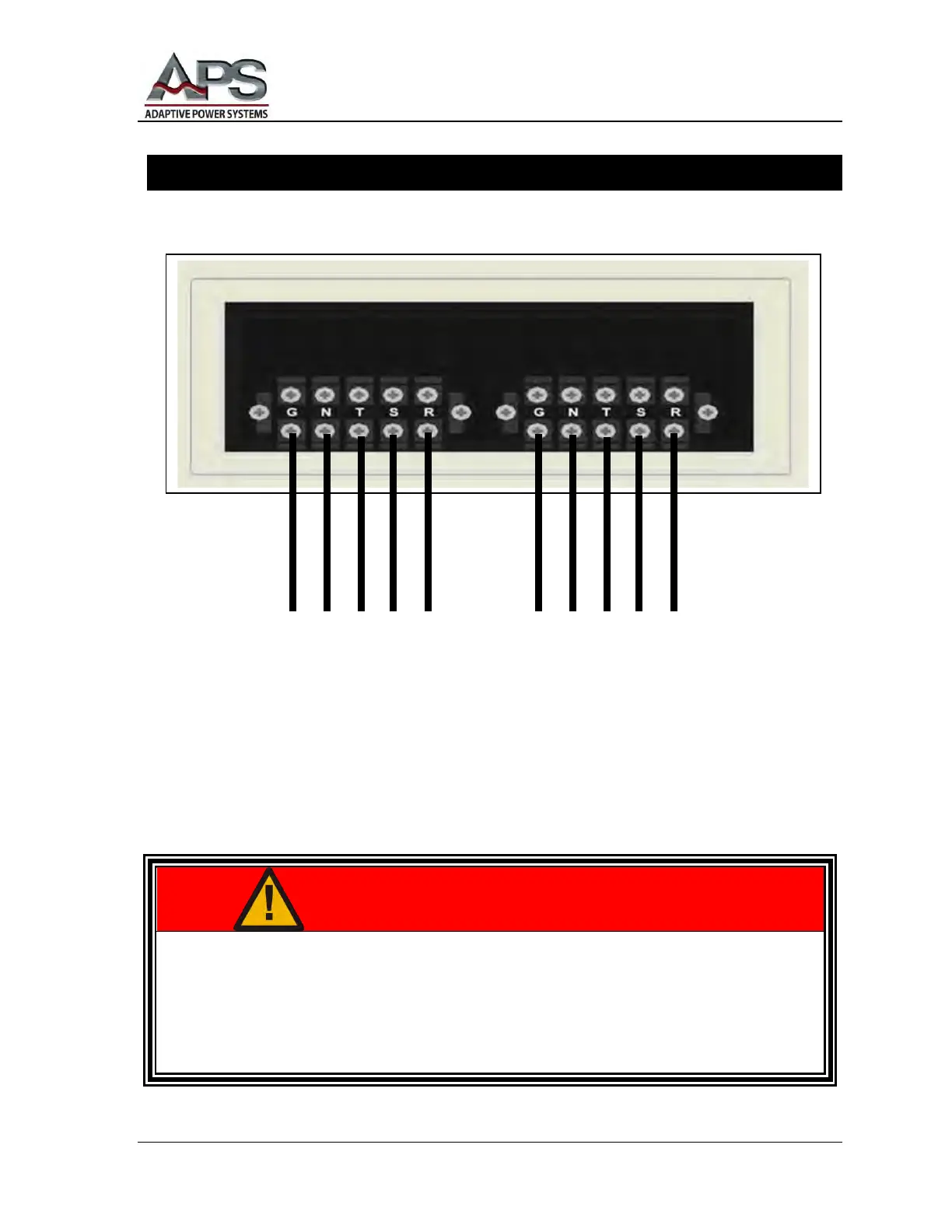

Example Wiring Diagram
INPUT / OUTPUT Power Panel at Rear of APS Unit (typical)
THIS EQUIPMENT CONTAINS HIGH ENERGY, LOW IMPEDANCE CIRCUITS!!
LETHAL POTENTIALS ARE CONTAINED WITHIN THE CABINET.
ONLY FULLY-QUALIFIED PERSONNEL SHOULD ATTEMPT TO MAKE INPUT
OR OUTPUT POWER CONNECTIONS.
G N C B A G N C B A
OUTPUT CONNECTIONS INPUT CONNECTIONS
NOTE: Terminal Phases R, S, T are North American (U.S.) A, B, C
NOTE: Other terminal configurations are possible. For example,
there is no neutral terminal for delta-winding inputs. In addition,
depending on voltage range, there may be no neutral terminal.
And, although they provide 3-phase outputs, the APS-3003P and
APS-3006P models have 1-phase inputs (2-wire plus ground).
