3 Operation
(Fortsetzung)
3-150
C232-302-401/402/403/404-603 / C232/EN M/A23
3.22 Single-Pole Commands (Function Group CMD_1)
Commands can be sent to the P139 through the communication interface. If the P139
receives the command, then the appropriately configured output relay is triggered and a
signal is issued - provided that remote control has been enabled.
The user may select the operating mode for any single-pole command. The following
settings are possible:
Long command
Short command
Persistent command
If the user selects either a long or a short command, then the output relay is only
triggered for the time period set at MAIN: Cmd. dur. long cmd. or
MAIN: Cmd. dur. short cmd.

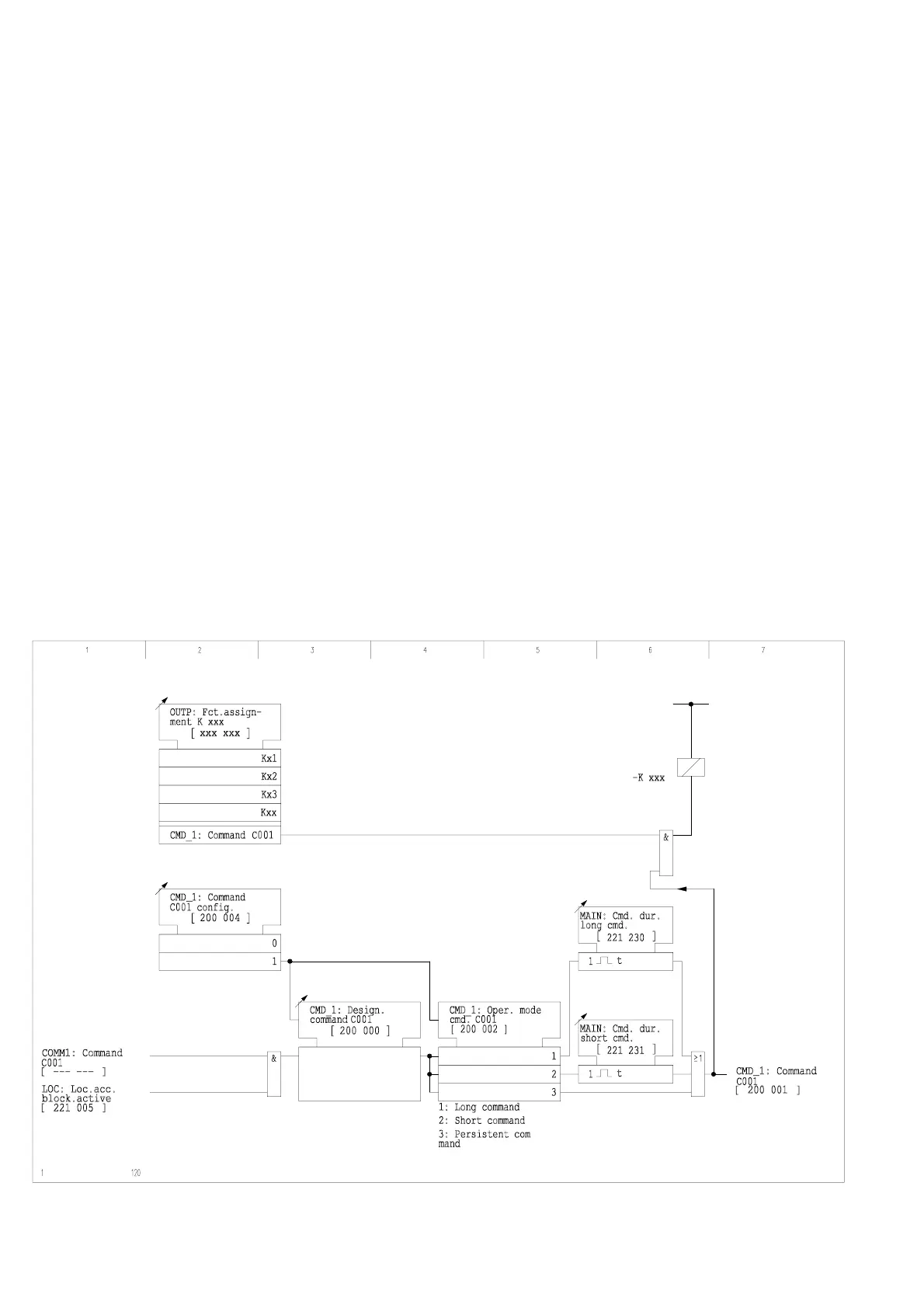

The following figure shows the setting options and the functional sequence for command
C001. Equivalent considerations apply to all other single-pole commands.
44Z51ATA
3-114 Functional sequence for single-pole commands, illustrated for command C001
