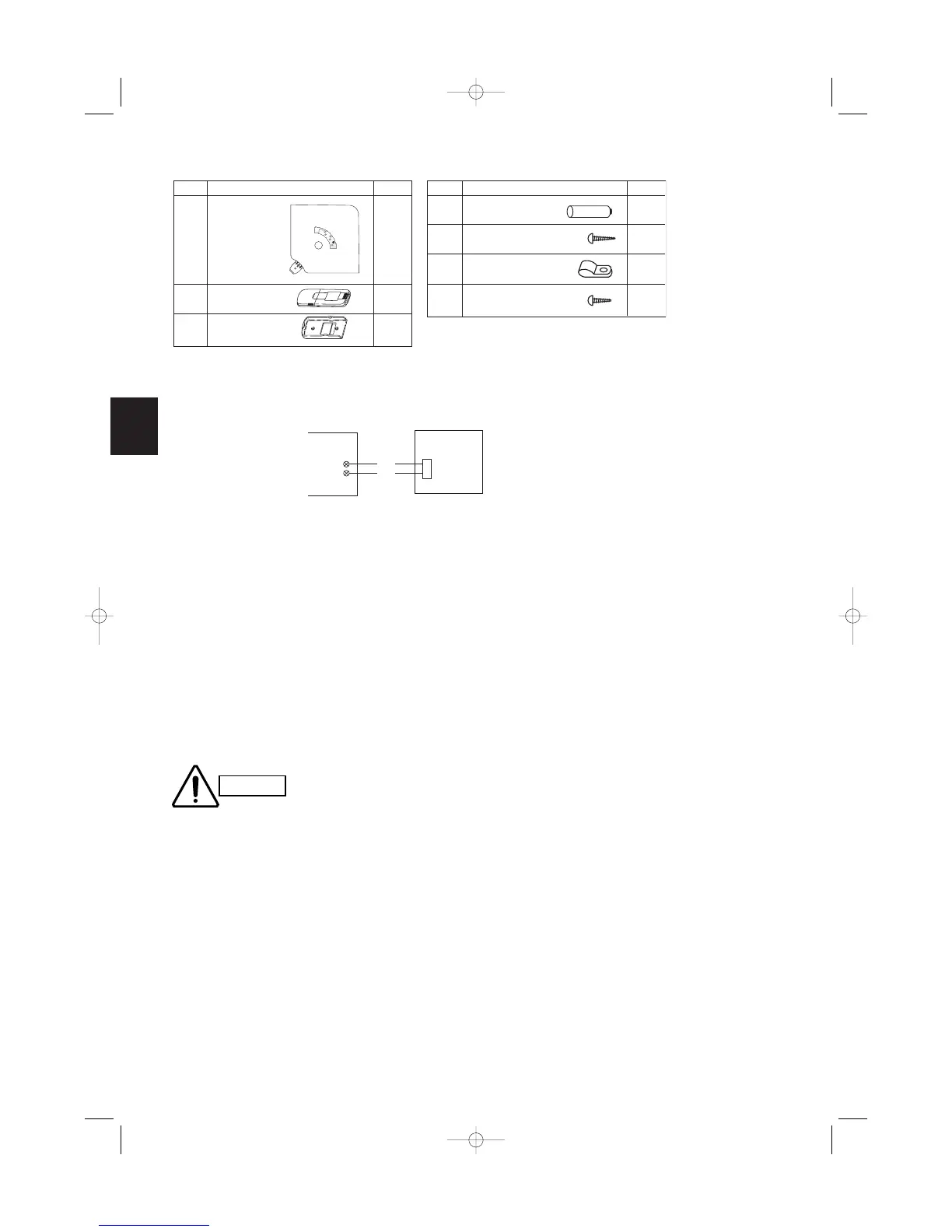

11-2. Accessories
11-3. Wiring the Receiver Unit
Connect the wire from the receiver unit to the
indoor unit remote controller terminal board. (The
wire has no polarity.)
11-4. Precautions on Simultaneous Installation of
Wired Remote Controller and Wireless
Remote Controller
By installing a wired remote controller, the wireless
remote controller kit can permit dual remote control
operation at the same time.
(Up to 2 units of remote controllers – a wireless kit
and a wired unit – can be installed.)
Dual remote control operation can control 1 or multi-
ple air conditioners using several remote controllers.
Be sure to determine the correct ter-
minal numbers on the indoor unit
when wiring the remote controller.
The remote controller will be dam-
aged if high voltage (such as 200
VAC) is applied.
The wireless remote controller kit
components cannot be used for
more than 1 indoor unit at a time.
(However, separate receiver units
may be used simultaneously.)
When a wireless remote controller
kit and a wired remote controller are
used simultaneously, assign either
the wireless remote controller or the
wired remote controller as the SUB
remote controller unit.
Connection diagram
