Argo R410A - AS2 S Type: 2-Way Air Discharge Semi-Concealed; Before Installing the AS2 S Ceiling Panel

AS2S
92
 2-Way Air Discharge Semi-Concealed Type
(AS2S Type)

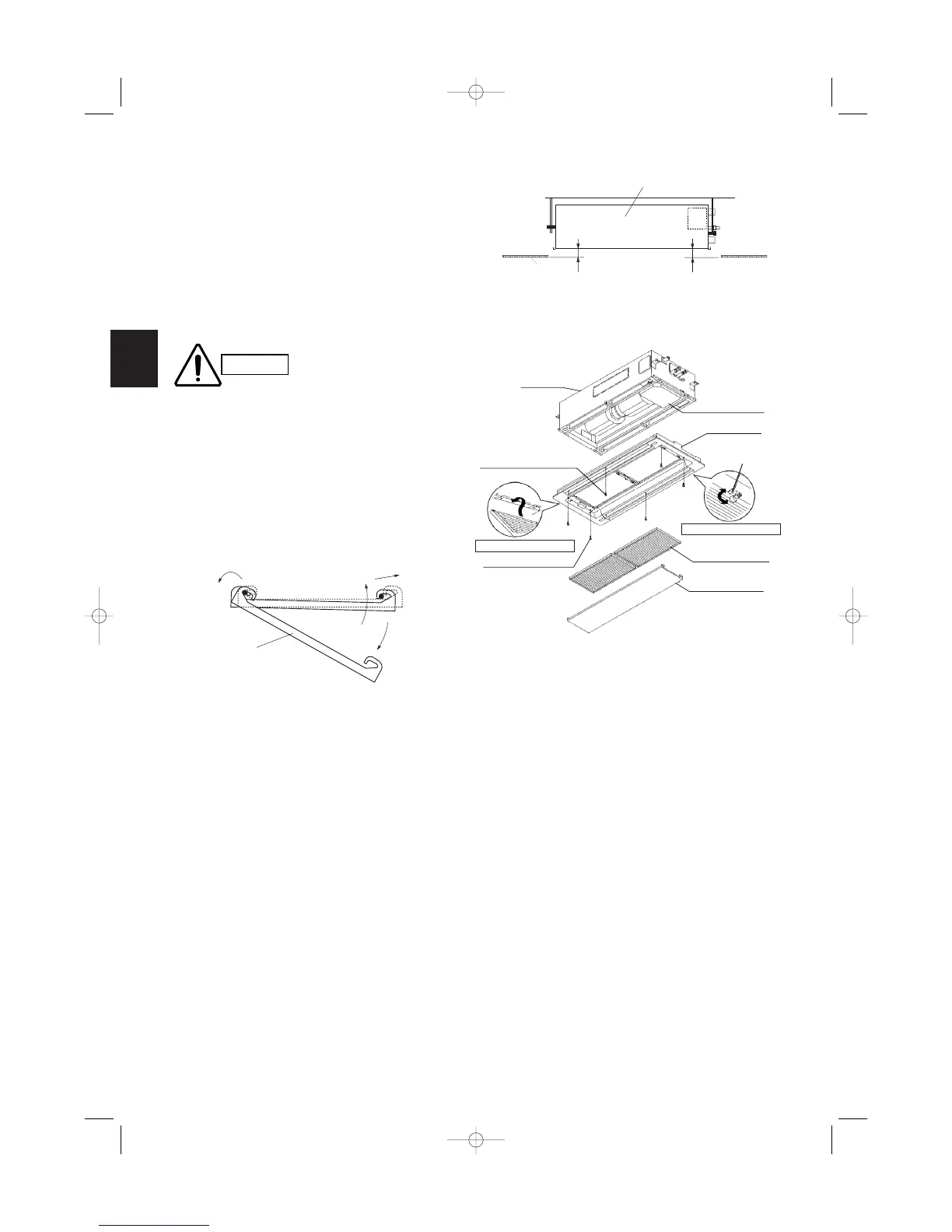

9-4. Before Installing the Ceiling Panel
(1) Adjust the distance between the unit and the sur-
face of the ceiling (60 mm) using the 2 hexagonal
nuts as shown in Fig. 9-6 while following the instal-
lation gauge.
(2) Remove the air-intake panel and the air filter from
the ceiling panel as shown in Figs. 9-7 and 9-8.
How to remove the air-intake panel (from either
side). (Fig. 9-8)
(1) Push in. → (2) Slide. → (3) Pull. → (4) Remove.
Fig. 9-6
Indoor unit
Ceilin
g
60 60
Fig. 9-7
Fig. 9-8
Electrical
component box
Ceiling panel
Indoor unit
M4 × 25 screw, 2 pcs.
(Only 73 Type)
M5 × 40 screw, 4 pcs.
Latch
Air filter
Air-intake panel
Filter installation section
Filter installation section
Never touch or attempt to
move the air-direction lou-
ver by hand or you may
damage the unit. Instead,
use the remote controller
if you want to change the
direction of air flow.
CAUTION
3
1
2
4
Air-intake panel
Unit: mm
06-065 Mini ECO-i II for ARGO 2/8/06 4:37 PM Page 92
