Argo R410A - AFS;AFNS Types: Floor-Standing and Concealed; Minimum Space for AFS;AFNS Unit Installation; Dimensions and Part Names for AFS Type

AFS
AFNS
67
 Floor-Standing Type (AFS Type)
Concealed Floor-Standing Type (AFNS Type)
3-39. Required Minimum Space for Installation and
Service
Install the unit where cooled or heated air from the unit
can circulate well in the room. Do not put obstacles
which may obstruct the air flow in front of the air intake
and outlet grilles.
Ensure there is adequate space for maintenance of the
electrical component box, air filter and, refrigerant
tubes.

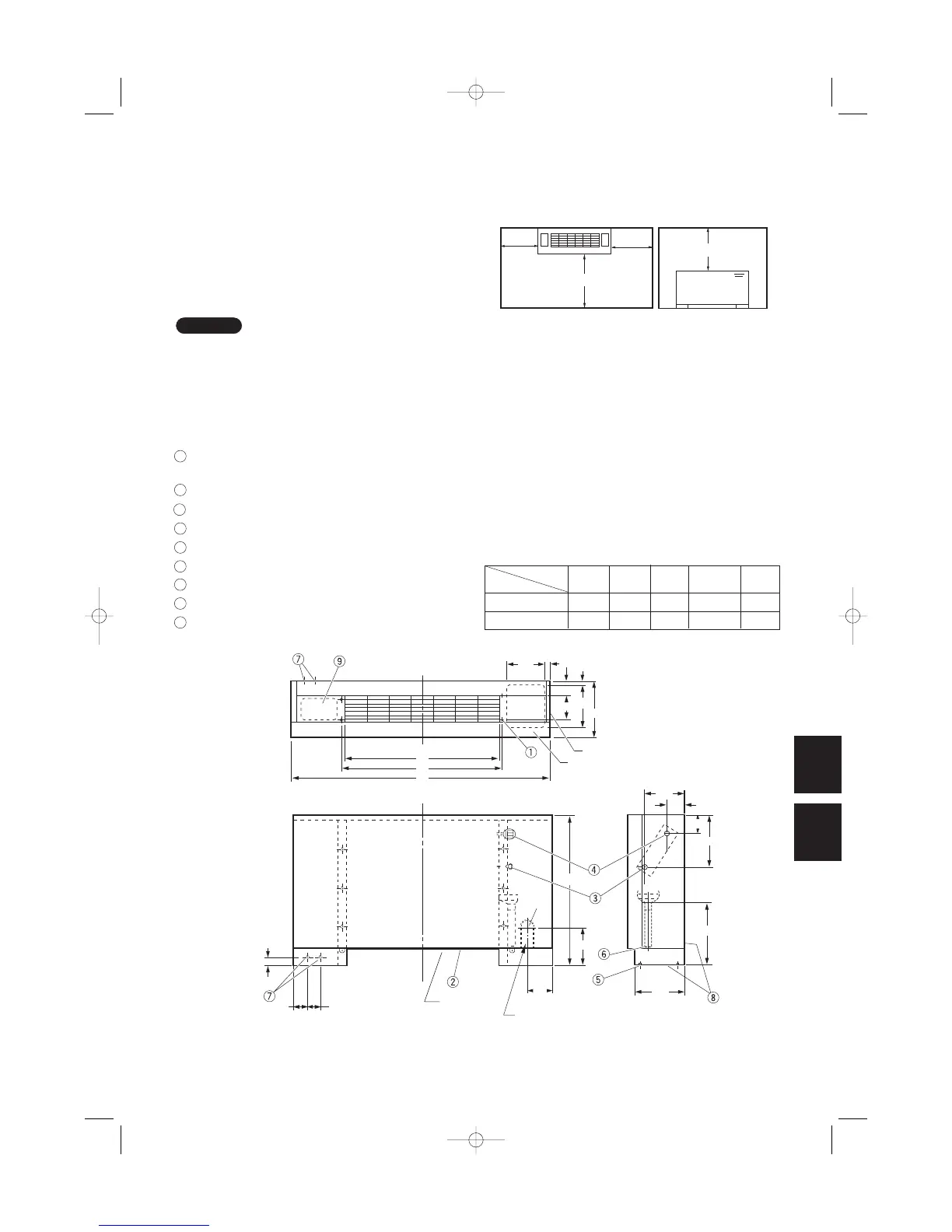

3-40. Dimensions and Part Names
Floor-Standing Type (AFS Type)
4-ø12 holes (for fastening the indoor unit to the
floor with screws)
Air filter
Refrigerant connection outlet (liquid tube)
Refrigerant connection outlet (gas tube)
Level adjusting bolt
Drain outlet (20 A)
Power cord outlet (downward, rear)
Refrigerant tubing outlet (downward, rear)
Location for mounting the remote controller (remote
controller is attachable in the room)
9
8
7
6
5
4
3
2
1
NOTE
Fig. 3-122
Fig. 3-123
min.
10 cm
min. 100 cm
min.
10 cm
min. 100 cm
Horizontal view Vertical view
36
54 54
161
26
15
57
100
177
230
615
25 R
155
107
205
260
213
76
67
156
C
B
A
Side panel
Refrigerant tubing space for
downward tubing
Air inlet
Rear-tube outlet
Air outlet
Table 3-8
Type
Length
A B C Liquid Gas
tube tube
22, 28, 36 1065 665 632 9.52 12.7
56, 73 1380 980 947 9.52 15.88
Unit: mm
Unit: mm
