Argo R410A - Page 70

AFS
AFNS
70

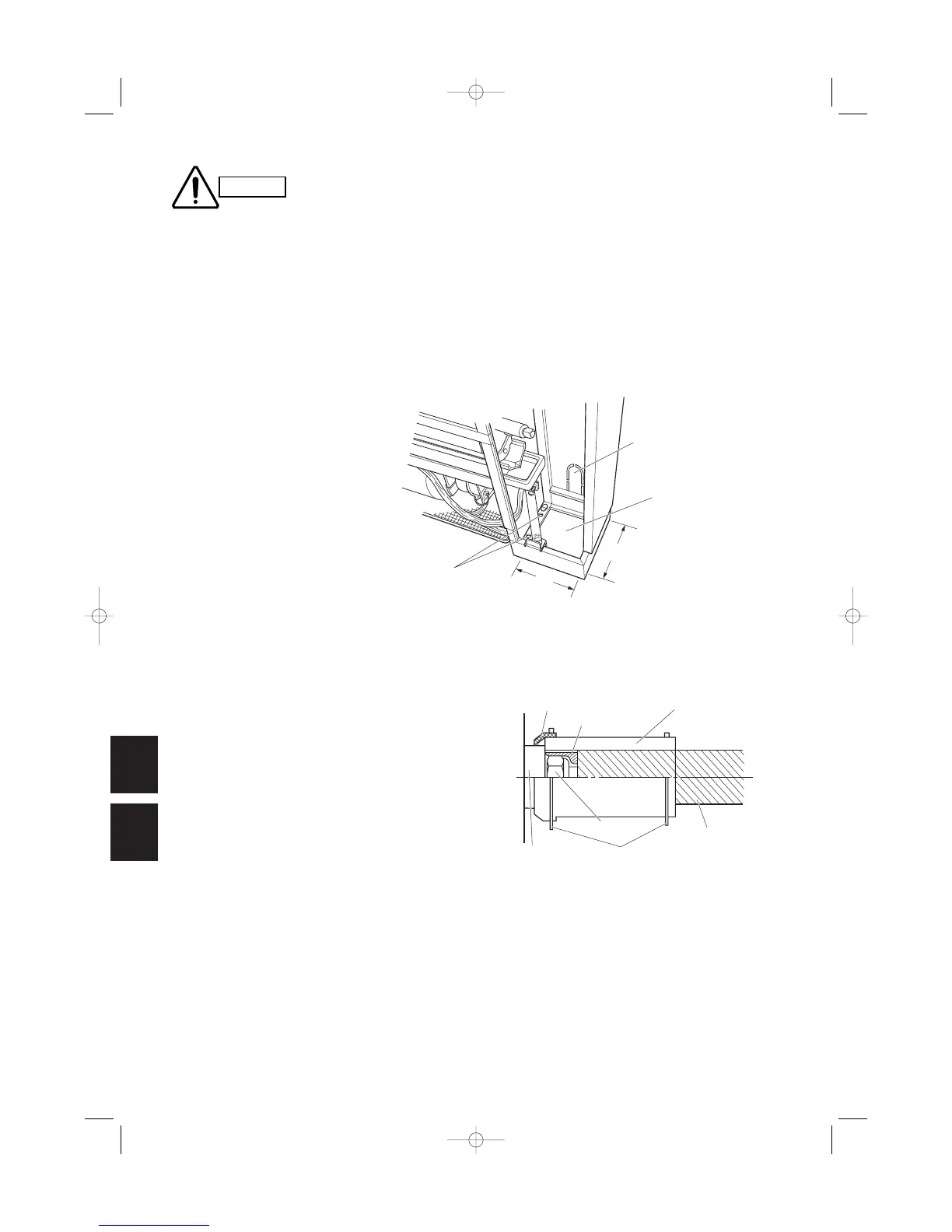

Fig. 3-127
Fig. 3-128
CAUTION
Insulate both gas and
liquid tubes.
 To insulate tubes
(1) Wrap the flare nuts with the supplied white insulat-
ing tape.
(2) Wrap the flare nuts with the supplied flare insula-
tor.
(3) Fill the clearance between the union insulator and
flare insulator with black insulating tape. Fasten
both ends of the flare insulator with the supplied
vinyl clamps.
167
177
Holes for fixing the
unit to the floor
Rear-tube outlet
Refrigerant tubing space
for downward tubing
Insulating tape (black)
Insulating tape (white)
Flare insulator
Insulator
Flare nut
Vinyl clamps
Insulating tape
Unit: mm
