Chapter 3: Accommodating Other Tub
ing Sizes
40
NOV CTES
Argus TubeSpec User Guid
e
f.

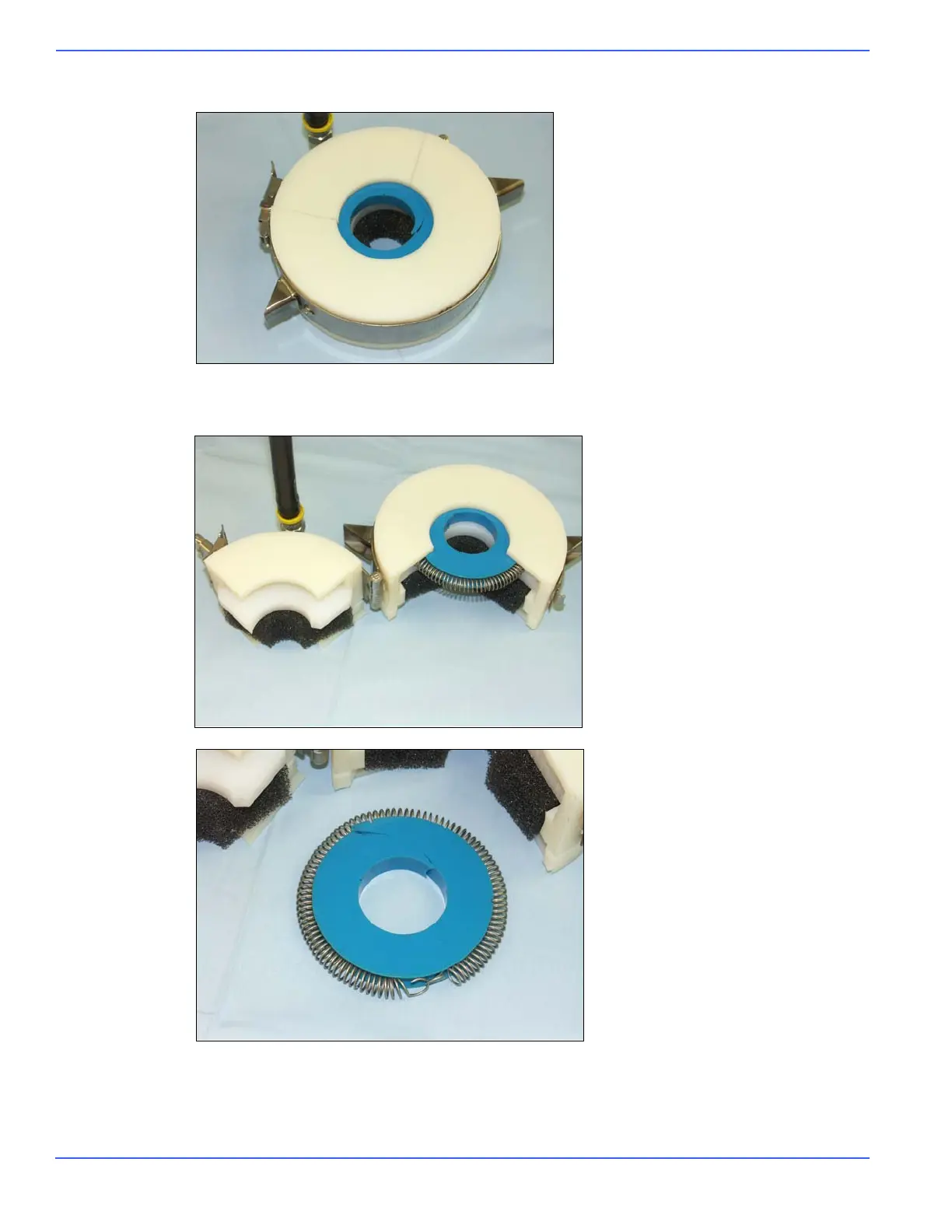

On the oiler assembly
, change the inner bearin
g and polyurethane scraper to accommodate the
alternate tubing size.
g.
Release the side-latch on the oiler assembly
, open
it, and remove the blue
polyurethane scraper and
spring from the oiler housing.
h.
Carefully (to avoid pinch
ing of fingers and/or bodily in
jury from the spring if it flies free) unho
ok
and remove the spring
from the scraper ring.
47
49
Table of Contents
Default Chapter
2
Contact Us
2
United States
2
United Kingdom
2
Middle East
3
Table of Contents
5
Chapter 1
9
Introduction to the Argus Tubespec
9
About the Argus Tubespec
10
Tubespec Features
11
Tubespec Specifications
11
Tubing Information
11
System Capabilities
12
Mechanical Information
12
Control Box
12
Lube Tank Assembly
12
Measuring Head
12
Electrical Information
13
Control Box
13
Lube Tank Assembly
13
Measuring Head
13
System Requirements
14
Chapter 2
15
Overview of the Argus Tubespec System
15
General System Description
16
The Tubespec Measuring Head
17
The Tubespec Packer Pressure-Control System
22
Packer Elements and CT Guide Rings
24
The Tubespec Electronics Control Box
24
The Tubespec Mounting System
25
Mounting Bracket
26
The Tubespec Lubrication System
27
Oiler Assembly
27
Oiler Assembly Maintenance and Safety Practices
30
Lube Tank Kit
31
Lube Tank Features
37
Connecting Hoses to the Lube Tank Kit
39
Lube Tank Kit Installation
39
Lube Tank Kit Maintenance and Safety Practices
40
Parts Lists Not Provided Elsewhere
41
Argus Tubespec Zone II/Hazardous-Area-Certified Parts (with External Oiler)
41
Expendable Items and Tools
41
Chapter 3
43
Accommodating Other Tubing Sizes
43
Overview
44
Altering the Tubespec to Accommodate an Alternate Tubing Size
45
Chapter 4
51
Argus Tubespec Setup
51
Safety and Environmental Information
52
Acoustic Gel Application
52
Pre-Job Setup
53
Applying Acoustic Gel
53
Connecting Cables
53
Powering up the Tubespec
54
Pre-Testing on the Ground Prior to Mounting
54
Chapter 5
55
Mounting the Tubespec on Coiled Tubing
55
General Information
56
Items Required for Mounting
56
Tools Required for Mounting
56
The Mounting Process
56
Chapter 6
61
Using Orionnet Software
61
Installing Orionnet Software
62
Using the Orionnet Configuration Utility
63
Updating the Default Configuration
63
Hiding Channel Data
66
Calibrating the Tubespec
66
Proximity Scaling Calibration Method
68
Ultrasonic Sensor-Offset Calibration Method
69
Proximity Offset Calibration Method
70
Using Tubespec Views
71
Using the View Designer
71
Using the Tubespec Chart Control
71
Working with the Chart-Plotting Area
72
Setting the Chart Plotting-Area Properties
72
Adjusting Channel-Scaling
74
Reviewing Data
75
Using the Chart Toolbar
75
Zooming in and out on the Chart-Plotting Area
75
Reviewing Historical Data
76
Working with the Sensor-Array Display
77
Signal Quality and Direction Controls
79
Lube Tank Status/Warning
80
Working with Chart-Legend Data
81
Monitoring Alarms and Warnings
81
Using the Tubespec Probe-Data View
82
Using the Tubespec Waveform View
83
Using Orionnet Reporting
84
Chapter 7
87
Maintenance and Care of the Tubespec
87
Wear Items
88
Post-Job Checklist
88
Measuring Head
88
Control Box and Cables
88
Lube Tank, Oiler-Assembly Controls, Packer-Pressure Controls
88
Transport Cases and Accessories
89
Cleaning the Measuring Head
89
Oiler Assembly Maintenance and Safety Practices
89
Lube Tank Kit Maintenance and Safety Practices
90
Acoustic Gel Application
90
Appendix A
91
Control-Box Electrical Schematic
91
Lube Tank Kit: Hydraulic Control Valve Schematic
93
Lube Tank: Ignition Hazard Assessment
95
