Chapter 6: Using OrionNET Software
72 NOV CTES Argus TubeSpec User Guide

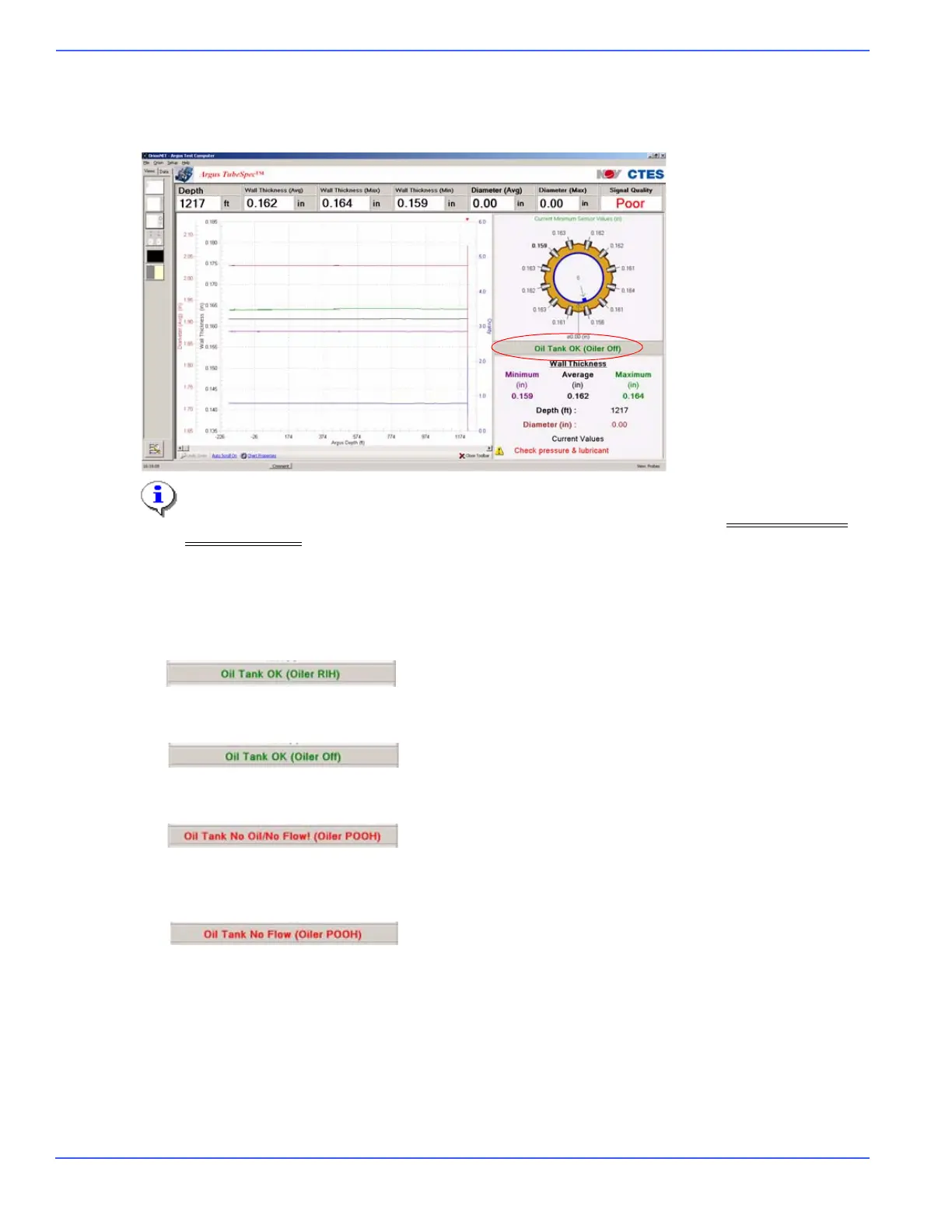

Lube Tank Status/Warning
The Oil Tank Status banner box informs the user of the directional status of the tubing and the lubricant
status of the tank.
This status/warning box is not related to the signal-quality status/warning described in Signal Quality and
Direction Controls.
Red text indicates a tank problem; green text indicates normal operation.
Lubricant statuses include:
1. Oil flowing to measuring head and tank level is okay; tubing is running in-hole.
2. Oil tank level is okay; lubrication is off.
3. Oil tank is out of lubricant; no lubricant flowing to the oilers (add lubricant to the lube tank).
4. Oil tank level is okay; no lubricant is flowing to the oilers (possible causes: air supply disrupted; oiler
lines not connected; air regulator set to low).
