Appendix D: Rear Panel

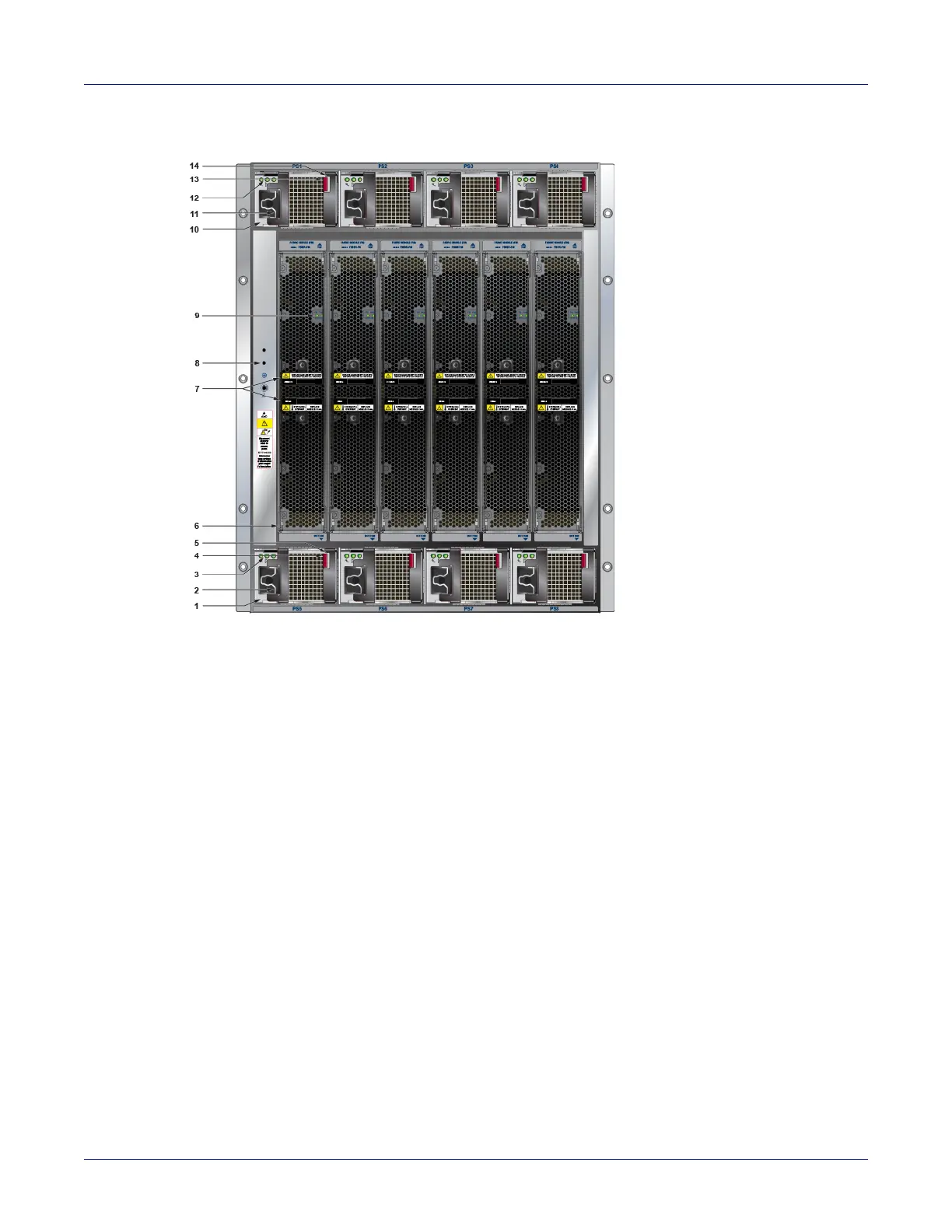

Figure D-2: DCS-7508N rear panel (fully populated)
1 PSU bottom row (PS5) 6 Fabric module 11 Power cord clip (optional)
2 Power cord clip (optional) 7 Fabric module ejector handles 12 Status LEDs (PS1)
3 Status LEDs (PS5) 8 Chassis ground (secondary) 13 Ejector button
4 Ejector button 9 Fabric module status LEDs 14 Release lever
5 Release lever 10 PSU top row (PS1)
To Next Page
