Ariston CLAS - Right Hydraulic Block

Training manual CLAS
Pag. 24 di 71

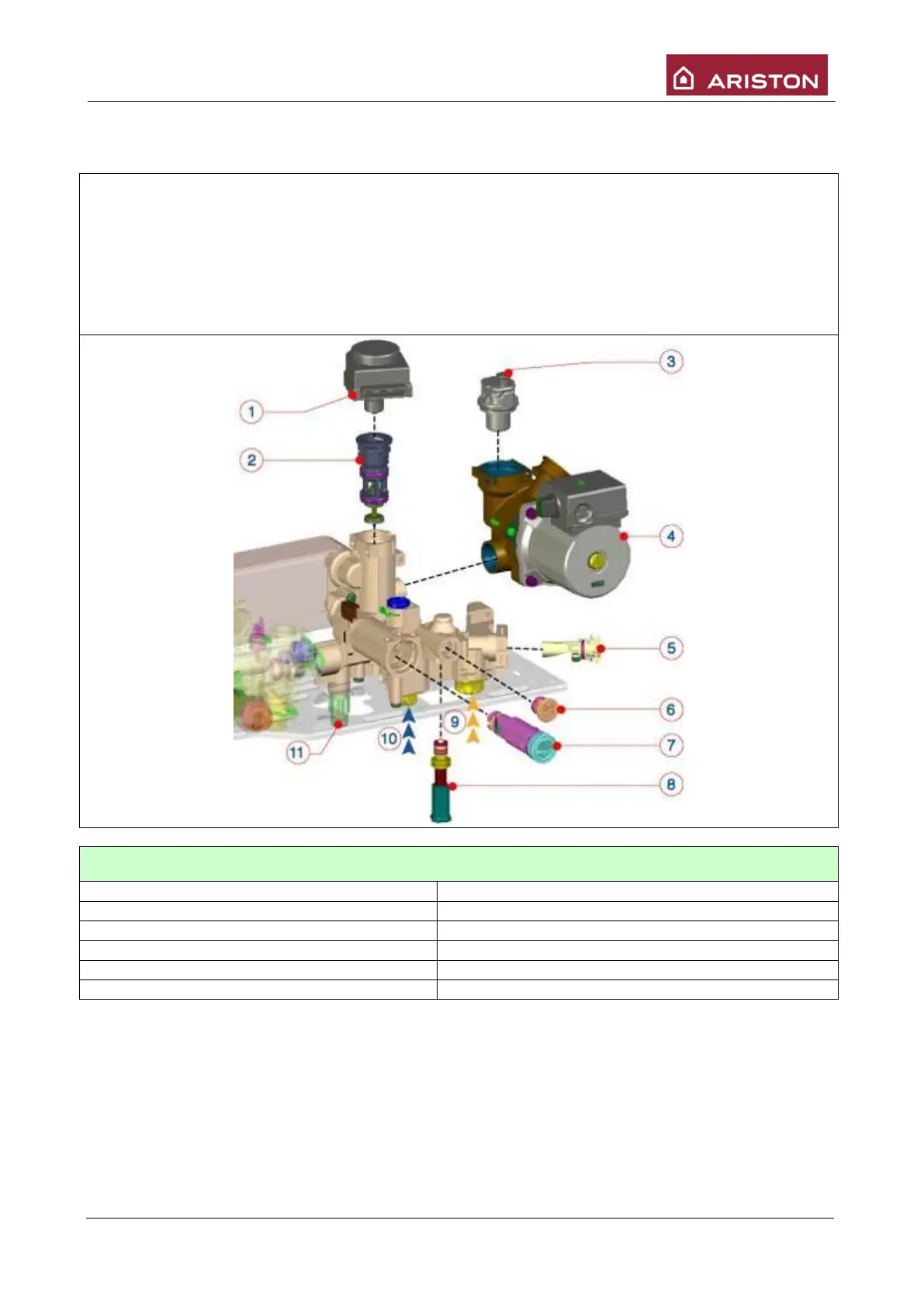

4.1 Right hydraulic block
Composite block with integrated functions :
- CH and DHW filter
- Electrical diverter valve
- All components fitted by clips
- Pump unit with deareator valve
- Brass connectors for installation
- Filling tap
LEGEND
1. 3-way valve motor
7. Domestic Hot Water flow switch
2. 3-way valve
8. Filling tap
3. deareator valve
9. CH return
4. Pump
10. Inlet DHW cold water
5. CH filter
11. CH draining tap
6. Cap
