4.14 TEMPERATURE PROBE
To check the delivery and return temperature use the two contact sensor. To read the sanitary water
temperature the immersion sensor located on the sanitary outlet is used.
 If the NTCs sensor does not work properly the temperature will be checked by sensor NTC2.
 If the NTC1 sensor does not work properly the antifreeze function will be checked by sensor NTC2 (only
pump circulation).
IMPORTANT!!!! Do not use conducting paste for the contact sensors because they alter the resistance
value.
PROBE ERROR CODES
2 01
NTCs sanitary outlet probe open or short circuit
1 10
NTC1 heating delivery probe open or short circuit
1 12
NTC2 heating return probe open or short circuit
TEMPERATURE (°C)
RESISTANCE (kOmh)
0
27
10
17
20
12
30
8
40
5
50
4
60
3
70
2
80
1,5

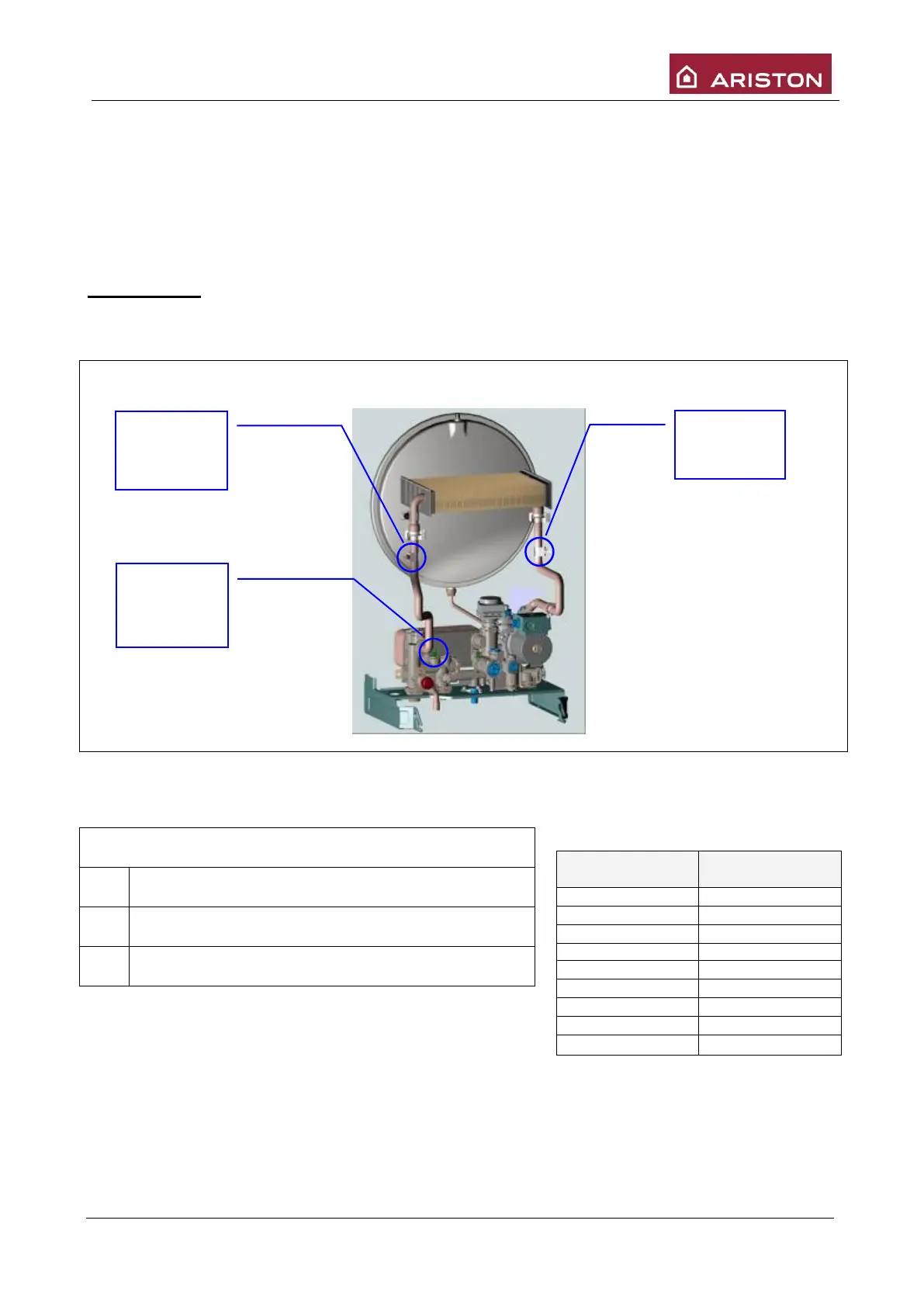

NTC1
Heating
delivery
NTC2
Heating
return
NTCs
Sanitary
outlet (till
31/07/2008)
