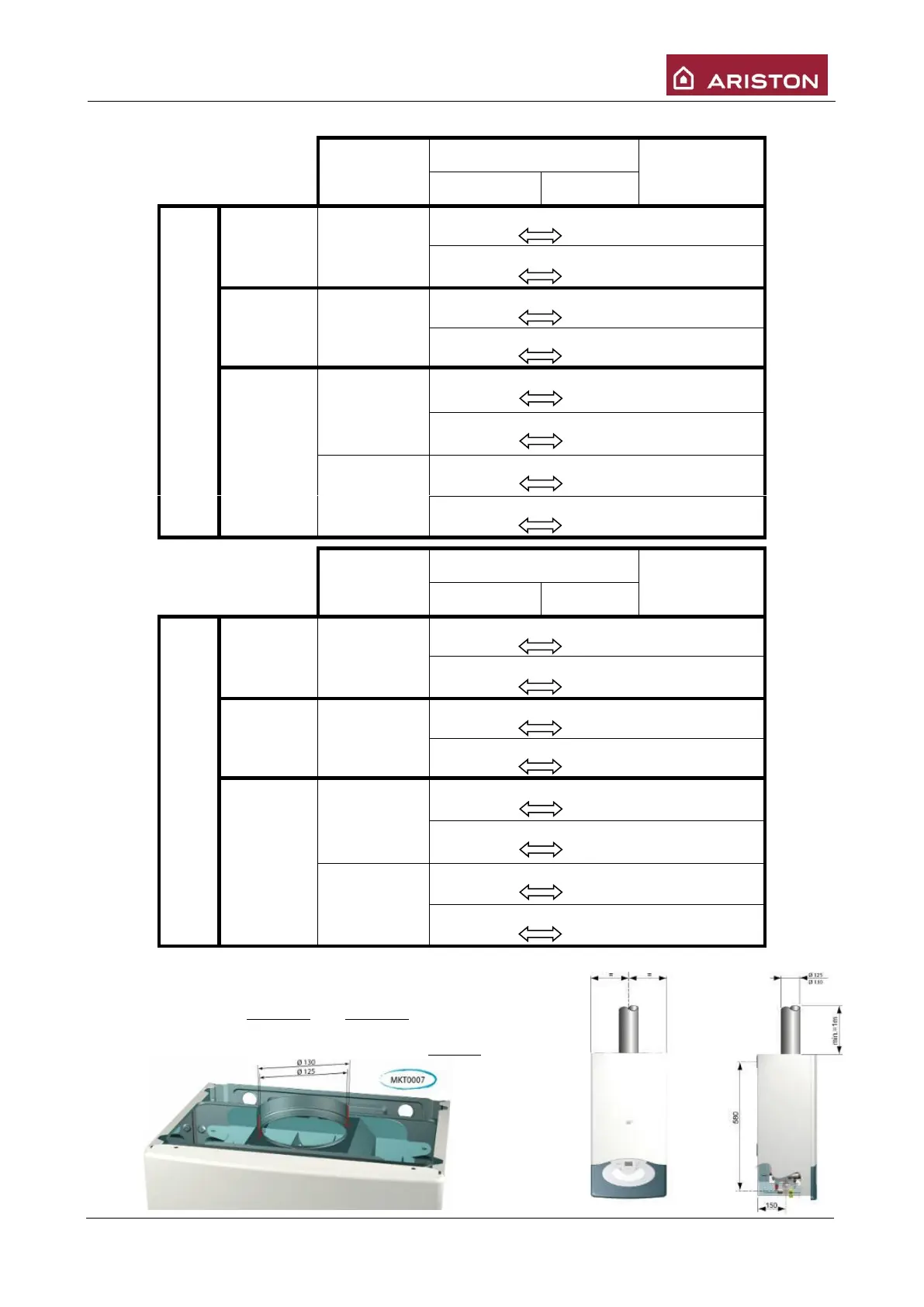

5.10 EXHAUST SYSTEMS (CF open chamber)
The boiler so that both Ø130mm and Ø125mm smoke exhausts can
be assembled on it (without any adapters). With both diameters the
minimum length of the smoke exhaust is equal to 1 meter.
TYPE OF
EXHAUST
Length (L)
FUME
DIAPHRAME
[mm]
from [m]
to [m]
24 kW FF
(from March 2008)
60/100
COAXIAL
SYSTEMS
C12,C32,C42
0,5
0,75
 Ø44
0,75
4
 NO
80/125
COAXIAL
SYSTEMS
C12,C32,C42
0,75
3
 Ø44
3
11
 NO
80/80 SPLIT
SYSTEMS
C12, C32,C42
(air/flue)
0,5 / 0,5
9 / 9
 Ø44
9 / 9
20 / 20
 NO
C52,C82
(Air/Flue)
1 / 0,5
1 / 23
 Ø44
1 / 23
1 / 44
 NO
TYPE OF
EXHAUST
Length (L)
FUME
DIAPHRAME
[mm]
from [m]
to [m]
28 kW FF
60/100
COAXIAL
SYSTEMS
C12,C32,C42
0,5
0,75
 Ø44
0,75
4
 NO
80/125
COAXIAL
SYSTEMS
C12,C32,C42
0,75
3
 Ø44
3
11
 NO
80/80 SPLIT
SYSTEMS
C12,C32,C42
(Air/Flue)
0,5 / 0,5
11 / 11
 Ø44
11 / 11
24 / 24
 NO
C52,C82
(Air/Flue)
1 / 0,5
1 / 27
 Ø44
1 / 27
1 / 50
 NO
