4.2 Left hydraulic block
Composite module for CH and domestic hot water outlet.
Components integrated in the block :
- immerged DHW NTC
- CH safety valve 3bar
- Automatic by-pass
- Brass connections
- All copper pipes connected by clips

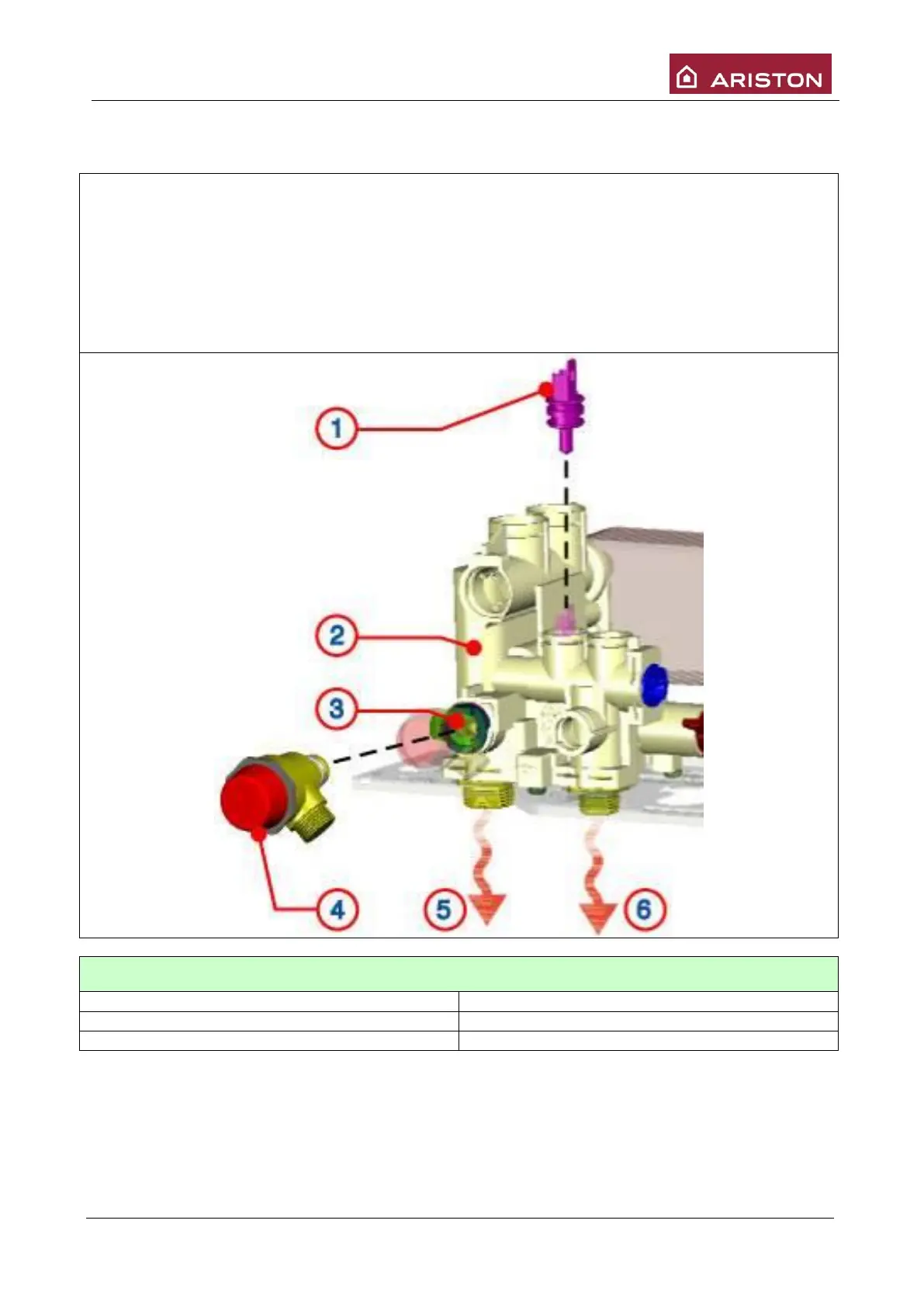

LEGEND
1. DHW Temperature sensor
4. Safety valve
2. Left hydraulic bloc
5. Central heating flow
3. By-pass
6. Domestic water flow
