Ariston CLAS - Open Chamber Assembly View (Cf)

Training manual CLAS
Pag. 6 di 71

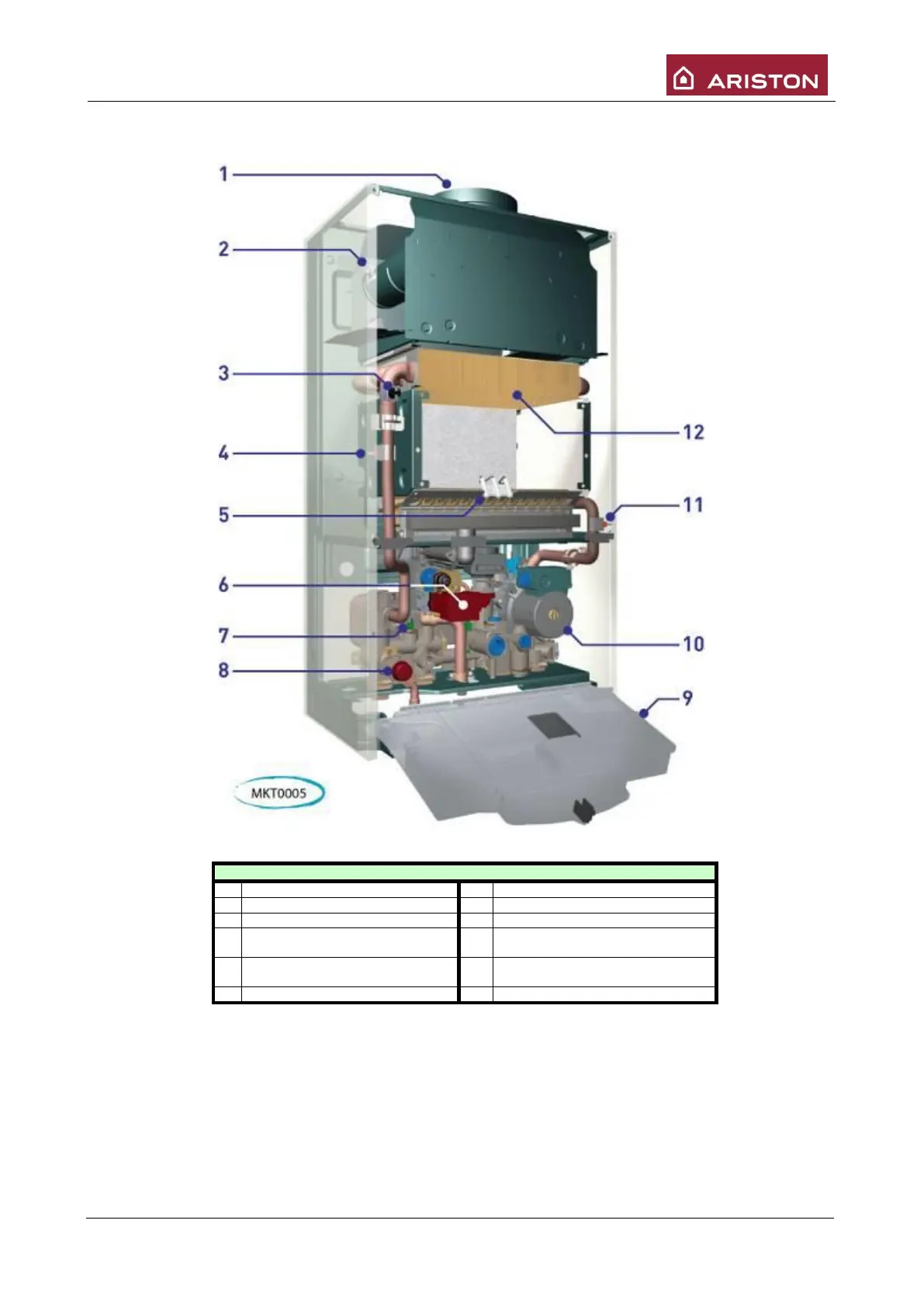

1.3 OPEN CHAMBER ASSEMBLY VIEW (CF)
CAPTION
1
Flue Hood
7
NTCs sanitary temperature probe
2
Flue Control Thermostat
8
3 bar safety valve
3
Overheat Thermostat
9
Instrument panel
4
NTC1heating delivery temperature
probe
10
Pump
5
Burner and electrodes
11
NTC2 heating return temperature
probe
6
Gas valve and spark generator
12
Main Heat exchanger
