Ariston CLAS - EXHAUST SYSTEMS (Sealed Chamber FF)

Training manual CLAS
Pag. 48 di 71
5.9 EXHAUST SYSTEMS (sealed chamber FF)
The boiler is arranged for both coaxial smoke exhaust 60/100mm and for the split 80/80mm (two ways to
connect the intake pipes). Combustion analysis intakes are built-in the smoke exhaust neck.

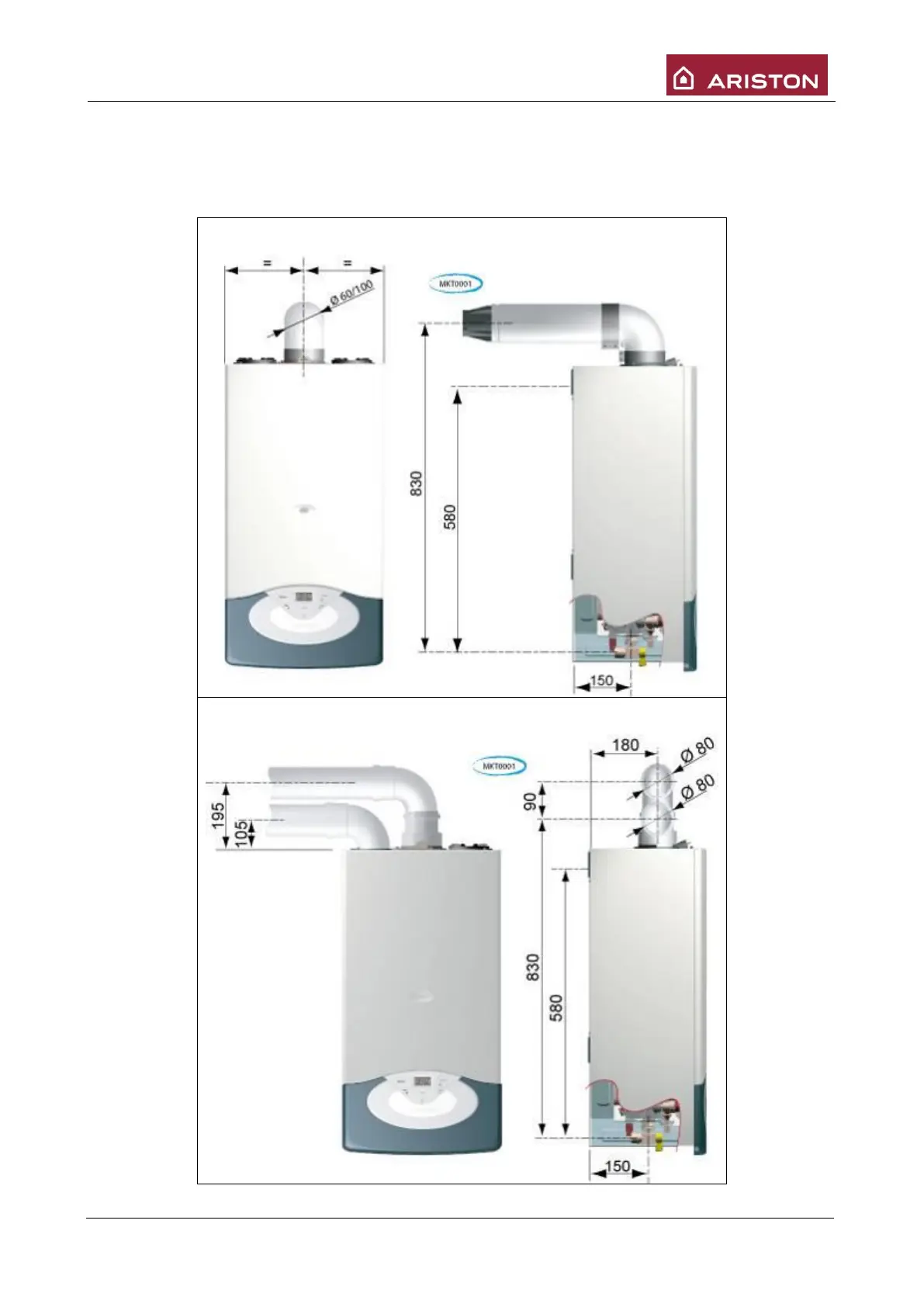

COAXIAL EXHAUST SYSTEM
SPLIT EXHAUST SYSTEM
