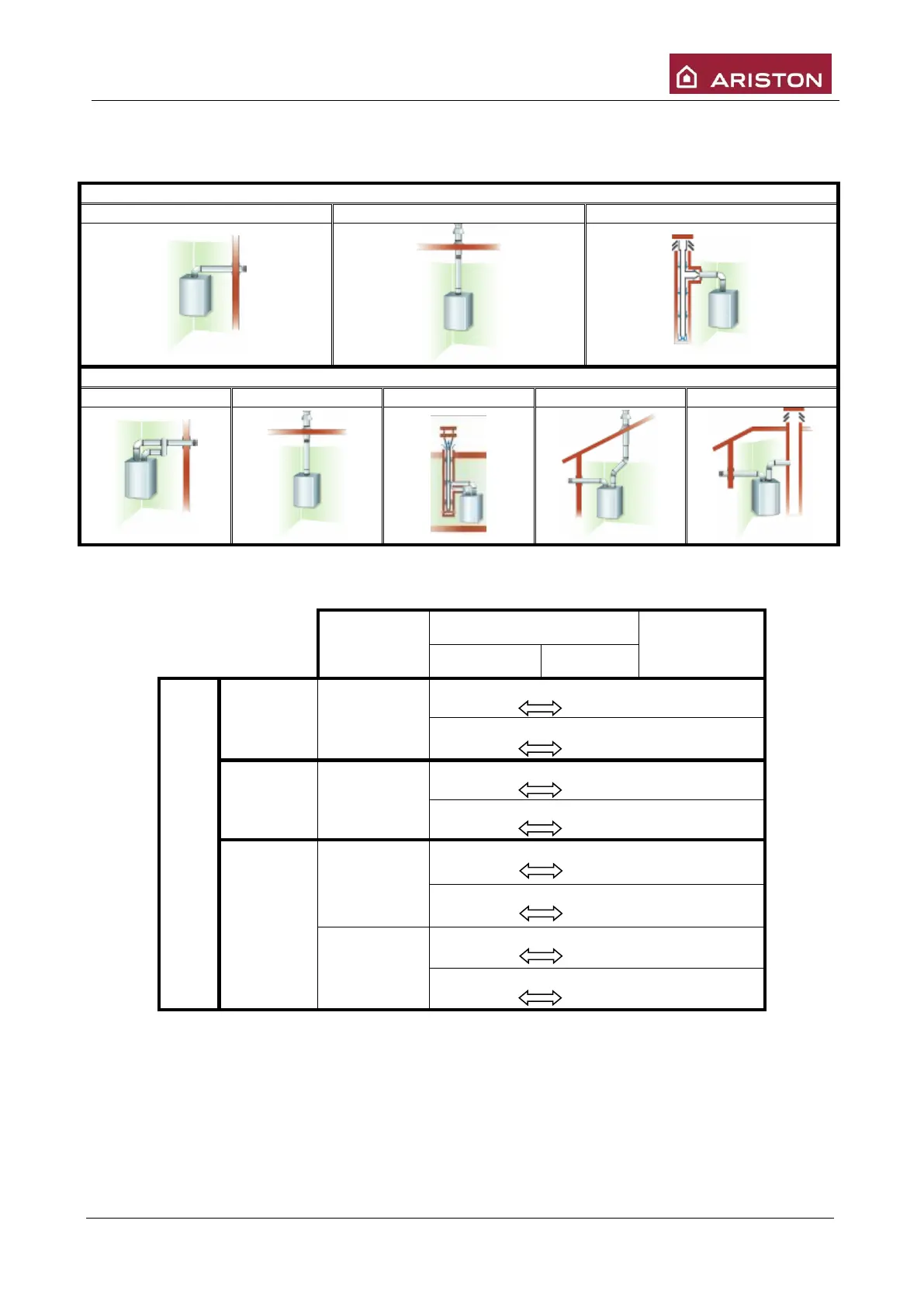

COAXIAL 80/100 e 80/125
C12
C32
C42
TWIN PIPE 80/80
C12
C32
C42
C52
C82
TYPE OF
EXHAUST
Length (L)
FUME
DIAPHRAME
[mm]
from [m]
to [m]
24 kW FF (to February 2008)
60/100
COAXIAL
SYSTEMS
C12,C32,C42
0,5
0,75
 Ø44
0,75
4
 NO
80/125
COAXIAL
SYSTEMS
C12,C32,C42
0,75
3
 Ø44
3
11
 NO
80/80 SPLIT
SYSTEMS
C12, C32,C42
(air/flue)
0,5 / 0,5
15 / 15
 Ø44
15 / 15
26 / 26
 NO
C52,C82
(Air/Flue)
1 / 0,5
1 / 34
 Ø44
1 / 34
1 / 55
 NO
