installation &
operating instructions
Design Envelope 4200h & 4280
End Suction Horizontal Pumping Units
19
3.0 networking controls
For connection to the building automation system (bas), the
pump needs to be properly configured to the network. Ensure
the rs485 cable is connected to the controller board (fig.2.4).
Or if connecting to the bas via router, ensure that the rj-45
cable is connected to the controller board (fig. 2.4 ).

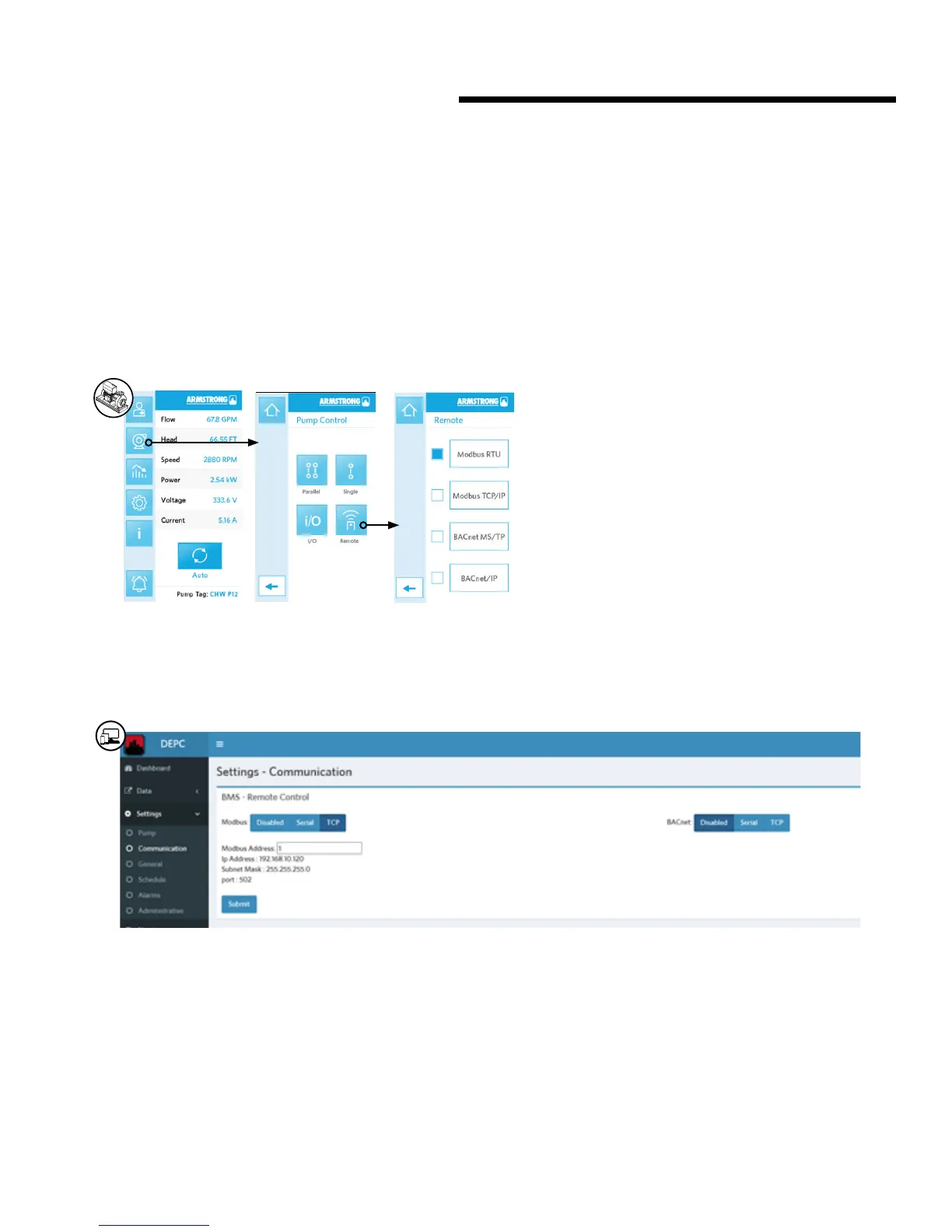

The pump controls can be configured from the touchscreen or
the webserver.
For BACNet ms/tp or tcp/ip: Enter the BACNet address, baud
rate, and unique device instance number (as applicable)
For Modbus rtu or tcp/ip: Enter the Modbus address, baud
rate, and parity stop bits (as applicable)
