installation &
operating instructions
Design Envelope 4322 & 4372
Tango Pumping Unit
14
Externals
Enclosure ip55 or ip66
Vibration test iec 60068-2-6
Max relative
humidity
95% (Non-condensing)
Operating ambient
temperature
-10:45°c
Storage ambient -40:60°c
Min. ambient
temperature at full
operation
-10°c
Altitude 1000m without derating, de-rate 1%
per 100m above 1000m
Maximum Altitude 4000m
Compliance with Standards
en 61800-5-1:
2007:a11:2021
Adjustable speed electrical power drive
systems. Safety requirements. Electrical,
thermal and energy.
en 61800-3:2018 Adjustable speed electrical power
drive systems. EMC requirements and
specific test methods.
en 60204-1:2018 Safety of machinery. Electrical
equipment of machines general
requirements. Uncontrolled stop
“Category 0”
ul 61800-5-1
Adjustable speed electrical power drive
systems - part 5-1: safety requirements -
electrical, thermal and energy
csa c22.2#274
Adjustable speed drives
2.3 electrical installation
2.3.1 power wiring

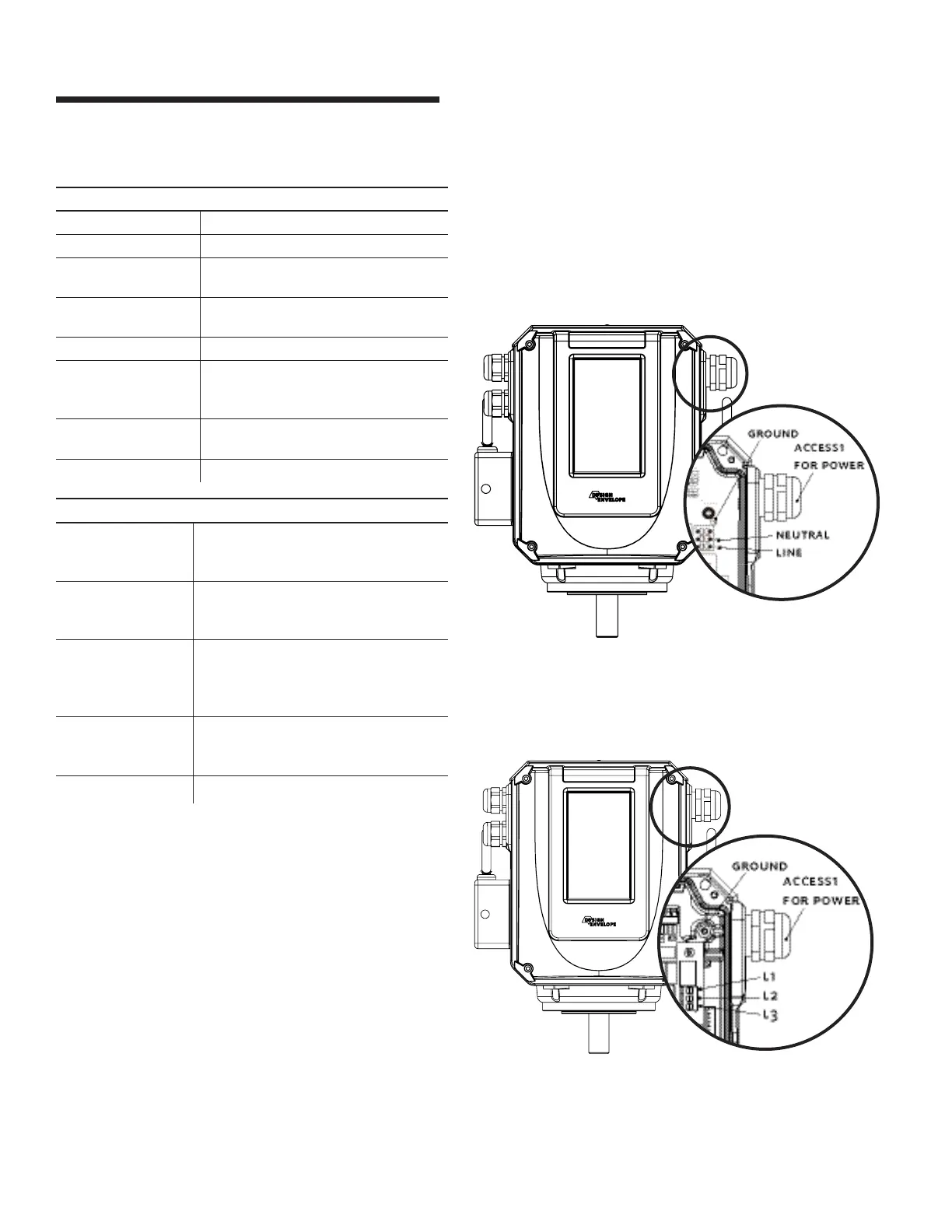

2.3.1.1 power wiring for frame 71 motors – 1 phase
Upper right corner of the motor. Use Access port #1 for power
wiring and ground.
2.3.1.2 power wiring for frame 71 motors – 3 phase
Upper right corner of the motor. Use Access port #1 for power
wiring and ground.
