installation &
operating instructions
Design Envelope 4322 & 4372
Tango Pumping Unit
24
3.0 networking controls
When connecting to a building automation system (bas), the pump needs to
be properly configured for the network.
For a BACnet ip or Modbus tcp connection, connect the network cable to the
rj-45 port, as shown in fig. 2.4.
For a BACnet ms/tp or Modbus RTU connection, connect the network cable
to the rs-485 ("Modbus") port, as shown in fig. 2.4.

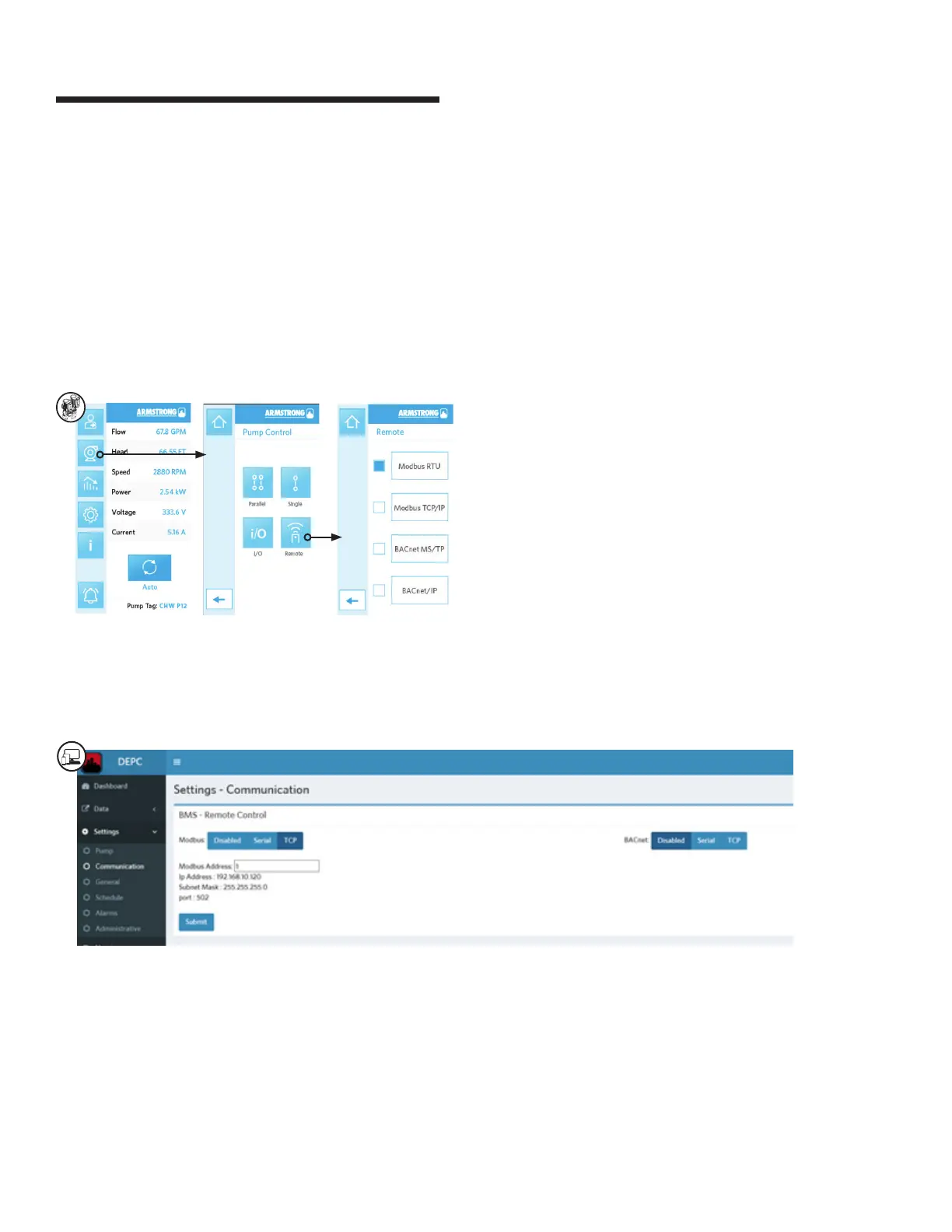

The bas settings can be configured through either the lcd, or Web Interface.
For BACNet ms/tp or tcp/ip: Enter the BACNet address, baud rate, and
unique device instance number (as applicable)
For Modbus rtu or tcp/ip: Enter the Modbus address, baud rate, and parity
stop bits (as applicable)
