Arris X5001 - Front Panel LED Indicators

11
X5001 USER GUIDE - 501-3327100

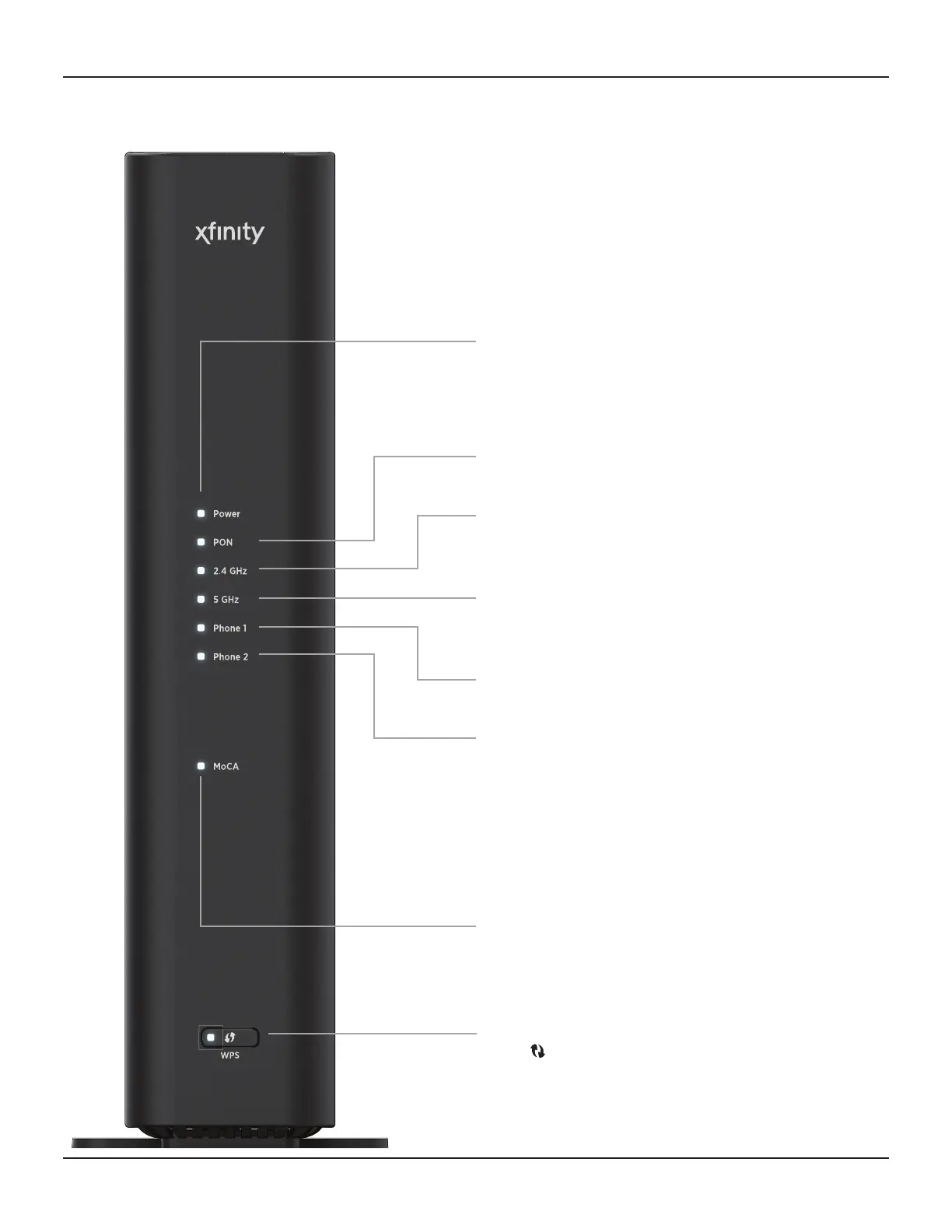

Power
Lights when the gateway is connected to the
power supply
PON
Lights when the bre-opc uplink connecon is enabled
2.4 GHz
Lights when a 2.4GHz Wi-Fi is enabled
Flashes when data is transming over the 2.4 GHz Wi-Fi
connecon
5 GHz
Lights when a 5GHz Wi-Fi is enabled
Flashes when data is transming over the 5 GHz Wi-Fi
connecon
Phone 1
Lights when a phone service is enabled
Flashes when a call is received or in progress
Phone 2
Lights when a phone service is enabled
Flashes when a call is received or in progress
MoCA
Lights when a MoCA connecon is enabled
Flashes when data is transming over the MoCA
network
WPS
Press to enable WPS
Lights when WPS is in operaon
Front Panel
INSTALLING THE GATEWAY (cont.)
