MAX1000 User Guide www.arrow.com
Page | 45 July 2017
The next step is to create a mux component. This mux will be used along with a push button on
the MAX1000 board to control the speed of the counter, where the counter outputs will be seen
on the LEDs.

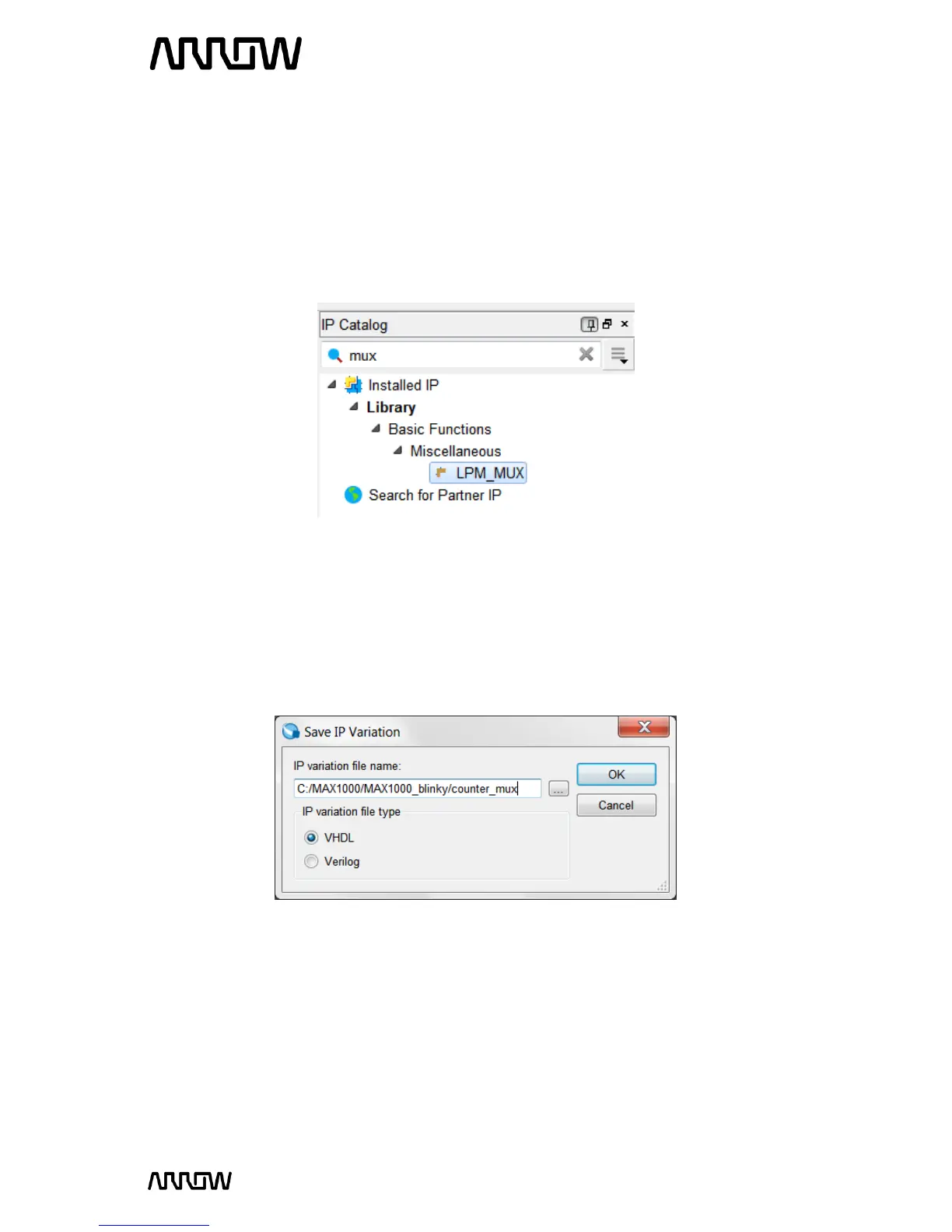

5.2.6.1 To create this mux, select IP Catalog and expand Basic Functions Miscellaneous and
select LPM_MUX or type mux in the search field.
5.2.6.2 Click “Add”.
5.2.6.3 In the Save IP Variation, enter the name of the counter_mux and the file type to be VHDL.
5.2.6.4 Click “OK”.
