12.6. Global: Sync

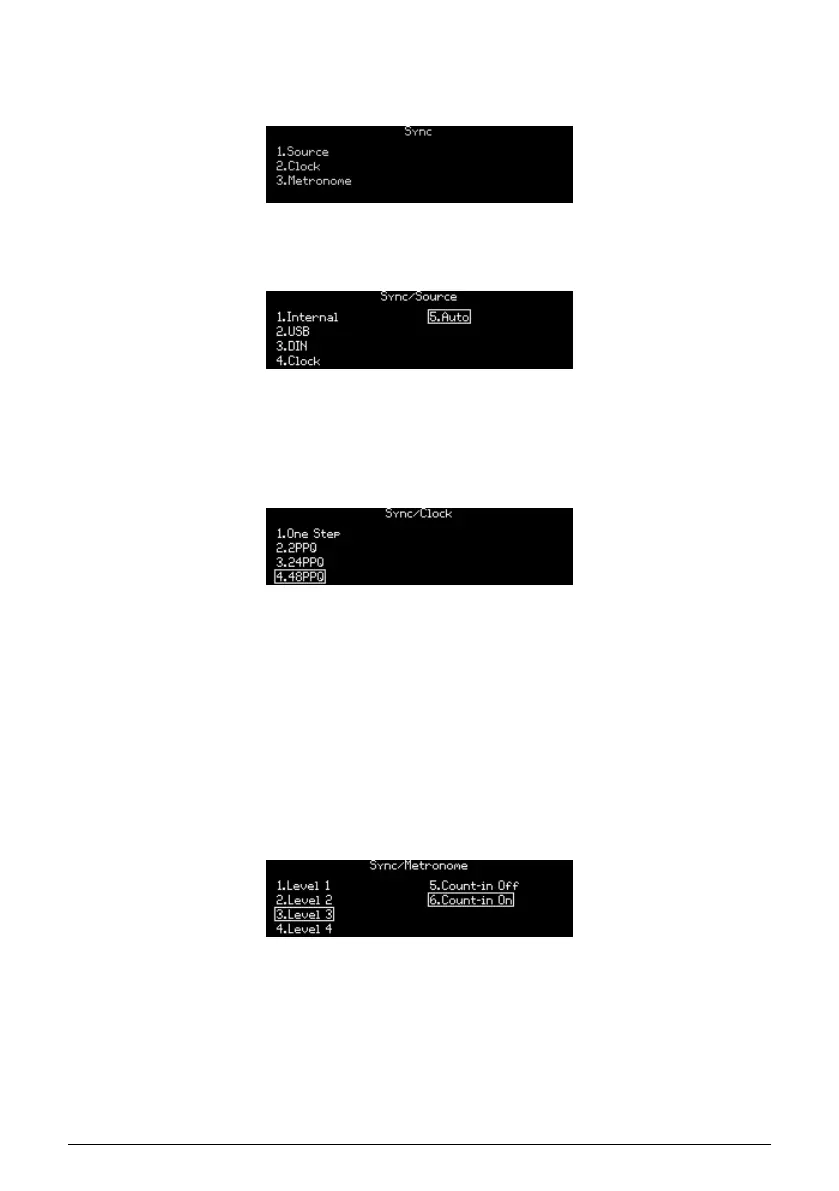

The Global / Sync category has three options, as pictured below.
12.6.1. Sync: Source
Use [Assign 1-5] to make a selection. Auto detects an incoming clock and syncs to that. If no
clock is present, the internal clock is selected automatically at the last known tempo.
12.6.2. Sync: Clock
Use [Assign 1-4] to select the clock rate that will be sent and received via the Sync jacks on
the rear panel. There are four options:
• One Step advances the Sequencer/Arpeggiator by one step with each clock
impulse that is received.
• 2PPQ sends and receives two pulses per quarter-note.
• 24PPQ sends and receives twenty-four pulses per quarter-note. This format is
used by Roland DIN sync.
• 48PPQ sends and receives forty-eight pulses per quarter-note.
12.6.3. Sync: Metronome
Use [Assign 1-4] to set the Metronome level. Use [Assign 5-6] to enable/disable the Count-in
feature.
Arturia - User Manual PolyBrute - Settings 95
