Page 28

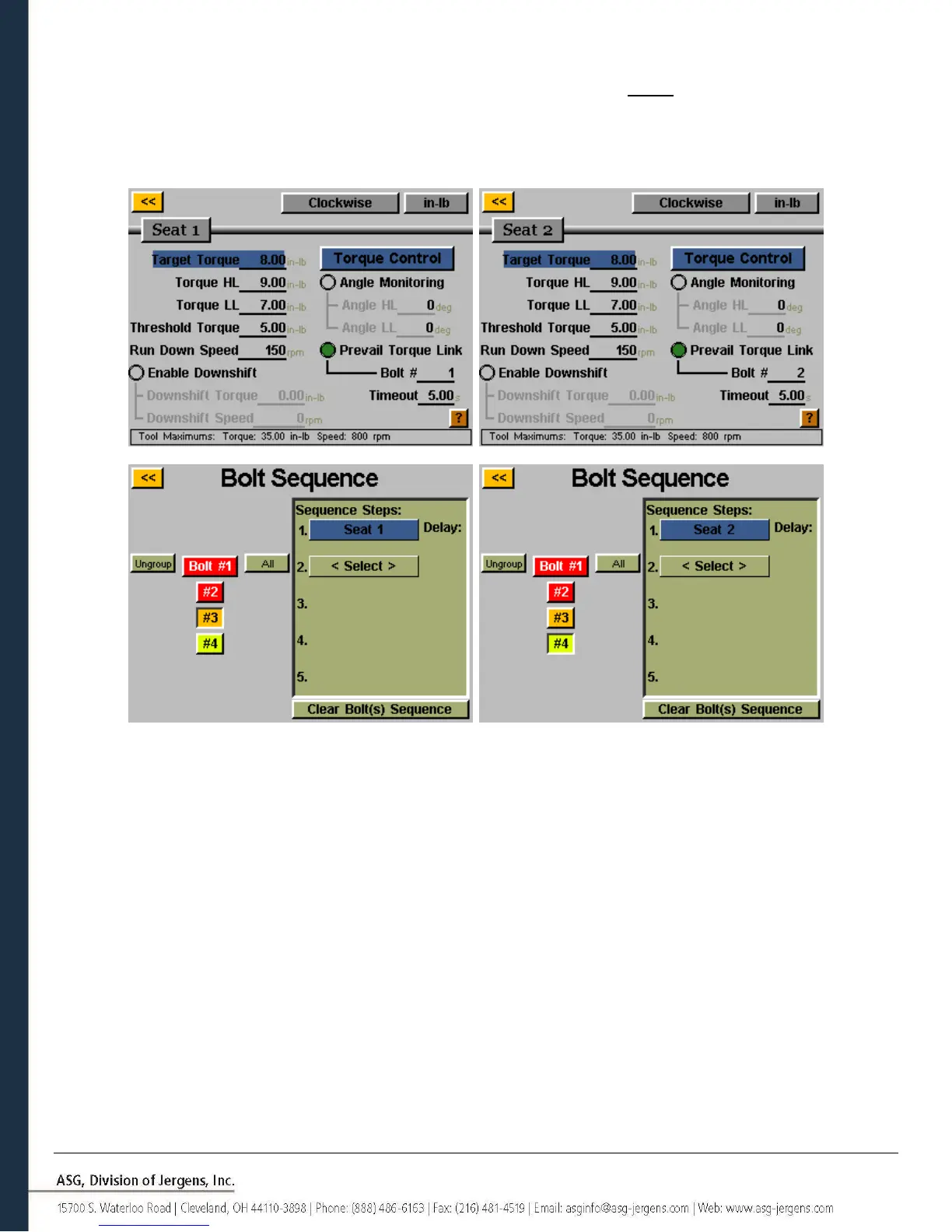

Set up (2) nearly identical Torque Control parameters for the final torque of 8 inlb except that the Prevail Torque Link
will be different. The parameter assigned to bolt #3 will have the Prevail Torque Link set to 1. The
parameter assigned to bolt #4 will have the Prevail Torque Link set to 2. Set the Bolt Sequences screen
accordingly for bolts 3 & 4.
The controller will perform the prevailing torque calculation for the 2 fasteners during the initial snug phase, then the
final torque will pull the original prevailing torque from memory, and also use it to compensate when
performing the final torque.
