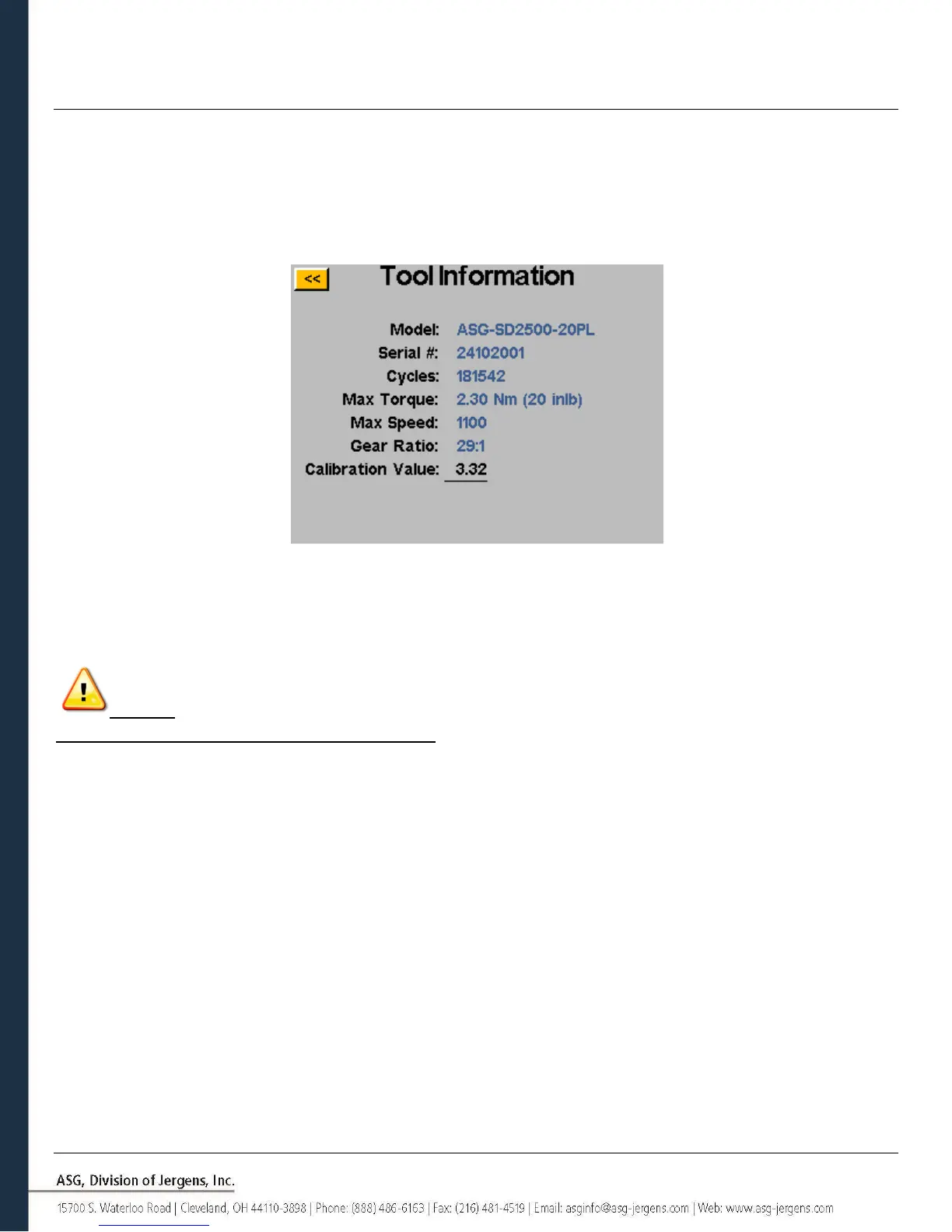

Tool Information Screen
This screen displays characteristics of the tool that is currently attached to the ASG-CT2500 controller such as:
• Model Number
• Serial Number
• Number of Cycles on the Tool
• Max Torque
• Maximum Speed
• Gear Ratio
• Calibration Value
All the information shown on the screen above is stored on the internal memory of the SD250 screwdriver itself, and
therefore travels with the tool when taken from one controller to another.
CAUTION: Tapping on the Calibration Value will take you to a screen where the value can be manually changed.
This screen is for qualified calibration technicians only. Improperly changing the calibration value of the tool could lead
to inaccurate torque readings and potential tool damage.
