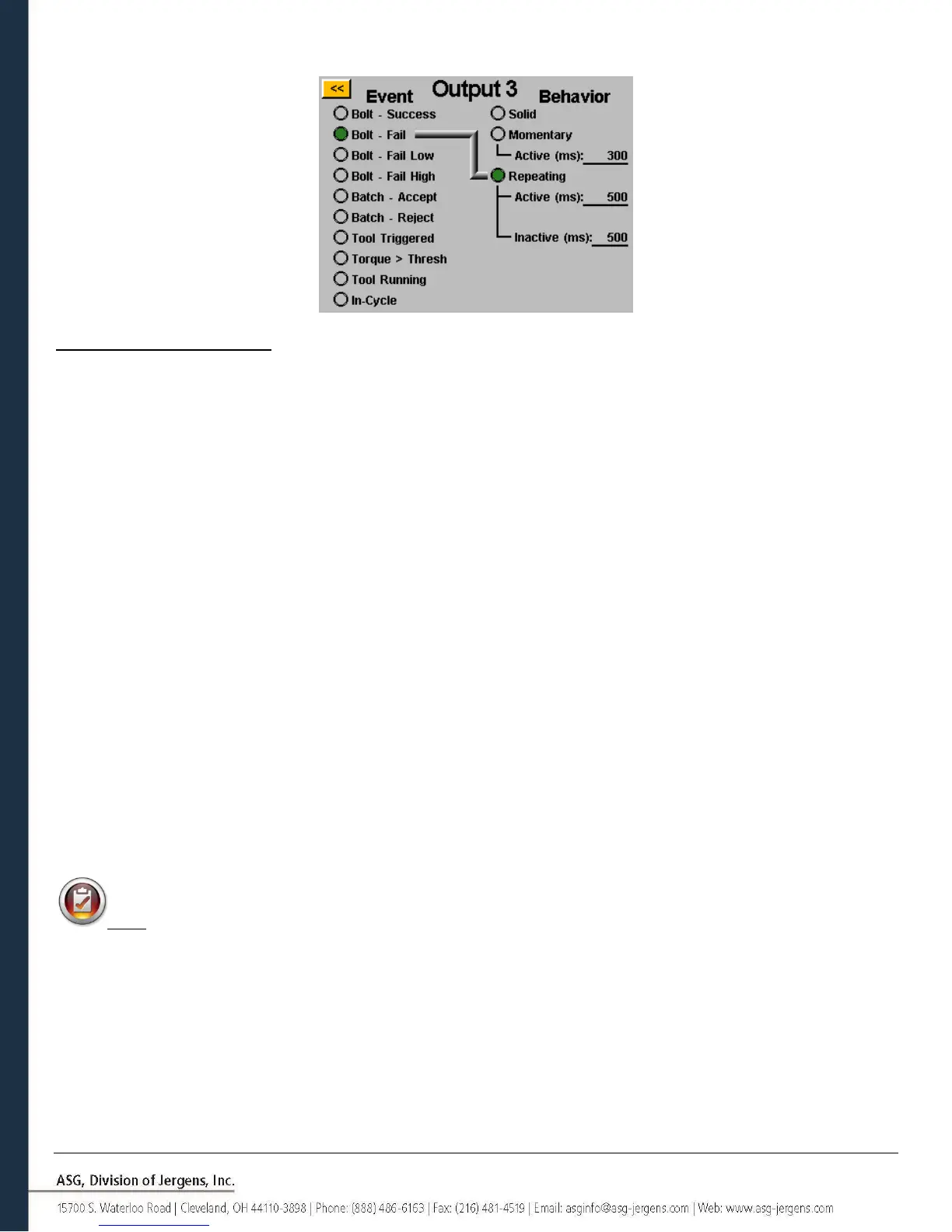

AVAILABLE OUTPUT CRITERIA:
• BOLT - SUCCESS: All torque and angle requirements fall within the predefined acceptable HL and LL ranges of
the programmed parameter
• BOLT – FAIL LOW: Any torque and/or angle requirement fell below the predefined acceptable LL ranges of the
programmed parameter
• BOLT – FAIL HIGH: Any torque or angle requirement fell above the predefined acceptable HL ranges of the
programmed parameter
• BATCH ACCEPT: All bolts or cycles required in the task are complete and within the acceptable ranges
• BATCH REJECT: Some portion of the task did not complete within acceptable parameters
• TOOL TRIGGERED: All triggering criteria as defined in the setup screen have been satisfied. This output is only
available as a solid output, not momentary or repeating. This output does not reset after a cycle is complete
until the trigger is released.
• TORQUE > THRESH: The current torque reading from the tool is greater than the programmed threshold torque
in the parameter being run. This output is only available as a solid output, not momentary or repeating
• TOOL RUNNING (GUI v2.5.6 and later): Tool motor is running. This output is only available as a solid output,
not momentary or repeating.
• TOOL IN-CYCLE (GUI v2.5.6 and later): Tool is currently running and involved in a bolt sequence. This output
will stay on in-between steps of a multi-parameter bolt sequence. This output is only available as a solid
output, not momentary or repeating.
Note: Ensure compatibility of the output receiving device with the user’s programmed signal duration. Signal
pulses less than 50ms could possibly be interpreted as noise by the receiving device.
