ASG ASG-SD2500 - Output Port Pinout (DB25 Male)

Page 40

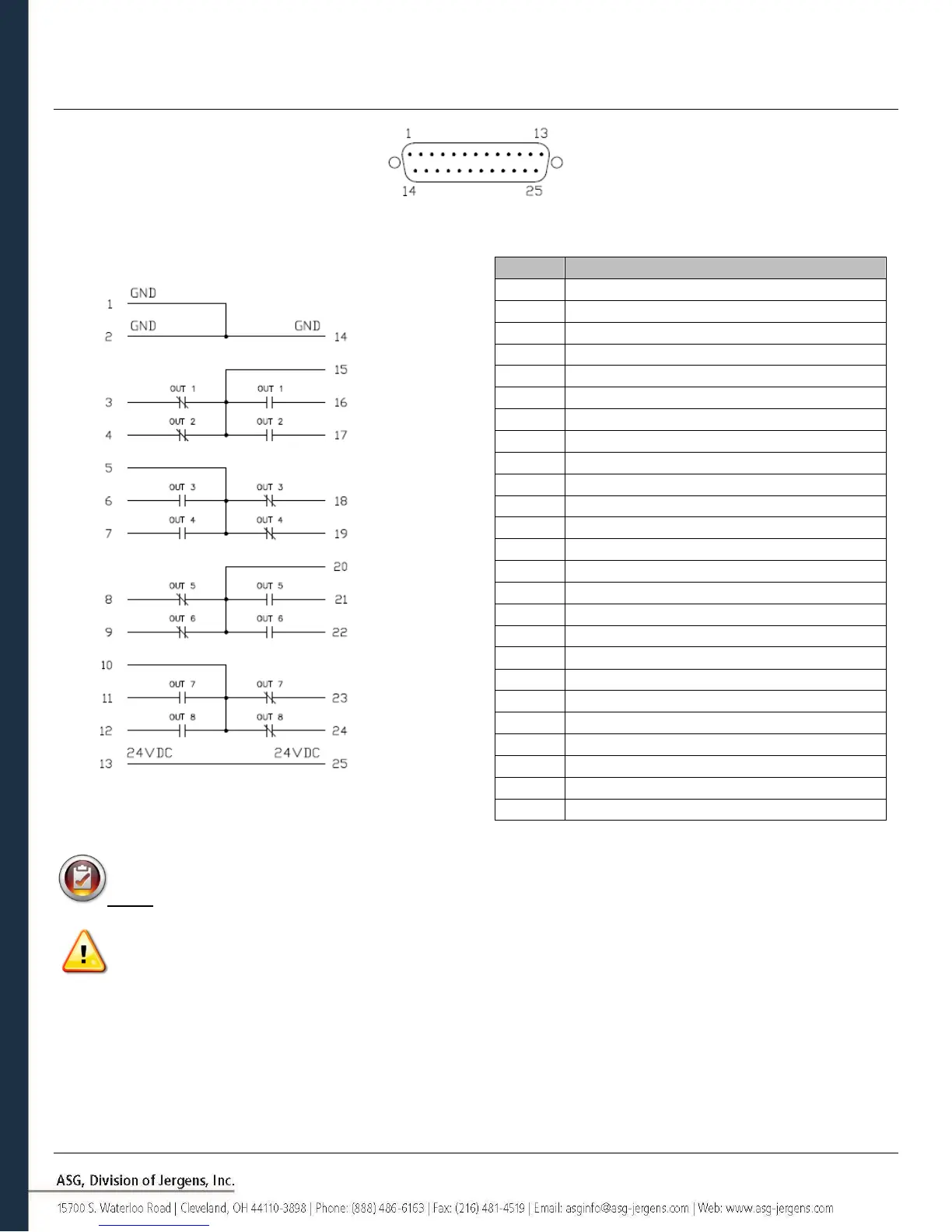

Output Port (DB25 Male)
Notes: Outputs are mechanical dry contacts – sealed relays.
Do not use CT2500 outputs to switch high inductive loads – damage to relays can occur.
PIN
Function
1
0 VDC (from internal power supply)
2
0 VDC (from internal power supply)
3
Output 1 – Normally Closed
4
Output 2 – Normally Closed
5
Common – Outputs 3 & 4
6
Output 3 – Normally Open
7
Output 4 – Normally Open
8
Output 5 – Normally Closed
9
Output 6 – Normally Closed
10
Common – Outputs 7 & 8
11
Output 7 – Normally Open
12
Output 8 – Normally Open
13
24 VDC (from internal power supply)
14
0 VDC (from internal power supply)
15
Common – Outputs 1 & 2
16
Output 1 – Normally Open
17
Output 2 – Normally Open
18
Output 3 – Normally Closed
19
Output 4 – Normally Closed
20
Common – Outputs 5 & 6
21
Output 5 – Normally Open
22
Output 6 – Normally Open
23
Output 7 – Normally Closed
24
Output 8 – Normally Closed
25
24 VDC (from internal power supply)
