Asiga MAX - Page 34

Asiga MAX User Guide
Copyright ASIGA © 2017 VERSION 1.04

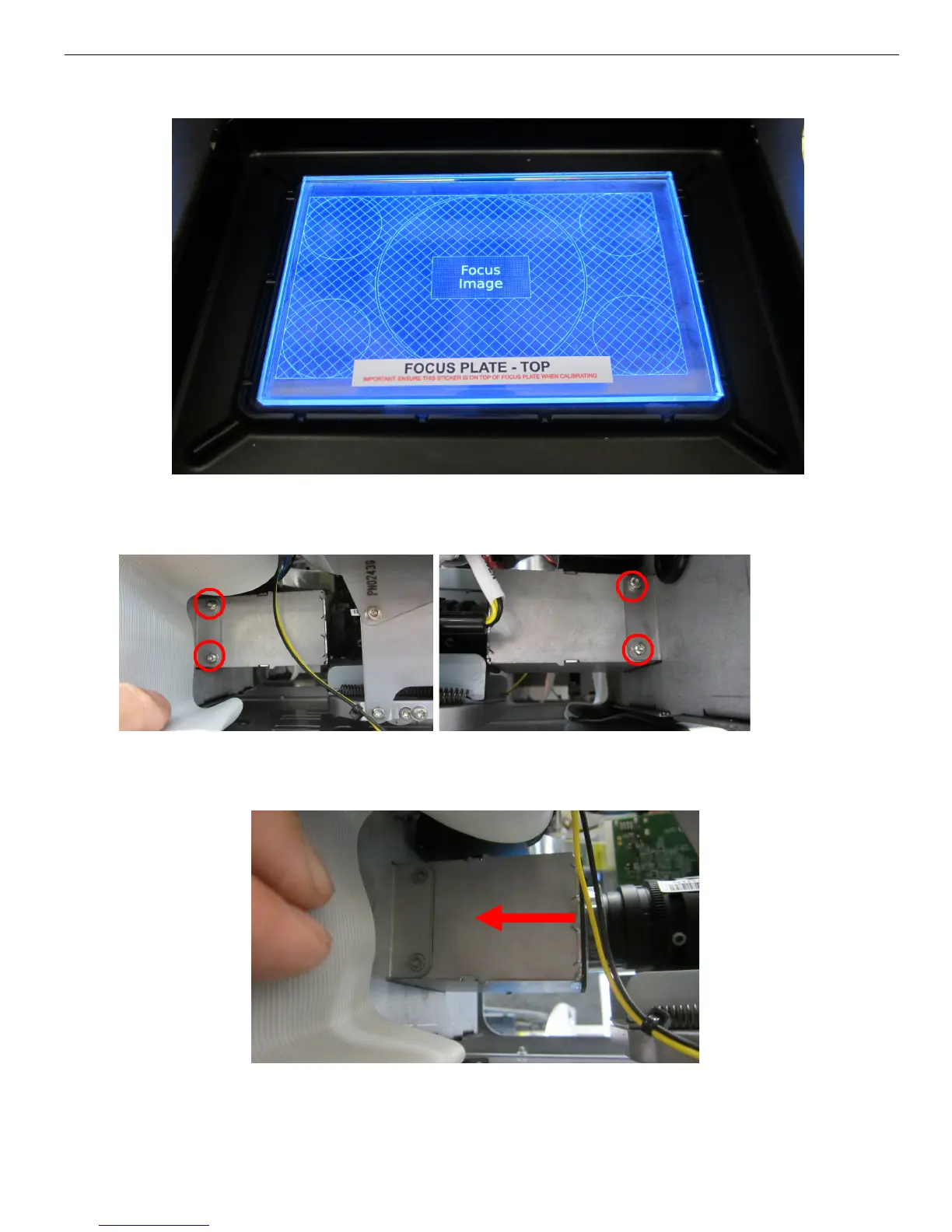

6. Remove the side panels of the machine.
7. Remove the 4 screws which hold the dust protection chamber in place.
8. Slide the dust protection chamber towards the front of the machine to access the
lens.
9. Rotate the lens with your fingers to adjust the focus.
