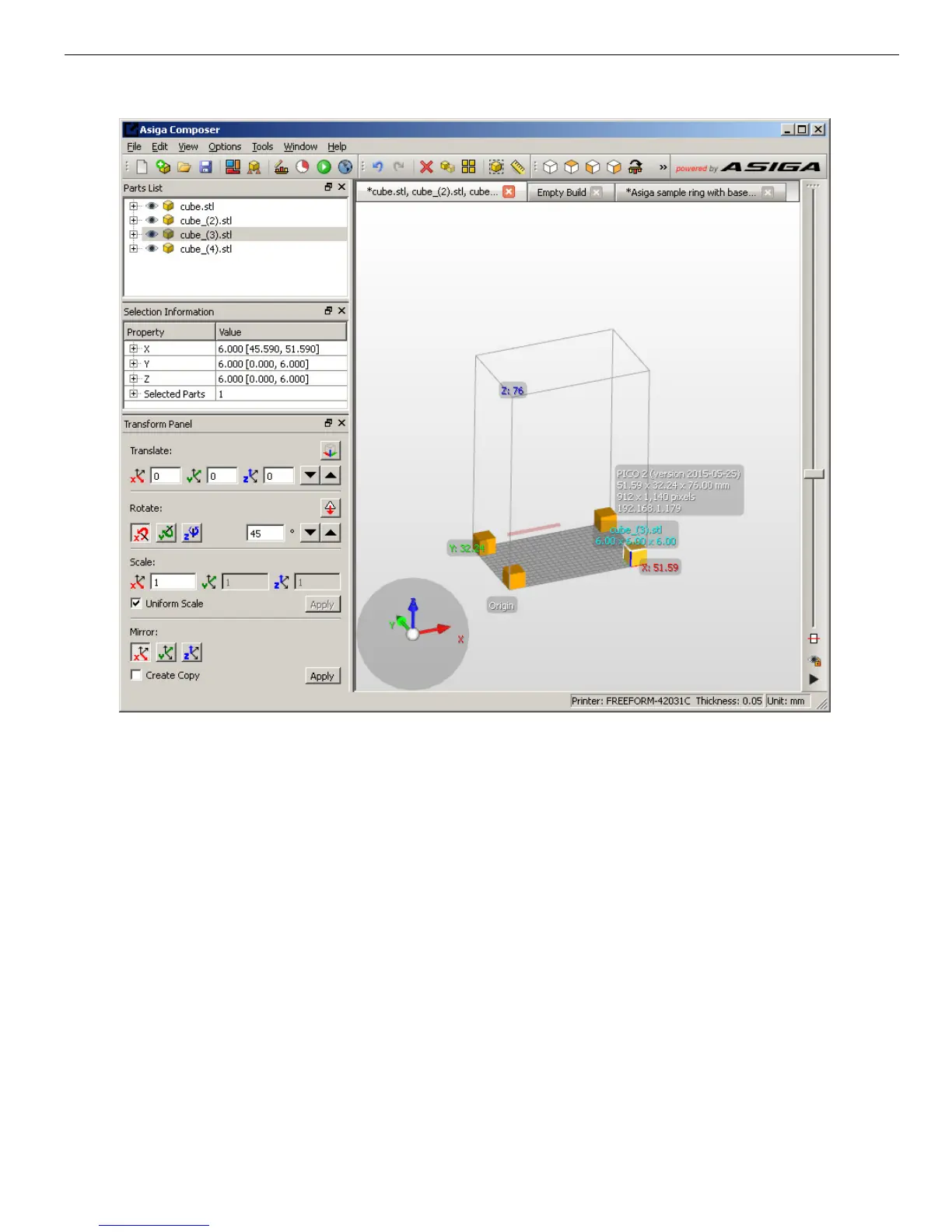

Asiga MAX User Guide
Copyright ASIGA © 2017 VERSION 1.04
The measured X and Y span values are entered into the appropriate fields and the “Save”
button is clicked to save the changes.
Note that if the “Lock XY Aspect Ratio” box is ticked the entered value for Build X will
automatically update the Build Y value and vice versa. This allows the calibration technician
to recheck measurements and possibly correct any keystone error in the projected image. If
the “Lock XY Aspect Ratio” box is unchecked, any values can be entered for the Build X
and Build Y and a square pixel is not guaranteed. Re-checking the “Lock XY Aspect Ratio”
box will recalculate either Build X or Build Y to minimize the change to either value.
Note that the Build Z span is defined by the travel of the vertical axis minus the allowed
separation distance.
System Information Tab
The System Information tab shows useful information about the printer.
