Asiga MAX - LED Power Calibration

Asiga MAX User Guide
Copyright ASIGA © 2017 VERSION 1.04

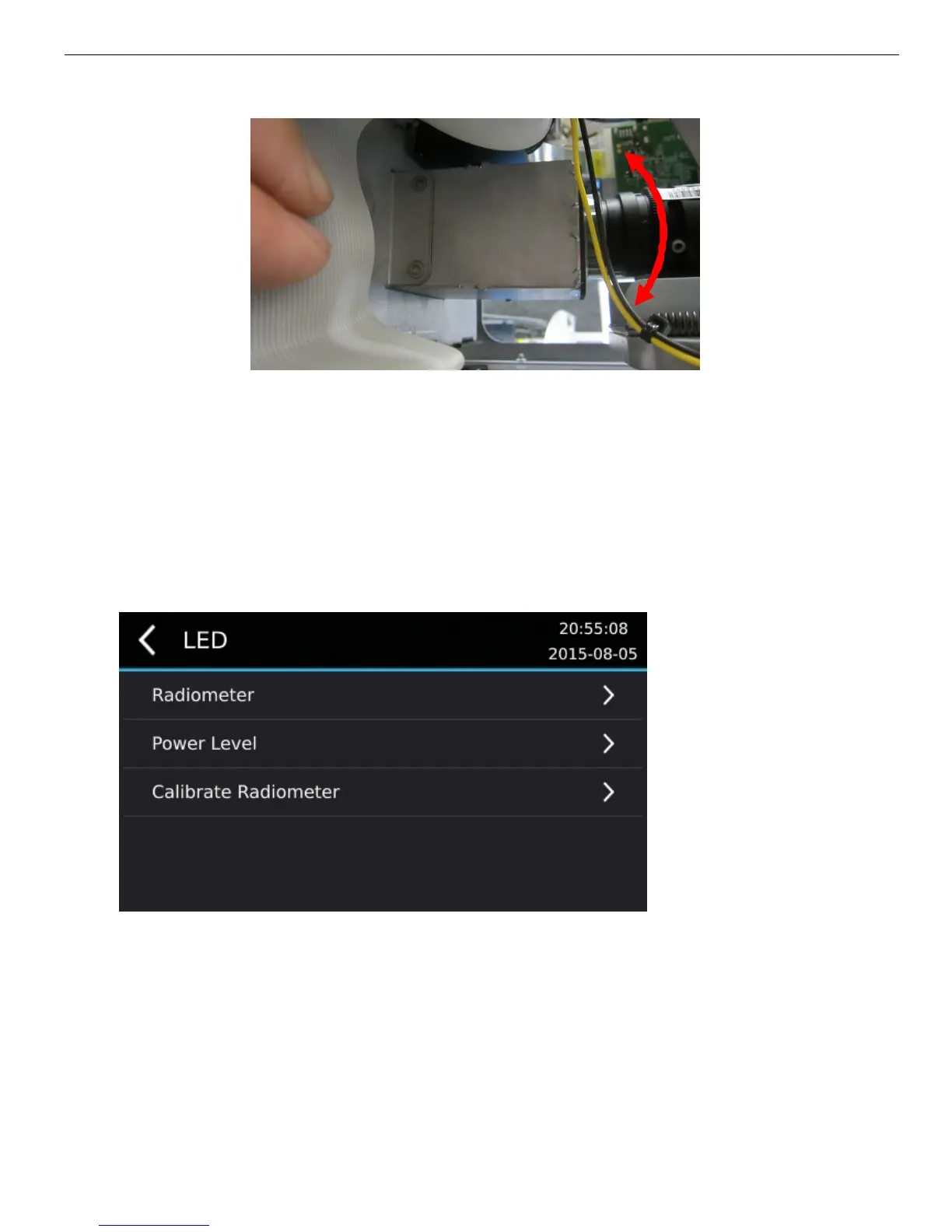

10. Reassemble the machine once the best focus is achieved.
LED
The menu item Maintenance > LED contains options for:
1. Radiometer: Reading the internal radiometer value for the LED power.
2. Power Level: Sets the Power Level of the LED.
3. Calibrate Radiometer: Calibrates the internal radiometer to an external reference.
Calibration of the internal radiometer requires an external reference radiometer sensitive to
light wavelengths in the range 350 nm to 450 nm. The image below shows a 3D printer
system and an International Light IL1700 Research Radiometer. The person performing the
calibration should wear UV safety glasses.
