Replacing panel

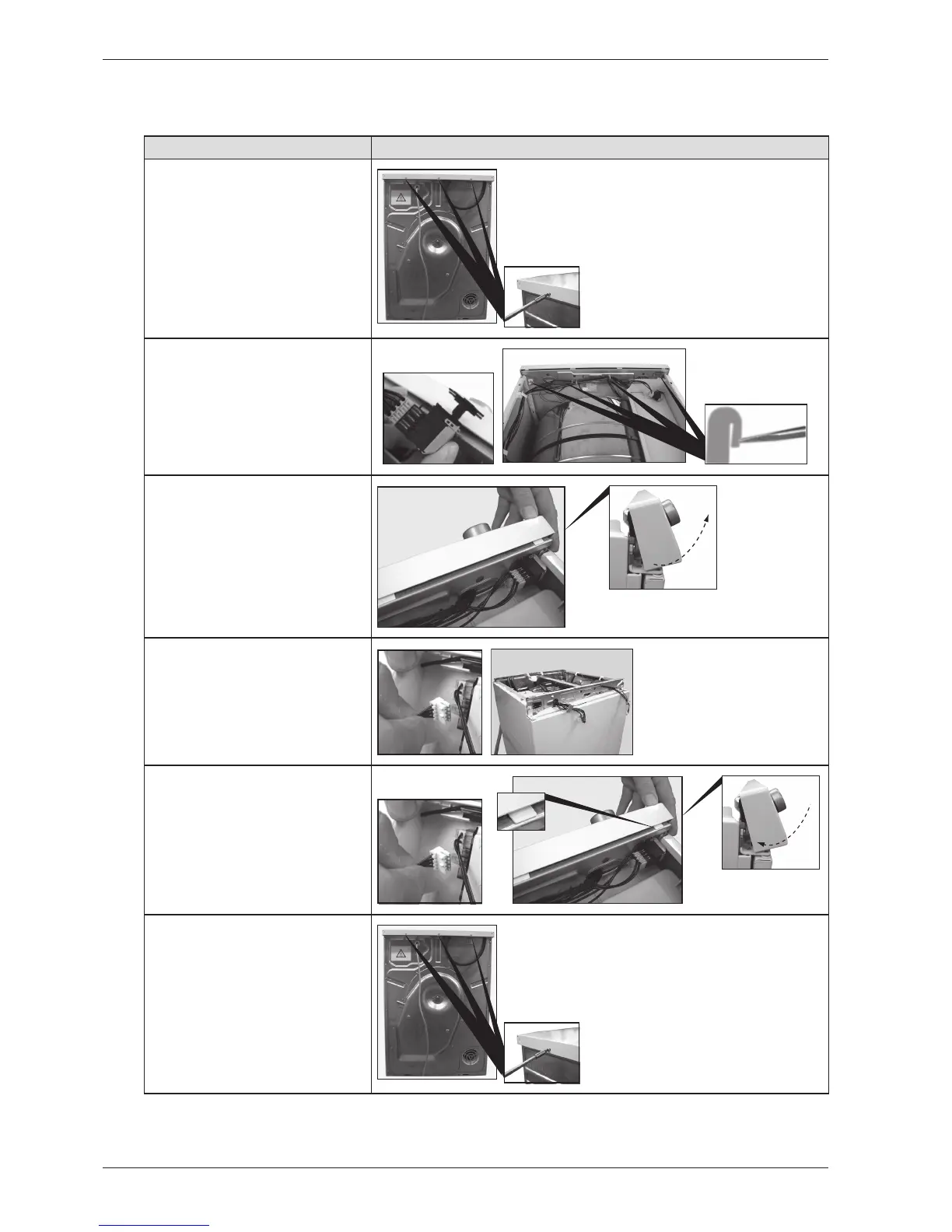

Instructions Image
1. Unscrew the top cover.
2. First, remove the main push switch.
Carefully press the catches that secure the
panel at the front beam. Release the catches
from the front member by working the panel
outwards.
3. Detach the panel by angling and pulling it
carefully outwards at the lower edge.
Note: Do not damage the wiring!
4. Carefully disconnect the wiring from the
control unit.
11. When installing the panel: First install
all wiring in the relevant locations on the
control card.
Then angle the panel outwards and place the
mounting plates in the relevant grooves in
the front frame. Angle the panel downwards
and secure it with the catches
12. Screw the top cover into place.
