V2000 User’s Manual
U-0623-0383.docx – Issue: 05 complete, approved – 17/12/15
Page 16 of 36

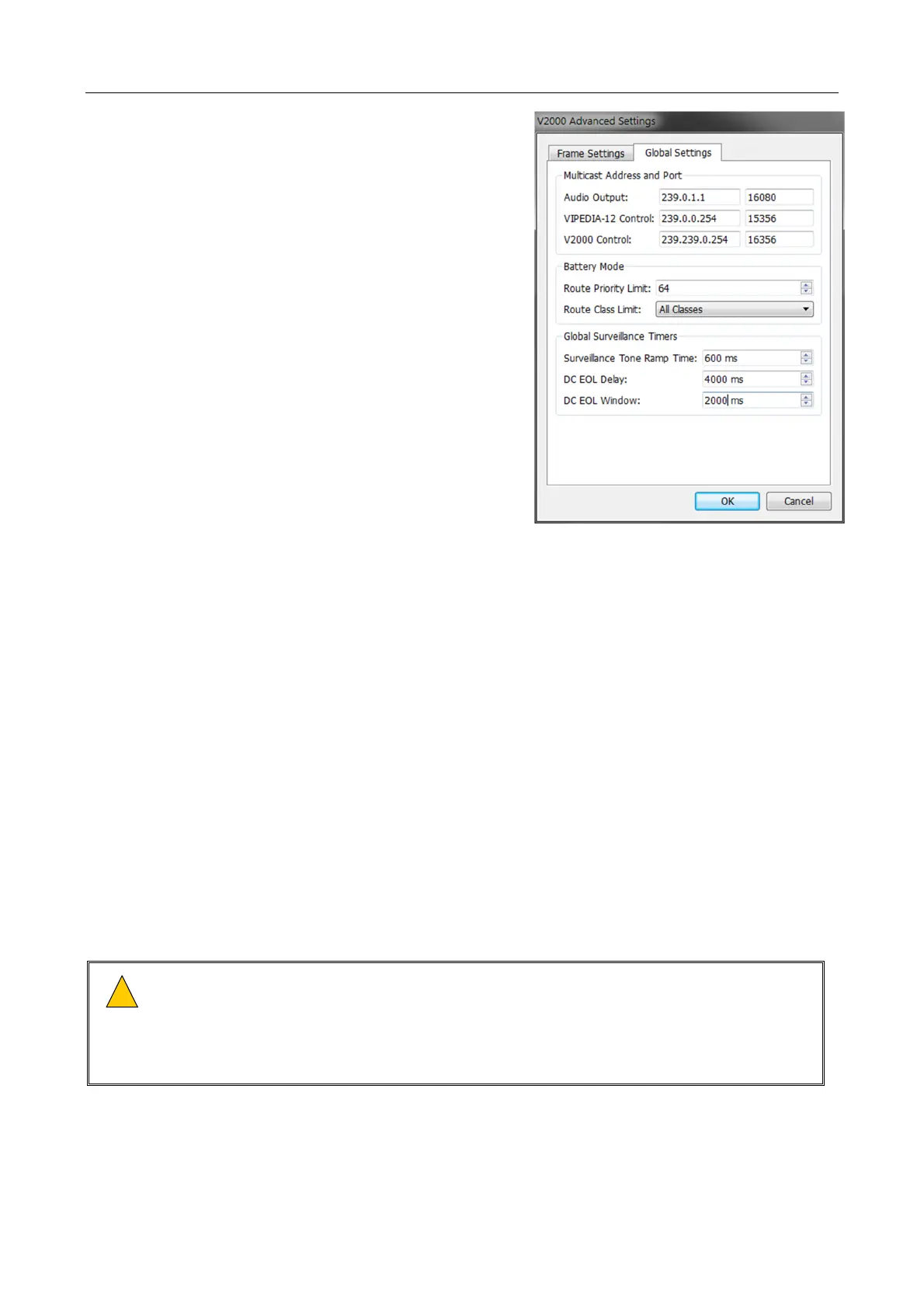

f) Select the ‘Global Settings’ Tab (see Figure 5)
g) Enter the desired settings for ‘Multicast Address and
Port’, ‘Battery Mode’, and ‘Global Surveillance Timers’.
Recommended for Global Settings:
(Applies to all V2000s)
• Audio output – 239.0.1.1 : 16080
• VIPEDIA-12 Control – 239.0.0.254 : 15356
• V2000 Control – 239.239.0.254 : 16356
• Route Priority Limit – 64
• Route Class Limit – All Classes
• Surveillance Tone Ramp Time – 600ms
• DC EOL Delay – 4000ms
• DC EOL Window – 2000ms
h) Click ‘OK’ to save any changes and close the window.
4. Configure the V2000 amplifier slots:
Configuration is different depending on the type of amplifier (working or standby):
Figure 6 shows the amplifier slot and the standby interface configuration sections.
Working:
a) Select the V2000 frame to be configured in the left-hand navigation pane.
b) Add a D500 or a D150 to the desired working amplifier slot.
c) Configure the Output Voltage, Output Power, Line Surveillance method, Output Type and
the VIPEDIA-12 Audio Output.
Standby:
a) Select the V2000 frame to be configured in the left-hand navigation pane.
b) Add a D500 or a D150 to the desired standby amplifier slot.
c) Select the type of standby interface used under the ‘Standby Management’ section.
d) Select the slot that contains the standby amplifier.
e) The amplifier will now convert to a standby.
The V2000 only allows a maximum of 2000W power to be configured and saved. The Total Frame
Power bar is displayed on the tool to assist with configuration. The bar will turn red and a warning icon
will appear on the left if the power is over-allocated
Note: If the frame is used as an external standby for another frame, the power bar will reflect this.
5. Save the System Configuration.
The configuration file will be saved in an .xml format.
PAVA System Configuration tool
V2000 advanced global settings
