ASL INTERCOM V2000 User Manual

V2000 User’s Manual
U-0623-0383.docx – Issue: 05 complete, approved – 17/12/15
Page 15 of 36
6.1 PAVA Static Configuration
6.1.1 VIPEDIA-12 Static Configuration
Refer to the VIPEDIA-12 System Configuration Tool User’s Manual for guidance.
6.1.2 V2000 Static Configuration
1. Add V2000s to VIPEDIA-12 DBB groups.
a) Right-click the VIPEDIA-12 DBB group in the left-hand navigation pane.
b) Click ‘Add’ and then ‘V2000’.
c) Add as many V2000s as required
2. Add V2000 batteries (if a battery backup system is used).
a) Right-click the V2000 in the left-hand navigation pane.
b) Click ‘Add’ and then ‘Battery’.
3. Configure the V2000 Frame Settings:
a) Select the V2000 frame to be configured in the left-
hand navigation pane.
b) Under ‘Misc. Frame Settings’ click the ‘Advanced’
button to open the ‘Advanced’ dialog box.
c) Select the ‘Frame Settings’ Tab (see Figure 4)
d) Enter the desired settings for ‘General Information’
Default settings:
• Frame ID: 1
• Frame Address and Port: 192.168.1.101 : 15356
e) Enter the desired settings for ‘Surveillance Settings’
and ‘Engineering Surveillance Settings’.
Recommended Surveillance Settings:
• Temperature Alarm (°C): 70
• Earth Leakage Detection: Enabled
• Amplifier Input Surveillance: Enabled
• Amplifier Output Surveillance: Enabled
• Output/Loop Return Frequency: Low
Recommended Engineering Surveillance Settings:
• Tone Interval: 85 s
• First Tone Duration: 3 s
• Second Tone Duration: 3 s
• Residual Current Threshold: 20 mA
Ensure a battery added to every V2000 that uses a battery backup system. An incorrect configuration
could cause damage to the V2000 hardware.
!
!

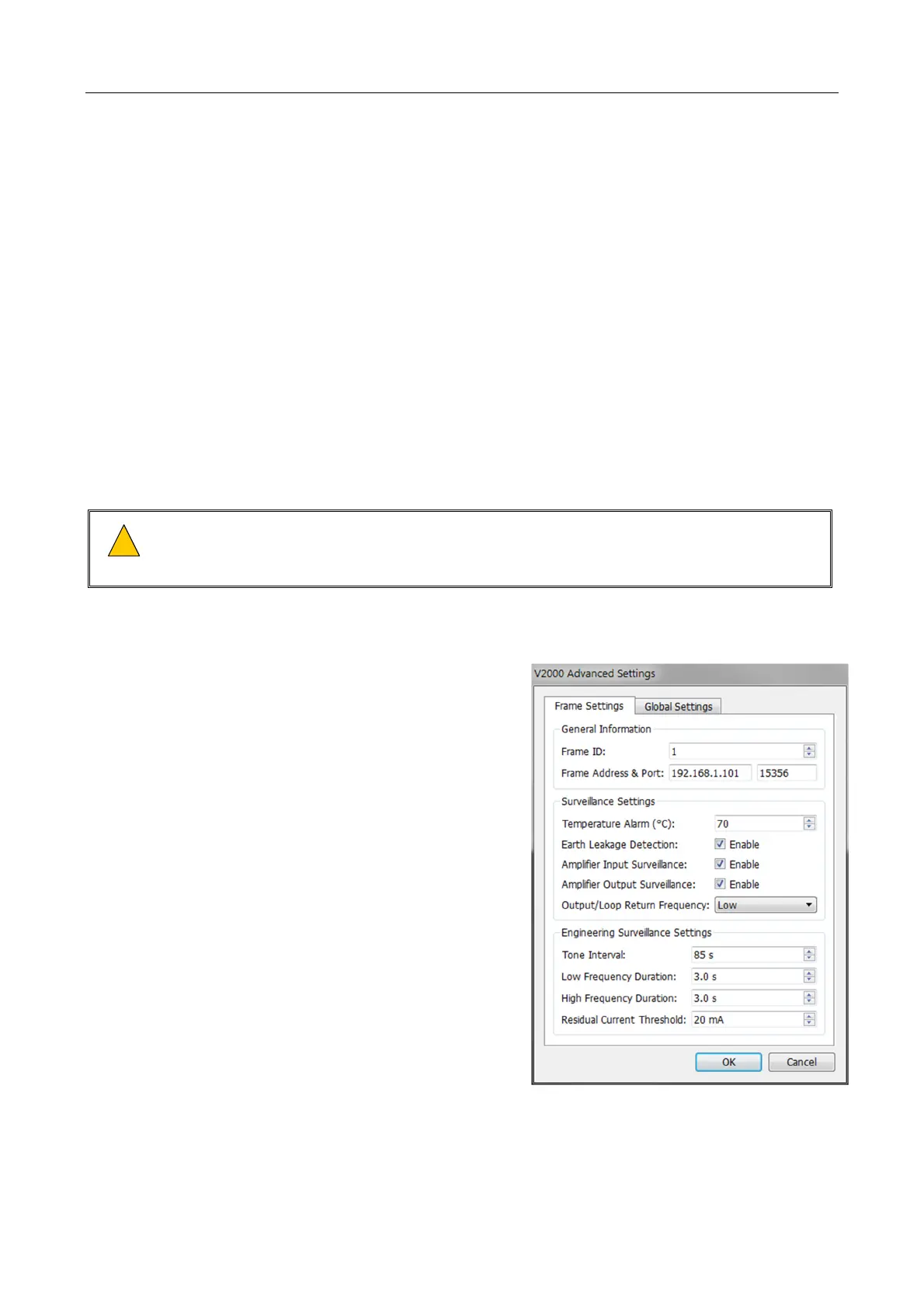

Figure
4
PAVA System Configuration tool
-
V2000 advanced frame settings
