ASL INTERCOM V2000 User Manual

V2000 User’s Manual
U-0623-0383.docx – Issue: 05 complete, approved – 17/12/15
Page 31 of 36
10 Firmware
10.1 V2000 Hardware Firmware
Hardware components and their related firmware are as follows:
V2000 Amplifier Mainframe:
• Host Firmware
• Host Bootloader (Factory programmed)
• PSU (Factory programmed)
LSZDC Surveillance Cards:
• DSP Firmware
• DSP Bootloader (Factory programmed)
• CPLD (Factory programmed)
To check the V2000 firmware versions use the V2000 Dynamic Configuration Tool. Refer to section 6.2.2 –
V2000 Dynamic Configuration Tool. (Figure 19 shows an example of the dynamic tool, with the firmware
versions displayed.)
The Dynamic tool displays:
• Frame Host Firmware
• Frame Host Bootloader
• LSZDC DSP Firmware
• LSZDC DSP Bootloader

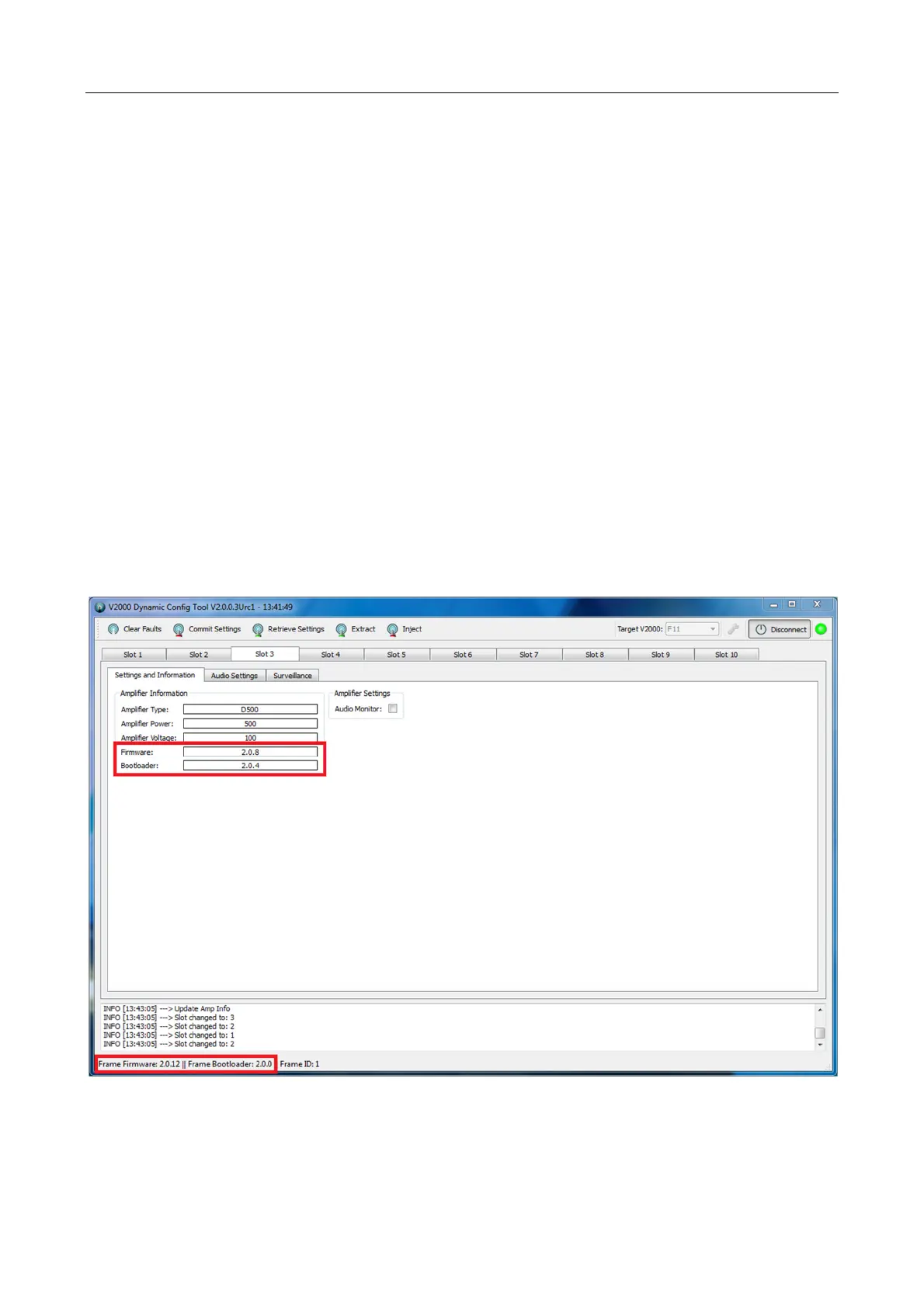

Figure
14
V2000 Dynamic Tool – V2000 firmware versions
