ASL INTERCOM VIPEDIA-12 User Manual

VIPEDIA-12 Products – Installation Guide
U-0641-0344.docx – Issue: 8 complete, approved
Page 19 of 52
⑦

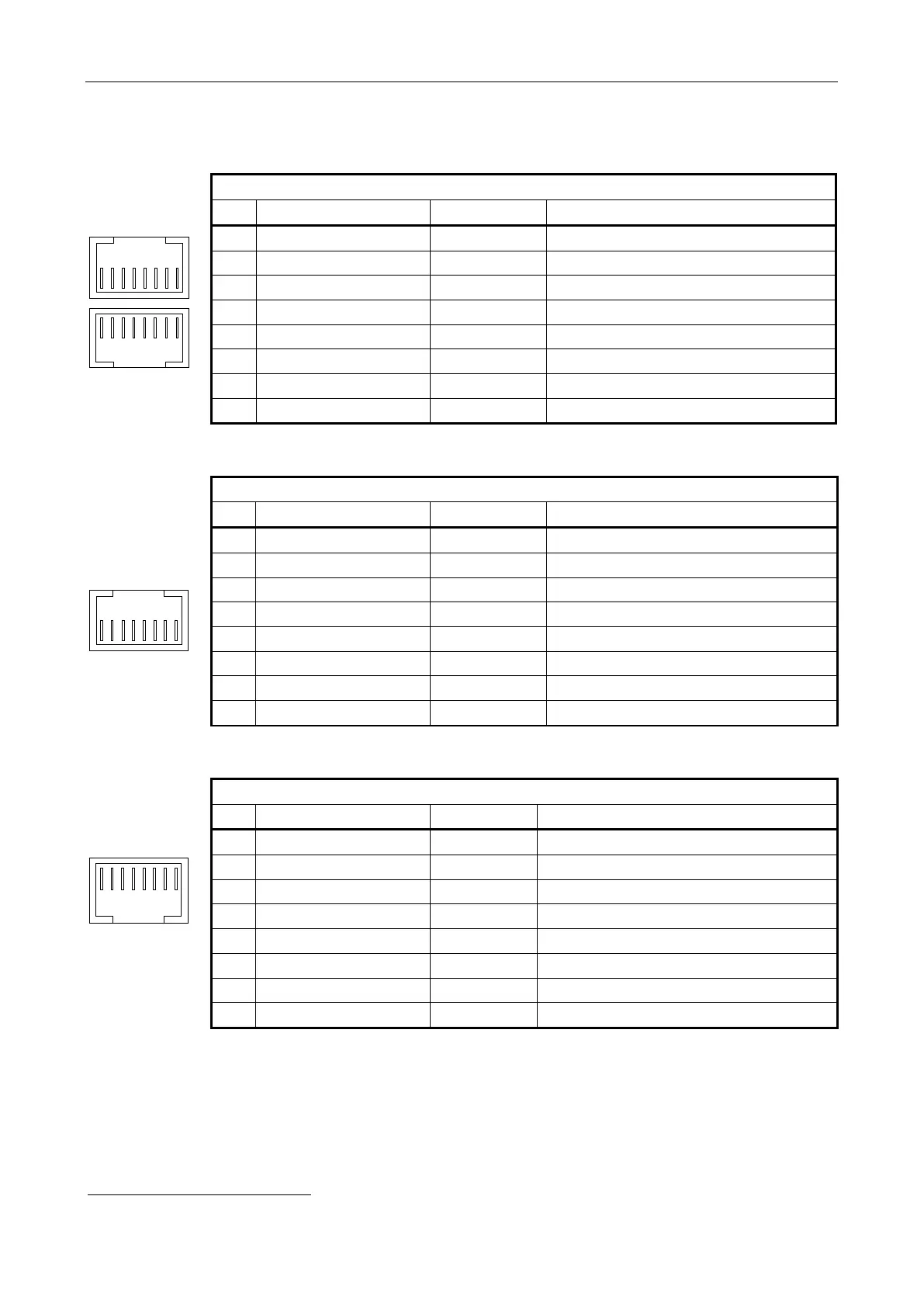

ETH1 and ETH2: 100BASE-T Ethernet Ports
ETH1
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
ETH2
ETH1 and ETH2: Standard RJ45 socket
Pin CAT5 Cable (T568B) Signal Description
1 white/orange
TRANSMIT+
100BASE-T Ethernet Transmitted Data
2 orange TRANSMIT- Same as above
3 white/green RECEIVE+ 100BASE-T Ethernet Received Data
4 blue – Not used
5 white/blue – Not used
6 green RECEIVE- Same as above
7 white/brown – Not used
8 brown – Not used
⑧
RS232: RS232 Port
RS232
1
2
3
4
5
6
7
8
RS232: Standard RJ45 socket
Pin CAT5 Cable (T568B) Signal Description
1 white/orange – Not connected
2 orange RX RS232 Received Data (115200 baud)
3 white/green TX RS232 Transmitted Data (115200 baud)
4 blue DTR Data Terminal Ready
5 white/blue GND Common Ground
6 green – Not connected
7 white/brown RTS Request To Send
8 brown CTS Clear To Send
⑨
AMP CTRL
1
: Audio-CAN and Amplifier Control Port
1
2
3
4
5
6
7
8
AMP CTRL
AMP CTRL: Standard RJ45 socket
Pin CAT5 Cable (T568B) Signal Description
1 white/orange CAN_H Controller Area Network (High)
2 orange CAN_L Controller Area Network (Low)
3 white/green GND 0 V Reference
4 blue AUDIO MON+ Audio Monitor Bus (–10 dBu nominal) (+ve)
5 white/blue AUDIO MON- As above but -ve
6 green GND 0 V Reference
7 white/brown DXP For future use
8 brown DXN For future use
1
VIPEDIA-12 Build Standard up to 1B: AUDIO-CAN
